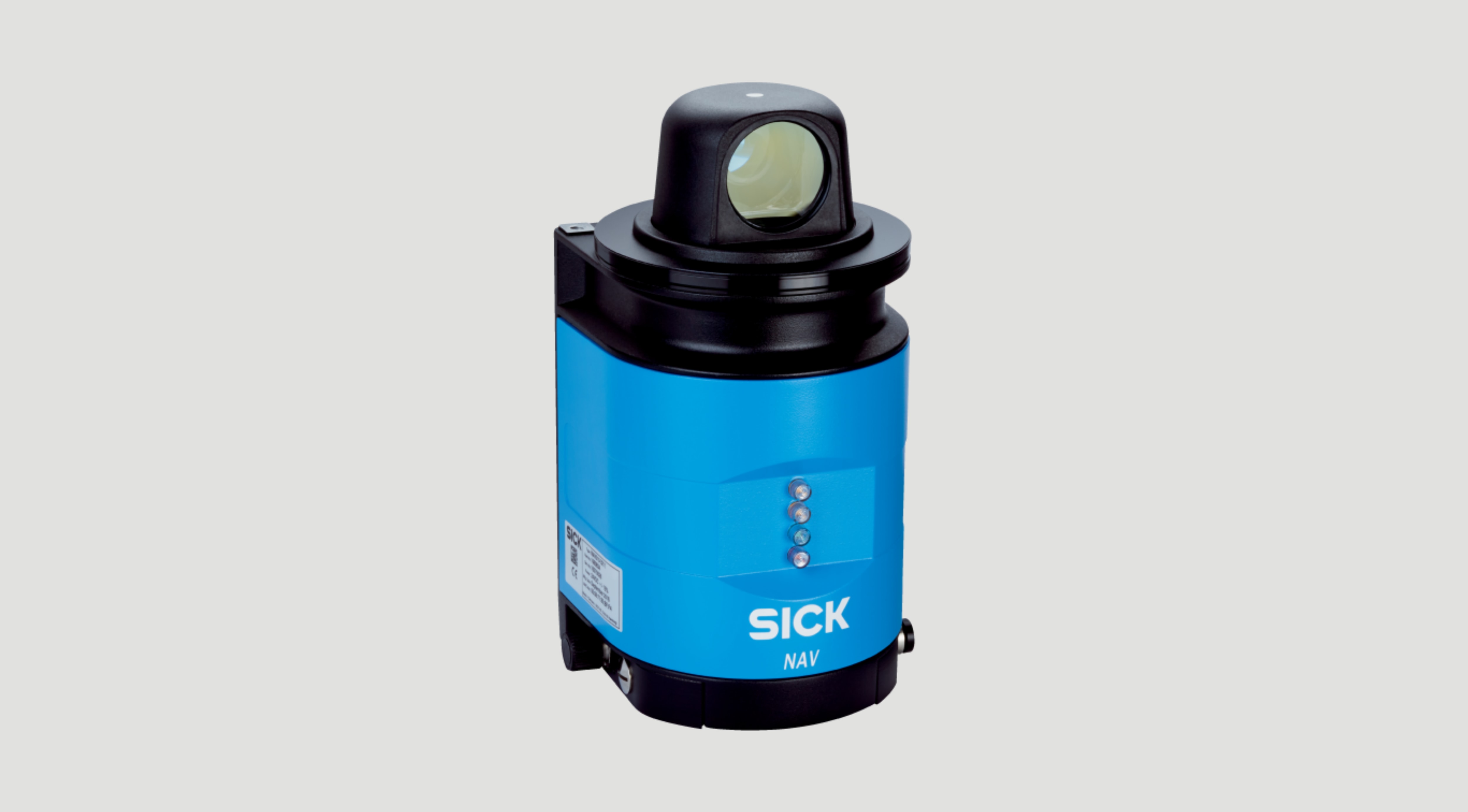

2D LIDAR SENSOR INDOOR NAV3XX

Model: NAV350-3232, NAV340-3232, NAV310-3211

Part no.: 1052928, 1060821, 1060834

Precise laser navigation for maximum efficiency

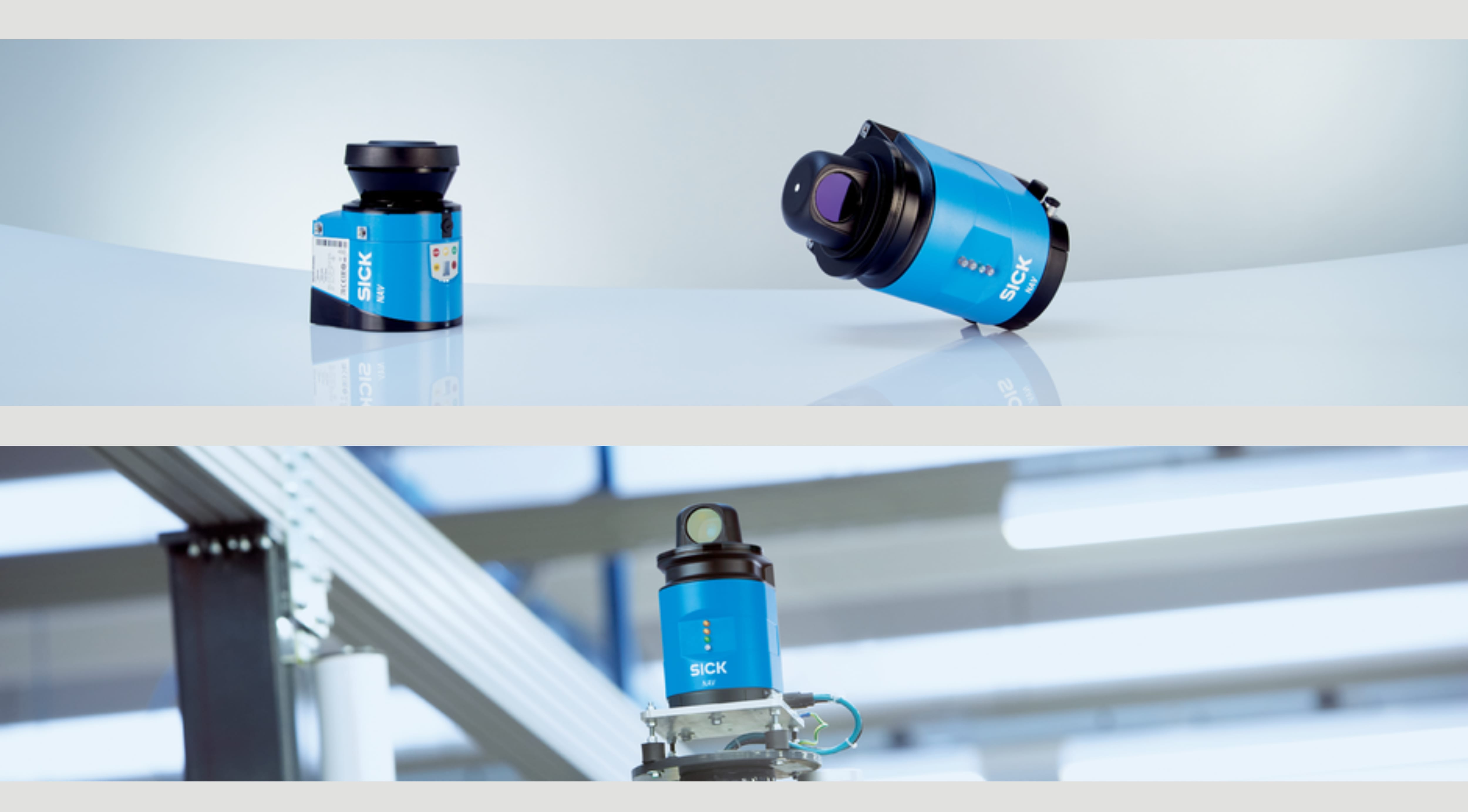

2D LIDAR SENSOR INDOOR NAV3XX

NAV series – Precise measurement of natural landmarks (contour data) right through to localization based on detected reflector positions – flexibility of today.
Reliability and flexibility – the right characteristics for effectiveness and success have been combined in the NAV product family
Reliable position determination thanks to a rugged measurement technology based on customizable data logs – the NAV product family from SICK.
NAV3xx - The right solution when you need a large scanning range and, at the same time, reliable detection of ambient data.
Hardware synchronization output ensures precise control
Long scanning range: up to 70 m on reflectors (up to 35 m on black targets)
High internal computing power and individual AGV configuration
Angular resolution of up to 0.1 degrees

download Request a quotation

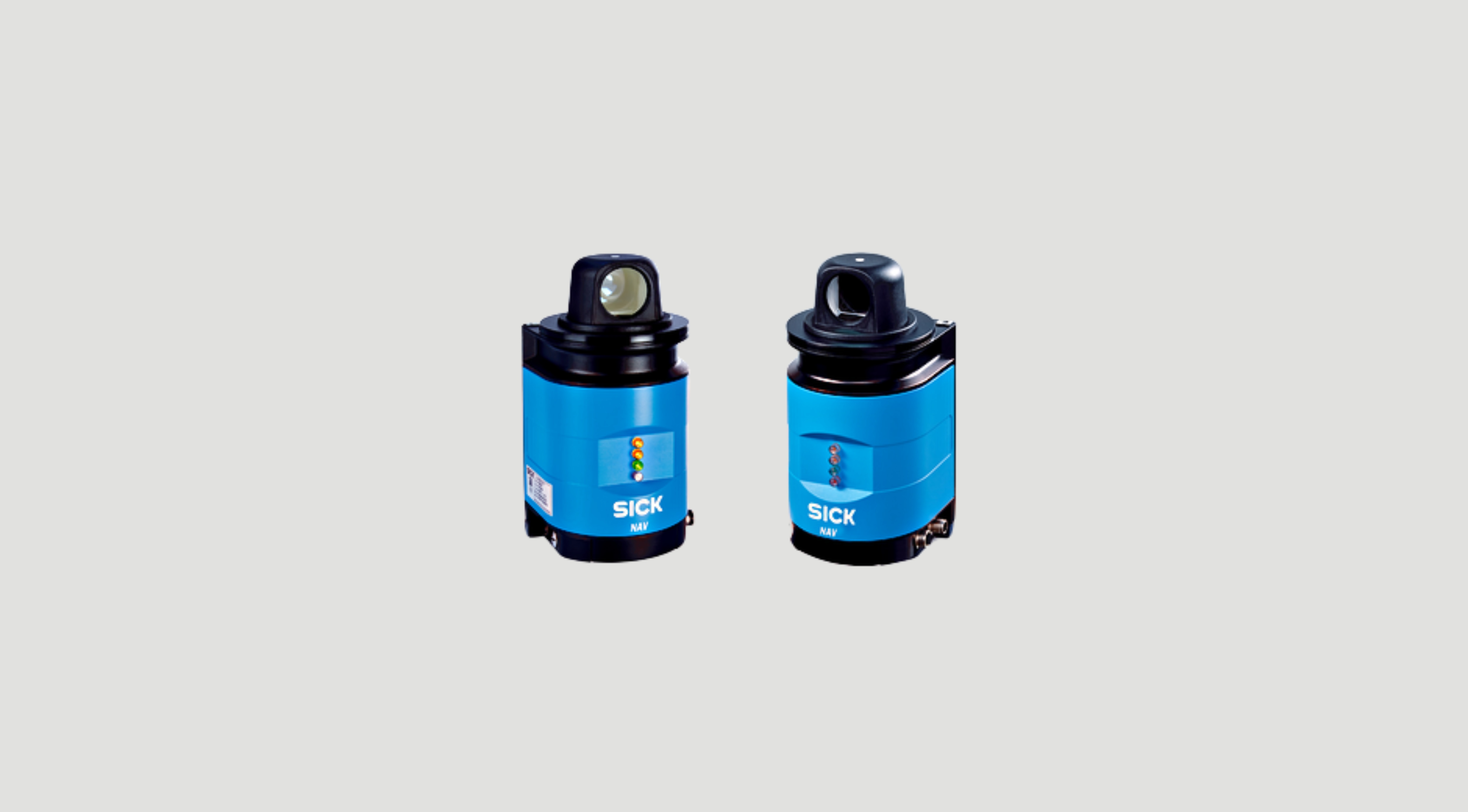

Technical Information

Precise, fast collection of spatial contour data and/or simultaneous determination of reflector data (managing up to 12,000 reflectors) in real time. NAV 2D LiDAR sensors provide highly accurate spatial contour data about distance, angle, and remission, as well as reflector data, at high speed over a scanning path of up to 360 degrees.
Integrated evaluation of measured data reduces the computing load in the vehicle computer, minimizing power consumption and reducing operating costs
High flexibility, since line guidance is also possible in areas without reflector marks, and routes can be easily modified using teach-in mode
Precise measurements in harsh industrial environments thanks to IP65 housing for indoor applications
The combination of spatial contour data and reflector data (mixed-mode navigation) enables line-guided vehicles to travel in areas where it is not possible to position reflector marks (automated truck loading or block storage areas, for example).
Hardware synchronization output ensures precise control
Long scanning range: up to 70 m on reflectors (up to 35 m on black targets)
High internal computing power and individual AGV configuration
Angular resolution of up to 0.1 degrees
Fields of applications
- Automated guided vehicles, cleaning robots and tow trucks
- Determination of system positions, absolute and relative to each other
- Location determination for mobile systems
- Contour-based navigation for fully automatic truck loading
- Deployment as permanent reference system for line-guided AGVs
- Deep stacking

Model	NAV350-3232	NAV340-3232	NAV310-3211
Working range	0.5 m - 250 m 0.5 m - 70 m on reflectors	0.5 m - 250 m 0.5 m - 70 m on reflectors	0.5 m - 250 m
Aperture angle	360°
Enclosure rating	IP65
Color	Light blue (RAL 5012)
Integrated application	Navigation	-	-
Connection type	3 x M12 male connector/female connector
Scanning frequency	8 Hz, ± 5 %		5 Hz - 20 Hz
