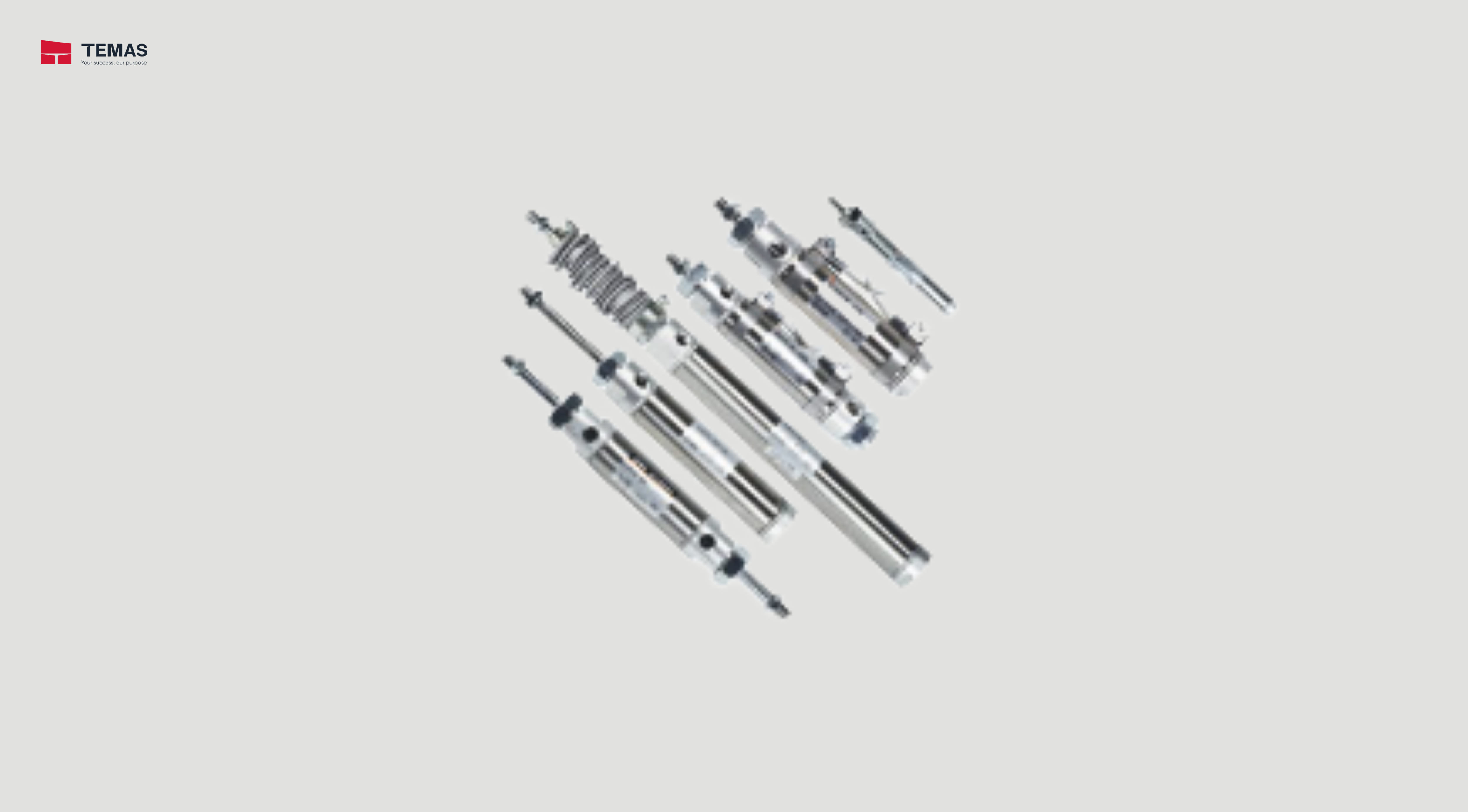

Air Cylinder: Standard Double Acting, Single/Double Rod Series NCM

Now available in 8 different bore sizes, 7/16" to 2".
5 Actuation options available

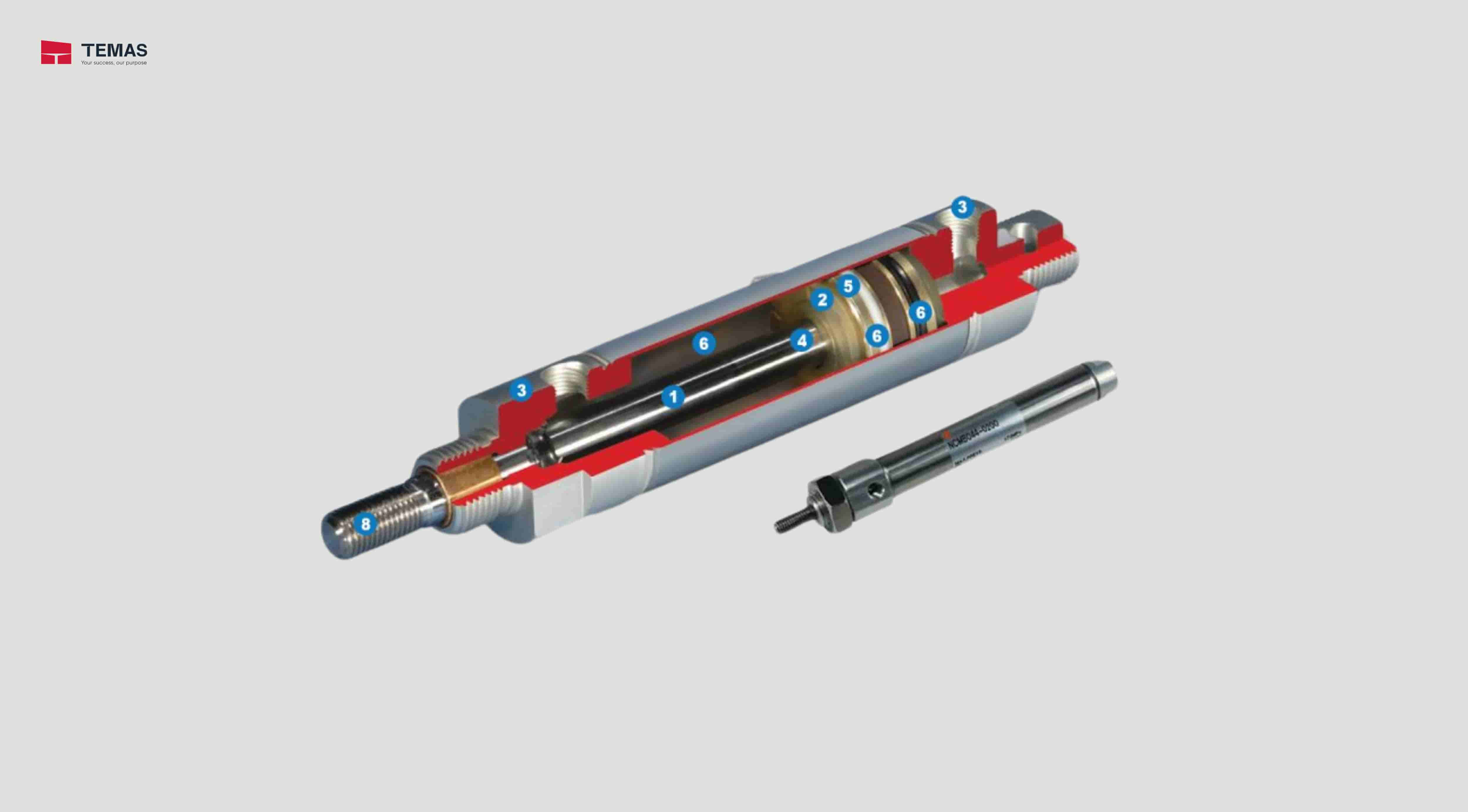

Chrome plated carbon steel piston rod improves corrosion resistance. Stainless steel 304 is available for further protection.
Available bumper for increased kinetic energy absorption, increased life cycles, and decreased noise.
Piston is crimped to rod to achieve tighter clearances and reduce piston rod deflection.
Chromated aluminum piston improves corrosion resistance. Magnetic actuated limit switches are available as a standard option.
Seal, wear ring, and polished stainless steel tube work together to absorb side load and decrease overall friction, ensuring long lasting service life. (Wear ring used on 3/4" bore and larger.)

Specifications	NCM
Bore size (inch)	044 (7/16")	056 (9/16")	075 (3/4")	088 (7/8")	106 (1 -1/16")	125 (1-1/4")	150 (1-1/2")	200 (2")
Fluid	Air
Maximum operating pressure	250 PSI / 1.7 MPa
Minimum operating pressure	8 PSI / 0.06 MPa
Ambient and fluid temperature	40 to 140°F / 5 to 60 °C
Piston speed	No bumper: 2 to 20 in/sec (50 to 500 mm/sec) Bumper: 2 to 30 in/sec (50 to 750 mm/sec)
Bumper	Optional (No additional charge on 7/8" and 1-1/4" bore)
Lubrication	Not required (Pre-lubricated at factory)
Mounting	B, C, E, R (see Note)
