Technical Information

Type Series Action Bore size (mm)

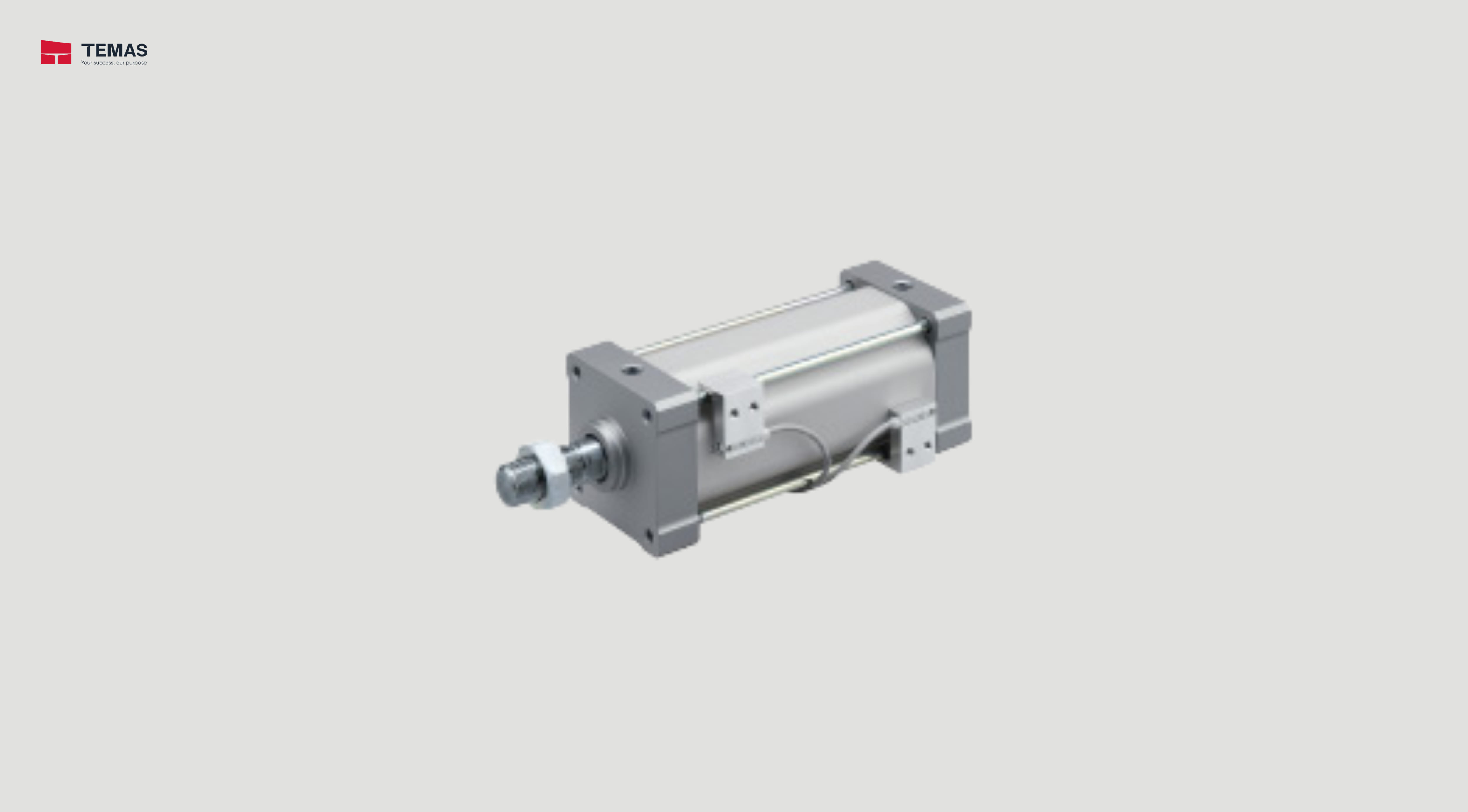

Standard MB-X3155 Double acting single rod 40, 63
Specifications
MB-X3155
 Bore size
40 (Equiv. ø40 piston area)  63 (Equiv. ø63 piston area)
Proof pressure 1.0 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.05 MPa
Ambient and fluid temperature

5 to 60°C

Lubrication

Not required (Non-lube)

Piston speed 50 to 500 mm/s
Stroke length tolerance 2.0 mm
0 mm
Cushion Non-adjustable air cushion + rubber bumper
Port size
Rc1/8
Stroke 50 to 250 mm (25 mm increments)
Mounting None (Basic type only)
Allowable kinetic energy 2J
