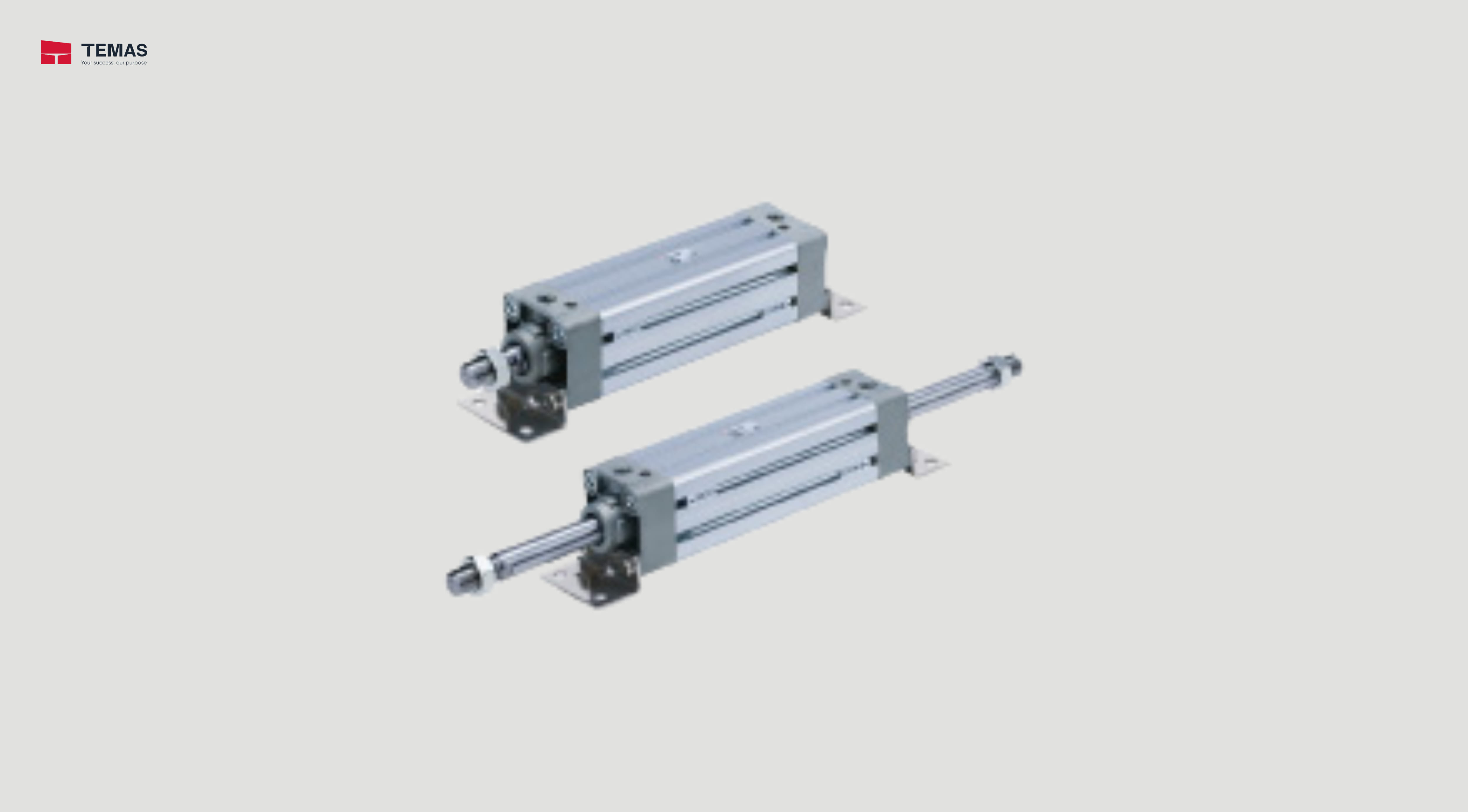

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MB1-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |
| Standard | MB1W-Z | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
| Non-rotating rod | MB1K-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| Specifications | MB1, MDB1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Bore size (mm) | 32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
| Action | Double acting, Single rod | |||||||
| Fluid | Air | |||||||
| Proof pressure | 1.5 MPa | |||||||
| Maximum operating pressure | 1.0 MPa | |||||||
| Minimum operating pressure | 0.05 MPa | |||||||
Ambient and fluid temperature |
Without auto switch: –10 to 70°C (No freezing) |
|||||||
| Lubrication |
Not required (Non-lube) |
|||||||
| Piston speed | 50 to 1000 mm/s | |||||||
| Stroke length tolerance | Up to 250: +1.0, 251 to 1000: +1.4, 1001 to 1500: +1.8, 1501 to 2000: +2.2 , 2001 to 2300: +2.6 |
|||||||
| Cushion | Air cushion or Rubber bumper | |||||||
| Port size (Rc, NPT, G) | 1/8 | 1/4 | 3/8 |
1/2 |
||||
| Mounting | Basic, Axial foot, Rod flange, Head flange Single clevis, Double clevis |
|||||||
