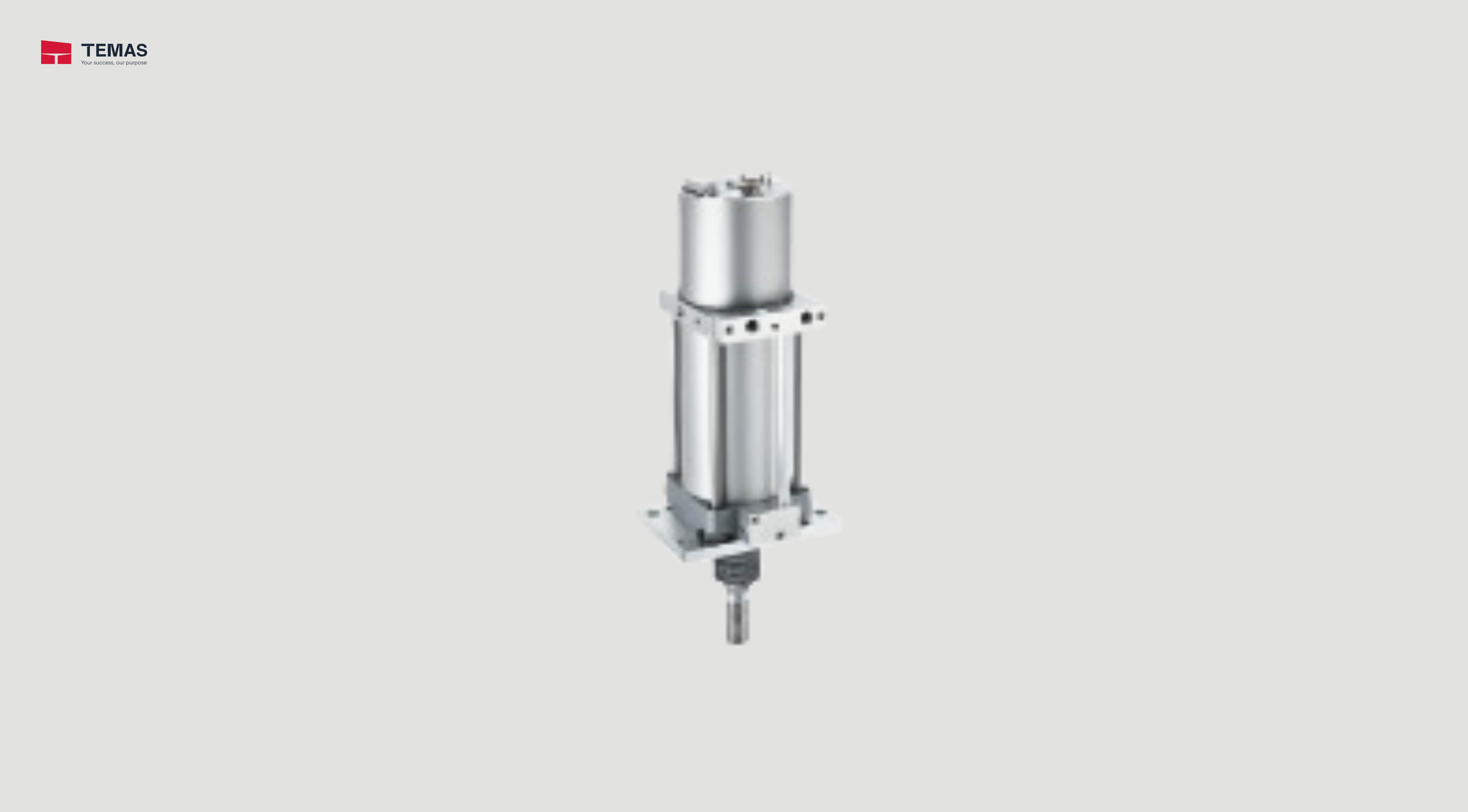

| Specifications | IN-777 |
|---|---|
| Action | Double acting, Single rod |
| Fluid | Air |
| Compressed air filtration | 0.3 μm or less |
| Proof pressure | 1.2 MPa |
| Operating pressure range | 0.55 to 0.8 MPa |
| Positioning repeatability | ±0.5 mm or less |
| Average speed | Refer to Table 1 . |
| Ambient temperature |
Silicone rubber material with or without rod boot: -20°C to 60°C (No freezing) Nylon tarpaulin with rod boot: -10°C to 60°C (No freezing) |
| Fluid temperature | -20°C to 60°C (No freezing) |
| Operating humidity | 35 to 85% (No condensation) |
| Enclosure | IP67 |
| Standards | CE, UKCA, RoHS |
| Weight | Refer to Table 2 . |
| Lubrication | Non-lube |
| Mounting orientation | Vertical downward/Vertical upward |
| Vibration resistance |
Total amplitude or acceleration: 1.5 mm or 3 G |
| Vibration frequency: 5 to 100 Hz | |
| Vibration applying direction: 3 directions (X, Y, and Z) | |
| Sweep time/cycle: 12 min/10 cycles | |
| Impact resistance |
Acceleration: 15 G |
| Pulse applying time/waveform: 11 ms/Sine wave | |
| Pulse applying direction: 3 times in each direction (X, Y, and Z axes) | |
| Allowable lateral load | Refer to Table 3 . |
| Theoretical output/Work load | Refer to Table 4 . |
| Power supply connector (body) | M23 19-pin connector (Male): Refer to Table 5 . |
