This is the controller of the easy operation type which attached our original temp. control program.
Model: IMPACTIII TS-711
Model No. | TS-711 | |
Weight | 2kg | |
Power requirement | AC100V – 240V ± 10%, 50/60Hz | |
Power consumption | 30W+ (Heater capacity) | |
Working ambient temperature | 0 - 50°C (No condensation) | |
Working environment | No corrosive gas | |
Control system | 32-bit micro-computer | |
Number of control axes | 1 control | |
Number of programs | 31 | |
Programming system / Temp setup | Panel key, RS232C | |
Operating sequence | Fixed | |
Temperature control system | PID method | |
Temperature setting range | 0 - 500°C (32 - 932°F) | |
Setting value | Solder feeding amount : 0~99.9mm or 0~999mm | |
Solder feeding speed: 0~99.9mm/sec | ||
Timer: 0~9.99sec or 0~99.9sec | ||
Control signal | *Input | Start, Stop, Cleaning, Reset |
Slide end , Manual solder feeding, standby temp release, iron down | ||
Selection of soldering conditions (4-bit) | ||
Output | Standby, Under operation, Solder clogging error, Solder shortage error | |
Temp. abnormal. Blow SOL, ACK, Iron upper LS, Iron lower LS | ||
Under standby temp., Management of tip life, LS over time | ||

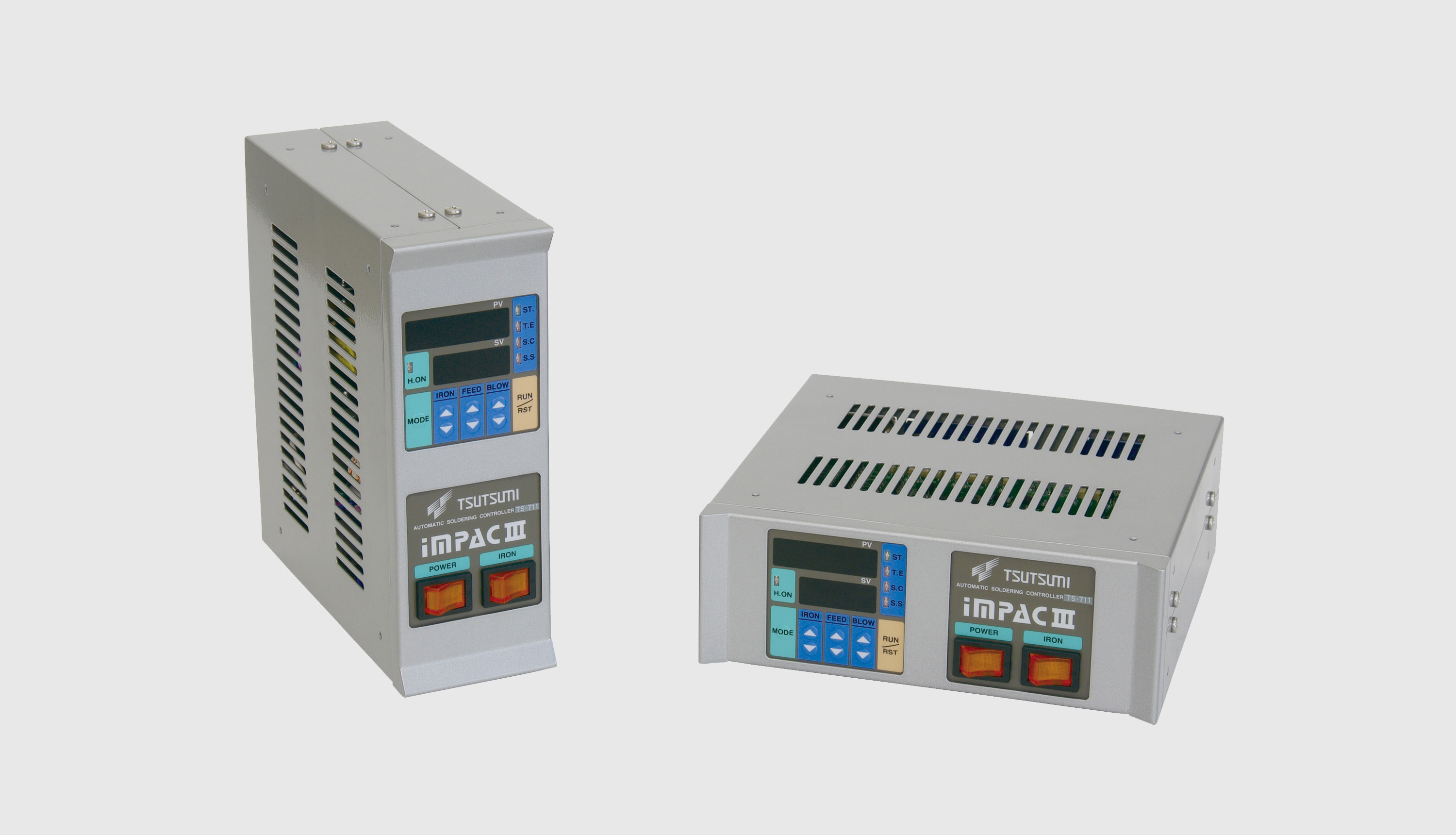

Direction of installation | Vertical-V, Horizontal-H |
