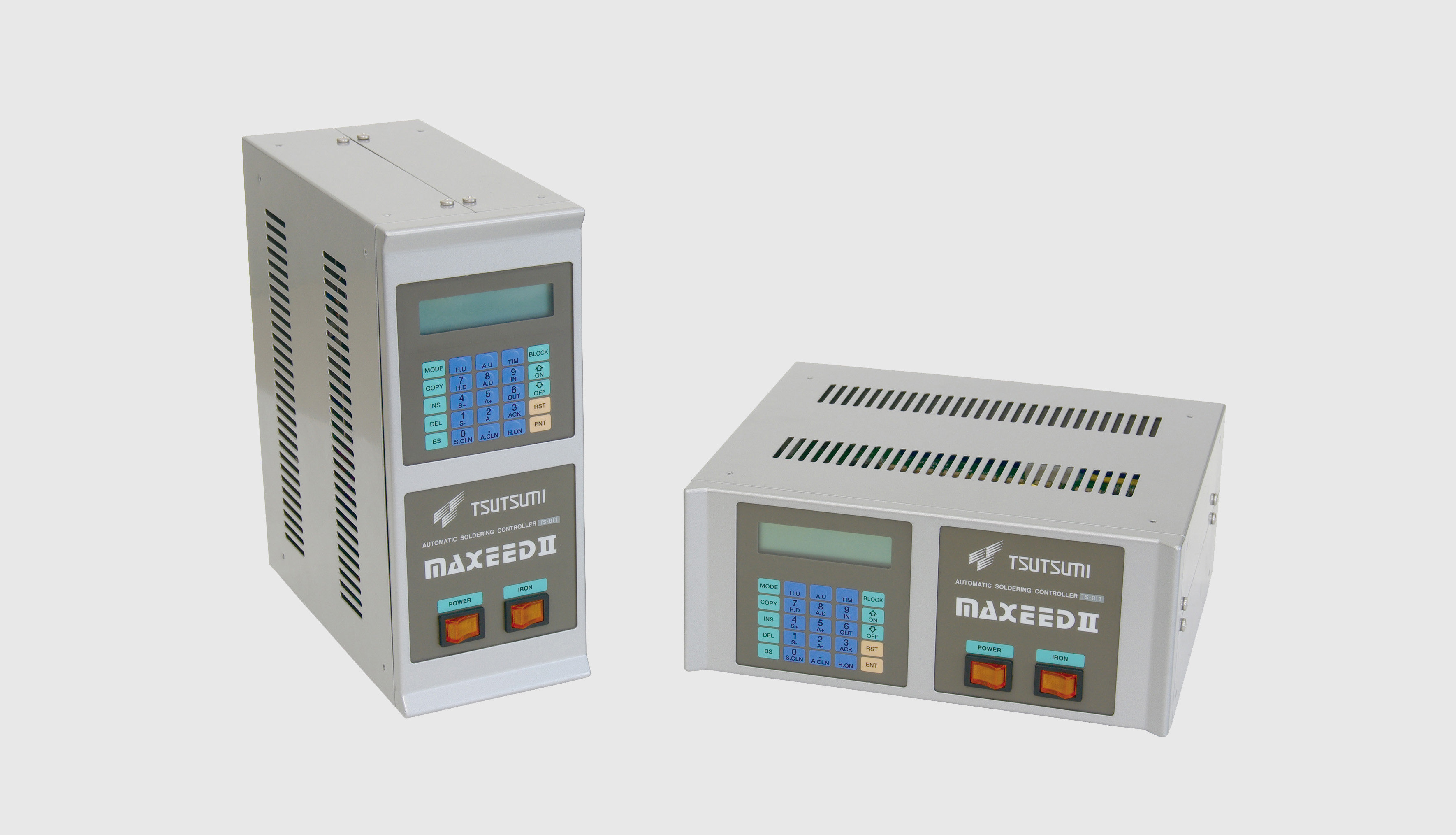

This is the controller of the multifunctional type which attached our original temp. control program.
Model: MAXEEDII TS-811
Model No. | TS-811 | |
Weight | 3kg | |
Power requirement | AC100V – 240V ± 10%, 50/60Hz | |
Power consumption | 50W+ (Heater capacity) | |
Working ambient temperature | 0 - 40°C (No condensation) | |
Working environment | No corrosive gas | |
Control system | 32-bit micro-computer | |
Number of control axes | Simultaneous 2-axis (Solder feeding, AUX side) | |
Number of programs | 511 | |
Programming system / Temp setup | Panel key, RS232C | |
Operating sequence | Programmable (Sequencing function included) | |
Temperature control system | PID method | |
Temperature setting range | 0 - 500°C (32 - 932°F) | |
Setting value | Solder feeding amount: 0~99.9mm | |
Solder feeding speed: 0~99.9mm/sec | ||
AUX side Solder feeding amount: 0~99.9mm | ||
AUX side Solder feeding speed: 0~99.9mm/sec | ||
Timer: 0~9.99sec | ||
Commands | H.U, H.D, S+, S-, S.CLN, A.U, A.D, A+, A-, A.CLN, TIM, IN, OUT, ACK, H.ON | |
Control signals | (Input) | Selection of soldering conditions (9bit binary), Standby temp release |
Start, Emergency stop, Error reset, Iron up/down, AUX side up/down | ||
Solder feeding, solder rewinding, AUX side solder feeding, AUX side solder rewinding, Slide end | ||
General purpose (IN1~4) | ||
(Output) | Standby, under operation, ACK, solder shortage error, solder clogging error | |
Temp. abnormal. LS over time error, Under standby temp | ||
Outputs for tip life management, Outputs for tip life management at AUX side, iron upper limit | ||
Iron lower limit, Iron upper limit at AUX side, Iron lower limit at AUX side | ||
AUX side under blowing, general purpose (OUT 1~4), option monitor (ʶ) | ||
Direction of installation | Vertical-V, Horizontal-H |
