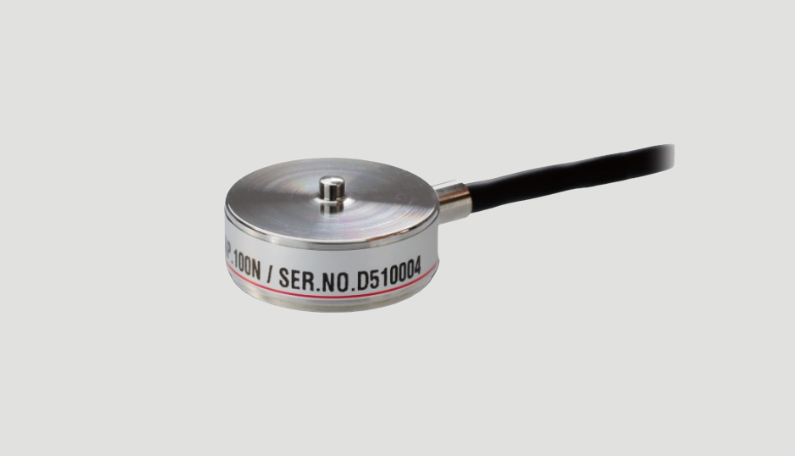

Compact compression type loadcell from Unipulse

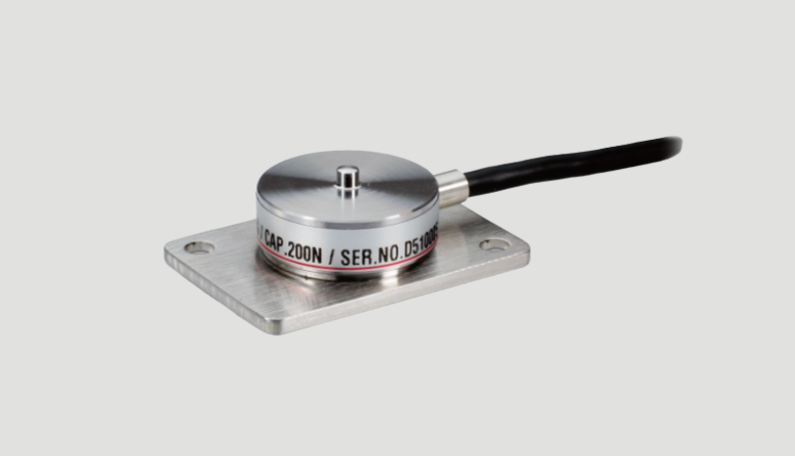

Model: UNLRS-100N, UNLRS-100N-FG, UNLRS-200N, UNLRS-200N-FG
Model | UNLRS-100N | UNLRS-100N-FG | UNLRS-200N | UNLRS-200N-FG | Unit |
Rated capacity (R.C.) | 100 | 200 | N | ||
Rated output (R.O.) | 1±20% |
mV/V | |||
Safe overload | 150 |
%R.C. | |||
Safe overload | ±20 | %R.O. | |||
Non-linearity | 0.3 | %R.O. | |||
Hysteresis | 0.3 | %R.O. | |||
Repeatability | 0.1 | %R.O. | |||
Compensated temperature range | 0 to +60 |
℃ | |||
Safe temperature range | -10 to +60 | ℃ | |||
Temperature effect on zero | 2.0 | %R.O./10℃ | |||
Temperature effect on span | 1.0 | %R.O./10℃ | |||
Input resistance | Approx. 350 | Ω | |||
Output resistance | Approx. 350 | Ω | |||
Recommended excitation voltage | 2.5 | V | |||
Maximum excitation voltage | 6 | V | |||
Insulation resistance(DC50V) | 1000 or more | MΩ | |||
Cable |
φ3 4-conductor color shield cable. Length 3m. |
||||
Cable color code | +EXC:Red +SIG:Green -EXC:White -SIG:Black SHIELD:Yellow |
||||
Loadcell material | Stainless steel | ||||
Deflection at rated | 0.015 | mm | |||
Natural frequency | 21 | 25 | kHz | ||
Weight | 5 | 18 | 5 | 18 | g |
