COMPACT CYLINDER SMC NCQ8

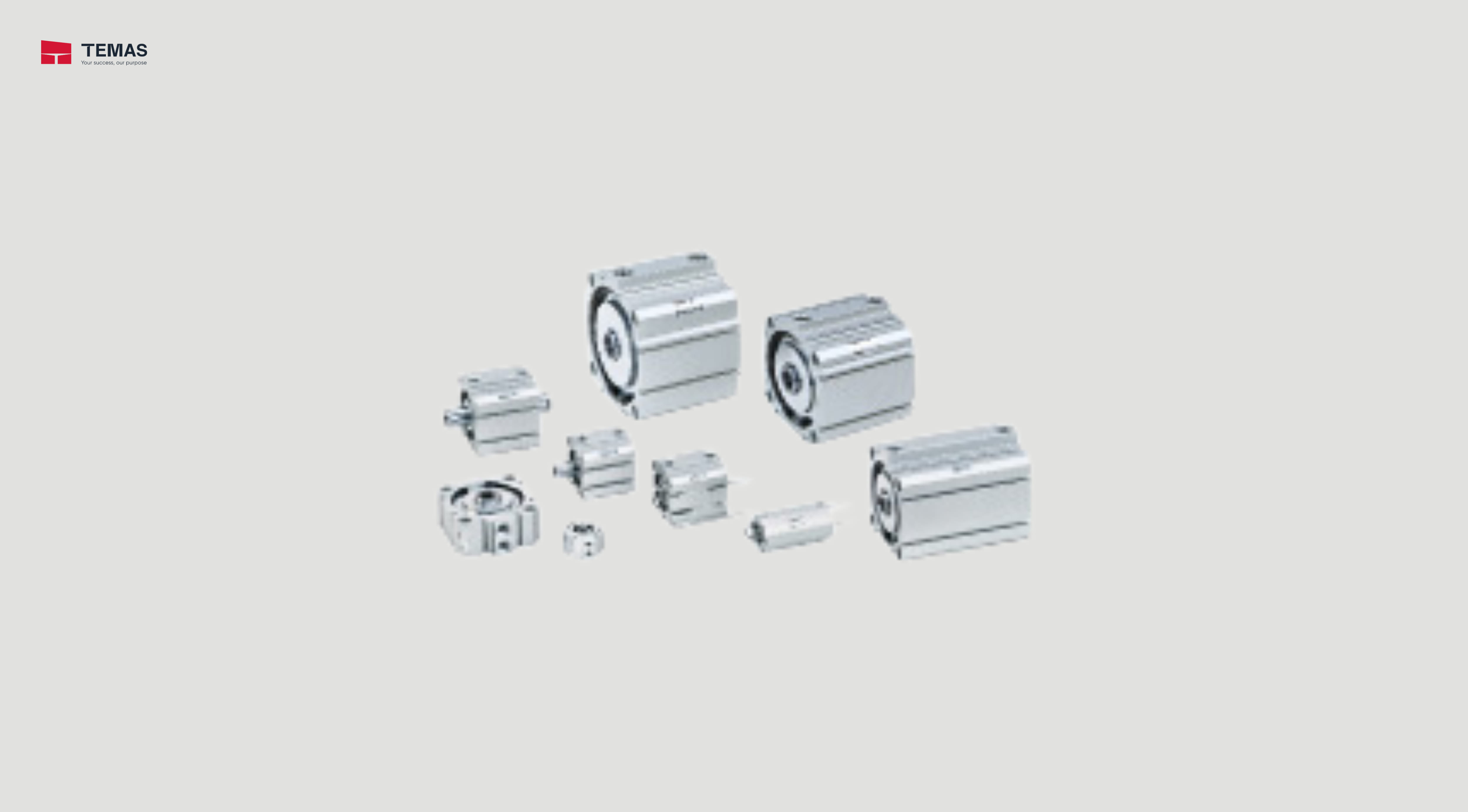

Compact Cylinder Double Acting, Single Rod SMC NCQ series.

Bore size: 056(9/16”), 075(3/4”), 106(1 1/16”), 150(1 1/2”), 200(2”), 250(2 1/2”), 300(3”), 400(4”).

Technical Information

Specifications NCQ8
Bore size 056(9/16") 075(3/4") 106(1 1/16") 150(1 1/2") 200(2") 250(2 1/2") 300(3") 400(4")
Piping size #10-32UNF #10-32UNF NPT1/8 NPT1/8 NPT1/8 NPT1/4 NPT1/4 NPT3/8
Type Pneumatic (Non-lube)
Action Double acting, Single rod
Fluid Air
Proof pressure 300PSI (2.1MPa)
Maximum operating pressure 200PSI (1.4MPa)
Minimum operating pressure 11PSI
(0.07MPa)		 8PSI (0.05MPa)
Ambient and
fluid temperature		 Without auto switch 15 to 150°F(-10 to 65°C) (No freezing)
With auto switch 15 to 140°F(-10 to 60°C) (No freezing)
Cushion Rubber bumper (C)
Rod end thread Female thread
Rod end thread tolerance ANSI/ASME B 1.1-1989
Stroke tolerance 0 to +0.04 in (+1.0mm)
Mounting Through-hole (B), Both ends tapped (A), Clevis, SCH (E,M,N)
Piston speed 2 to 20in/sec (50 to 500mm/s) 2 to 11.8in/sec
(50 to 300mm/s)
