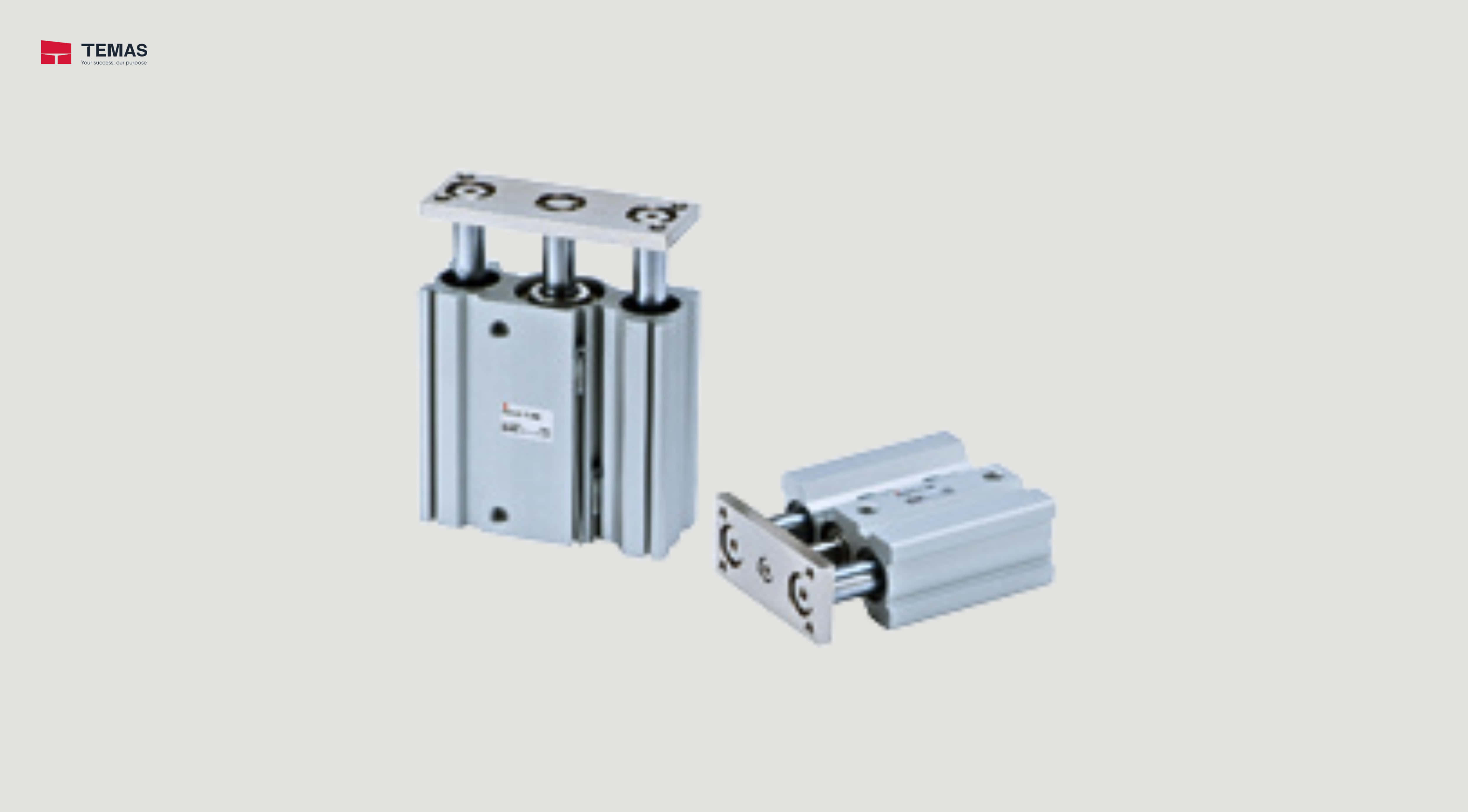

COMPACT GUIDE CYLINDER SMC MGQ

Compact Guide Cylinder SMC MGQ Series Bore size: ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100

Technical Information

Type Bearing Series Action Bore size (mm)
Standard Slide bearing MGQM Double acting 12，16，20，25，32，40
50，63，80，100
Standard Ball bushing bearing MGQL Double acting 12，16，20，25，32，40
50，63，80，100
Bearing type Slide bearing Ball bushing bearing
Model MGQM MGQL
Bore size (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure ø12, ø16 0.12 MPa
ø20 to ø100 0.1 MPa
Ambient and fluid temperature -10 to 60°C (No freezing)
  ø12 to ø16 50 to 500 mm/s
Piston speed ø80, ø100 50 to 400 mm/s
Cushion Rubber bumper on both ends
Lubrication Non-lube
Stroke length tolerance +1.5 mm
