Technical Information

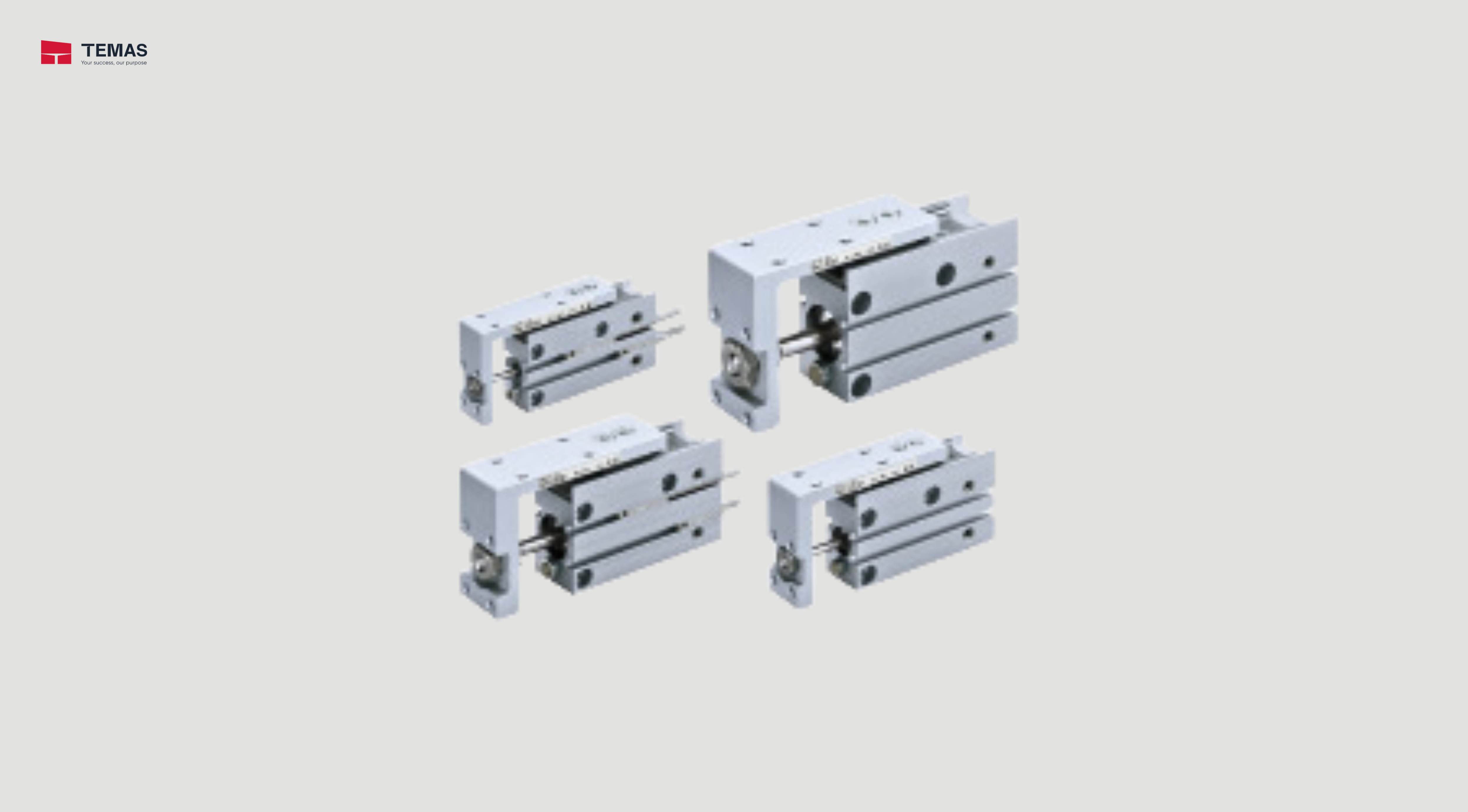

    MXH
Bore size [mm] 6 10 16 20
Fluid Air
Action Double acting
Piping port size M5 x 0.8
Minimum operating pressure 0.15 MPa 0.06 MPa 0.05 MPa
Maximum operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature Without auto switch: −10 to 70°C (No freezing)
 With auto switch: −10 to 60°C (No freezing)
Piston speed 50 to 500 mm/s
Allowable kinetic energy [J]  0.0125  0.025  0.05 0.1
Lubrication Non-lube
Cushion Rubber bumper on both ends
Stroke length tolerance +1.0
Auto switch
(Option)
Solid state auto switch D-M9, M9W
Reed auto switch D-A9
