COMPACT SLIDE SMC MXH2

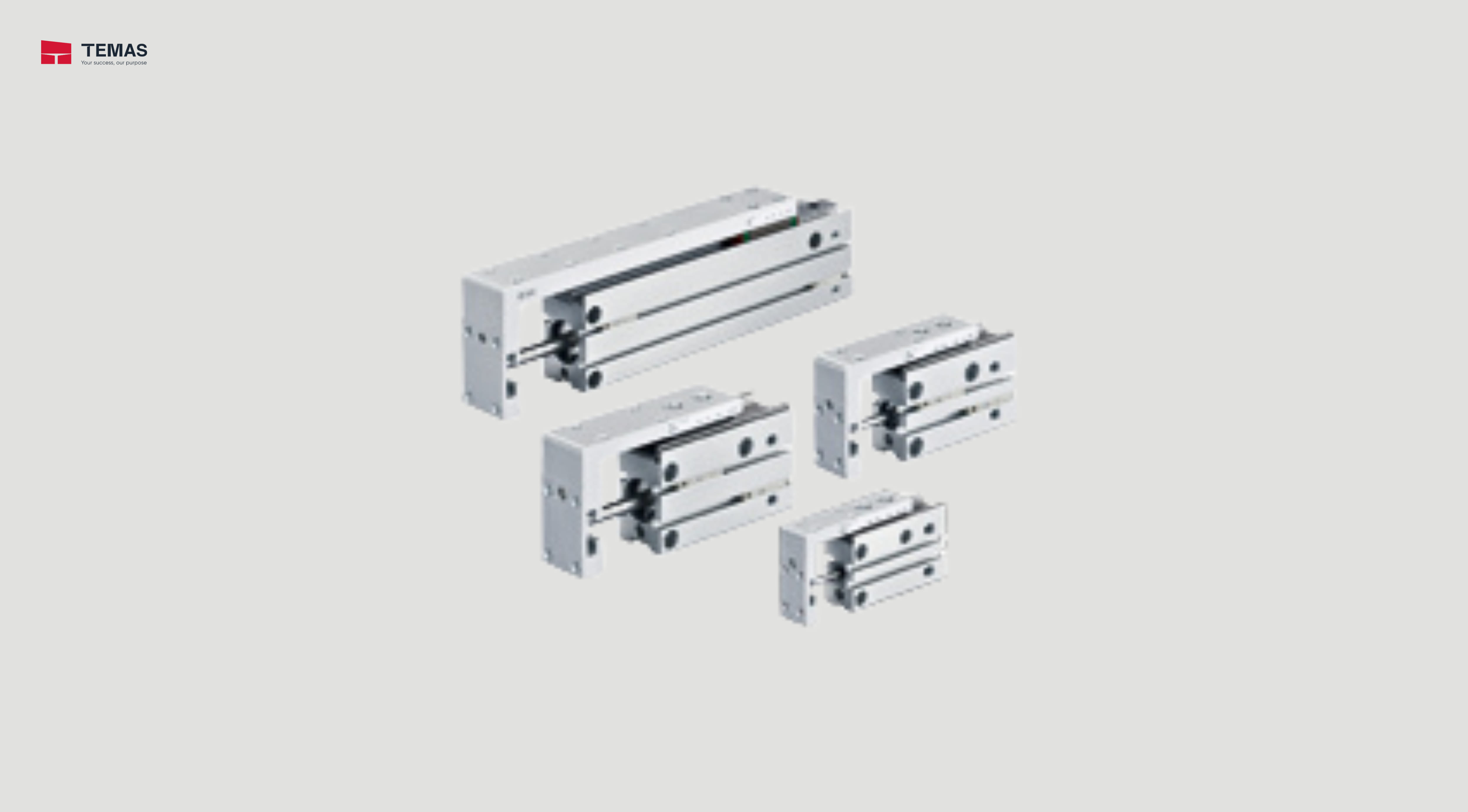

Compact Slide SMC MXH2 Series Bore size: ø6, ø10, ø16, ø20

Improved linear guide rigidity reduces the amount of table displacement by 48%
Displacement due to a force acting in the pitch direction: 48% reduction (0.31 mm→0.16 mm)
Displacement due to a force acting in the yaw direction: 63% reduction (0.24 mm→0.09 mm)
Displacement due to a force acting in the roll direction: 90% reduction (0.06 mm→0.006 mm)
Max. standard stroke: 150 mm (For ø20)
Weight: Max. 6% reduction (194 g→182 g)
Dimensions for mounting and length are equivalent to the existing MXH Series.

Specifications	MXH2
Bore size [mm]	6	10	16	20	25
Fluid	Air
Piping port size	M5 x 0.8
Minimum operating pressure	0.2 MPa	0.1 MPa		0.08 Ma	0.06 MPa
Maximum operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	Without auto switch: −10 to 70°C (No freezing) With auto switch: −10 to 60°C (No freezing)
Piston speed	50 to 500 mm/s
Allowable kinetic energy [J]	0.0125	0.025	0.05	0.1	0.175
Lubrication - Cylinder unit	Non-lube
Lubrication - Guide unit	Lubrication recommended
Cushion	Rubber bumper on both ends
Stroke length tolerance	+1.0
