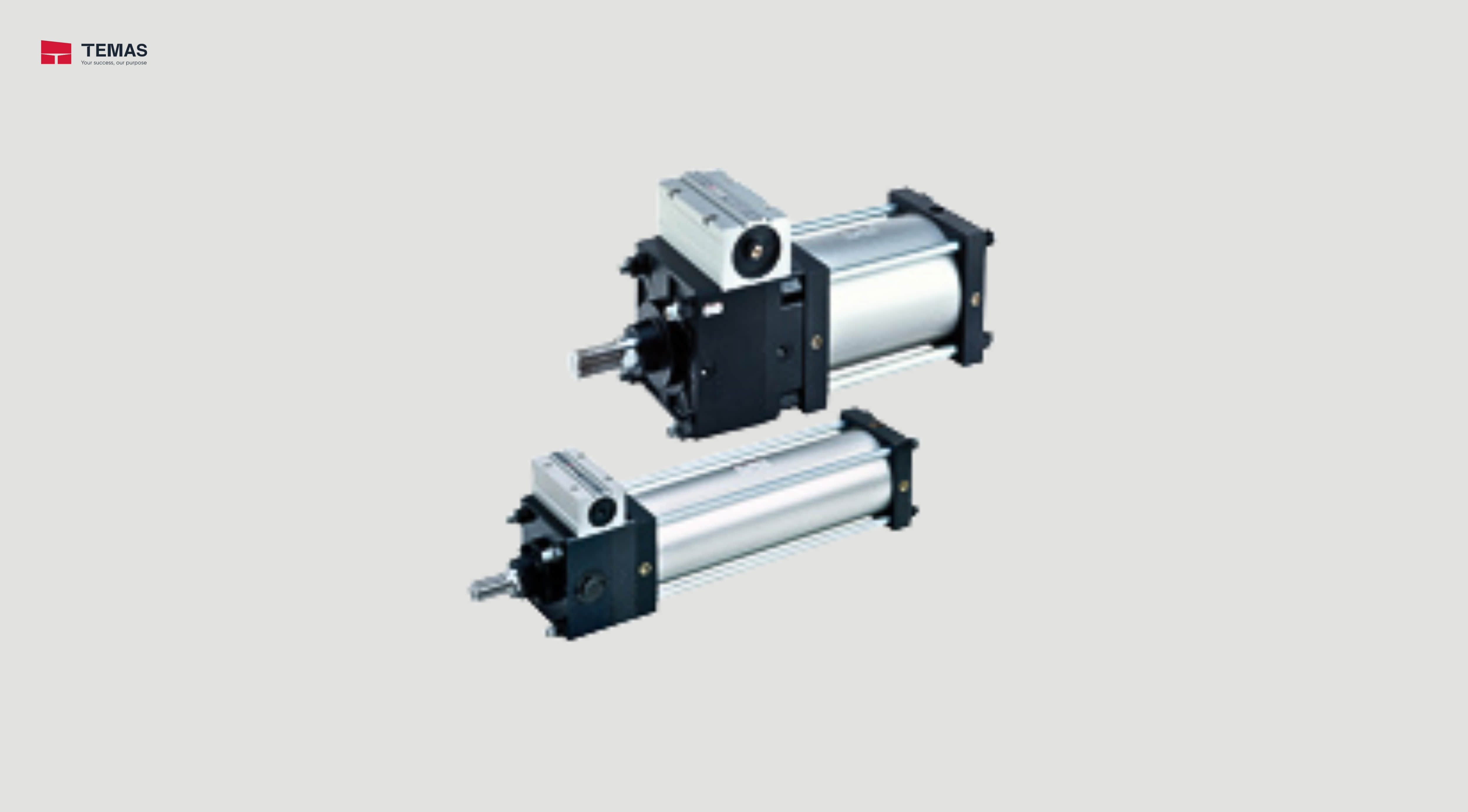

CYLINDER WITH LOCK SMC CLS, CDLS

Cylinder with Lock Double Acting, Single Rod CLS Series Bore size: ø125, ø140, ø160, ø180, ø200, ø250

Technical Information

 Specifications  CLS
 Bore size 125 140
 160
180
 200
 250
Kiểu Not required (Non-lube)
Fluid Air
Action Double acting, Single rod
Proof pressure 1.57 MPa, 1.2 MPa∗
Max. operating pressure 0.97 MPa, 0.7 MPa∗
Min. operating pressure 0.08 MPa
Piston speed
  50 to 500 mm/s∗∗
Cushion
 Air cushion
Ambient and fluid temperature

Without auto switch: 0 to 70°C (No freezing)
With auto switch: 0 to 60°C (No freezing)
Stroke length tolerance Up to 250 st: +1.0mm, 251 to 1000 st: +1.4mm, 1001 to 1500 st: +1.8mm, 1501 to 2000 st: +2.2mm, 2001 to 2400 +2.6mm
Mounting Basic type, Axial foot type, Rod side flange type,
Head side flange type, Single clevis type, Double clevis type,
Center trunnion type
