CYLINDER WITH LOCK SMC CNA2

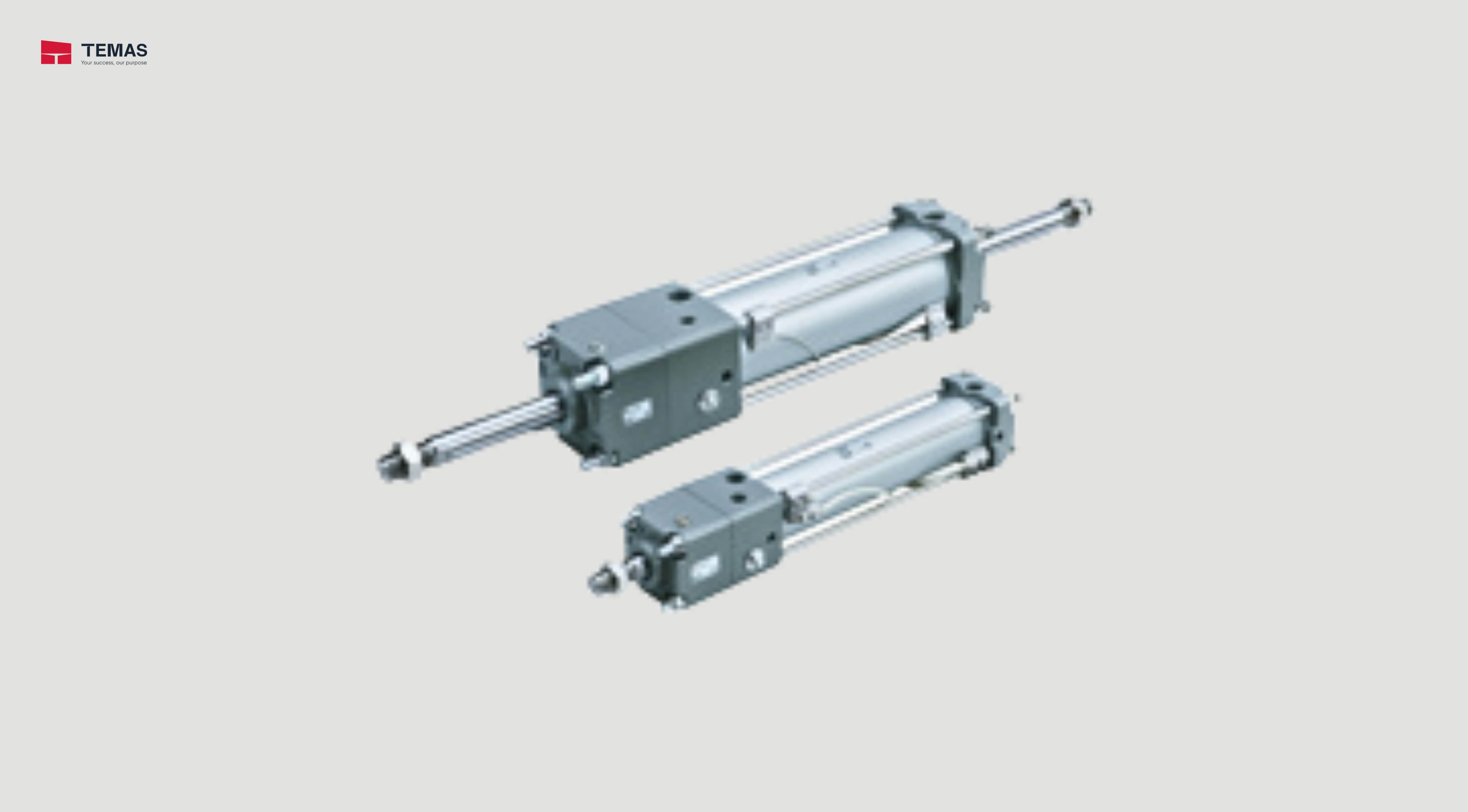

Cylinder with Lock Double Acting, Single Rod SMC CNA2 Series Bores size:ø40, ø50, ø63, ø80, ø100

Technical Information

Type Series Action Bore size (mm) Lock mechanism
Standard CNA2 Double acting,
Single rod		 40，50，63
80，100		 Spring lock
Standard CNA2W Double acting,
Double rod		 40，50，63
80，100		 Spring lock
 Specifications  CNA2
 Bore size 40 50  63 80  100
Lubrication
 Not required (Non-lube)
Action Double acting, Single rod
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.08 MPa
Ambient and fluid temperature

Without auto switch: -10 to 70°C (No freezing)

With auto switch: -10 to 60°C (No freezing)
Lubricant Not required (Non-lube)
Piston speed 50 to 1000mm/s
Cushion Air cushion
Stroke length tolerance Up to 250 st: +1.0, 251 to 1000 st: +1.4, 1001 to 1500 st: +1.8, 1501 to 2000 st: +2.2
Mounting Basic, Axial foot, Rod flange, Head flange
Single clevis, Double clevis, Center trunnion
