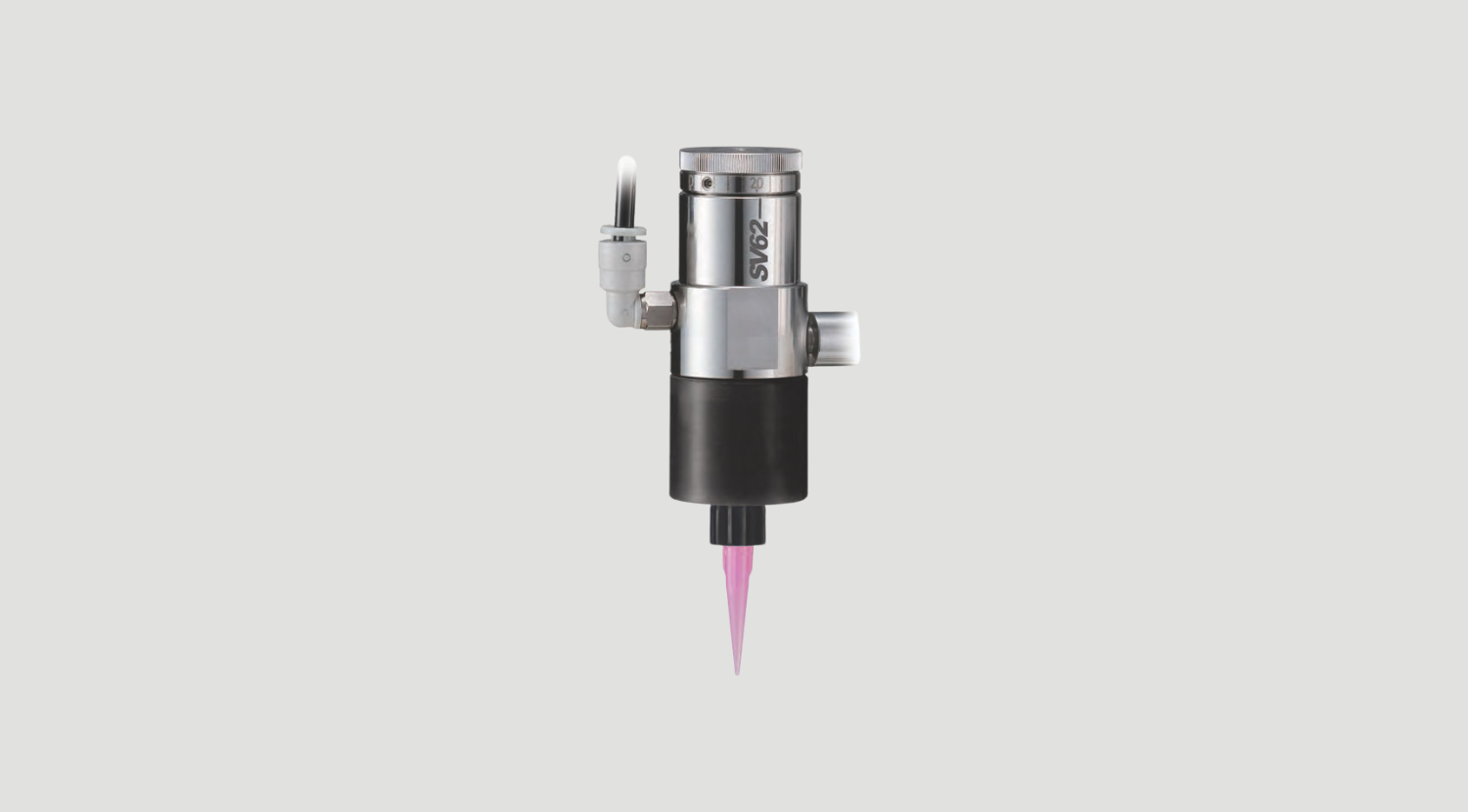

The high-precision diaphragm valve SV62-B uses black UHMW* resin that has excellent liquid resistance and high light-shielding properties, making it possible to apply a fixed amount of low-viscosity liquids such as UV adhesives and UV anaerobic adhesives without dripping.

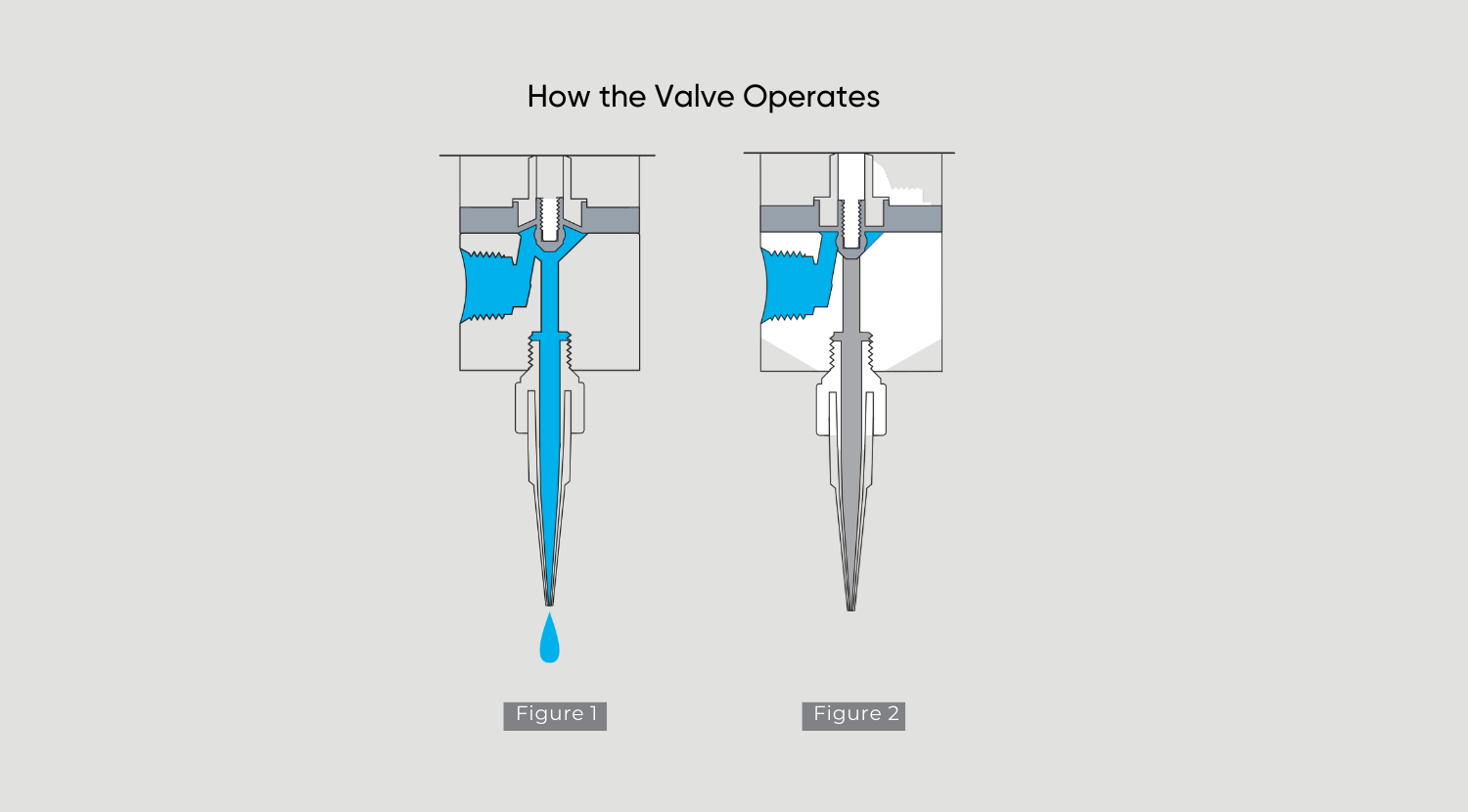

How the Valve Operates: Input air pressure retracts the diaphragm seal, permitting fluid to flow (Figure 1). Once the cycle is completed, the spring retracts the piston and the diaphragm closes to shut off the fluid (Figure 2).
| Specifications | SV62-B |
| Sizes | φ26.9mm (Fluid body) x 79.0mm length |
| Weight | 154g |
| Air cylinder body | SUS303 |
| Diaphragm | UHMW* |
| Valve head | UHMW* |
| Tip adapter | Polypropylene |
| Fluid outlet port | 1/8NPT female |
| Mounting hole | M5 female |
| Valve operating air pressure | 0.4～0.62MPa |
| Maximum fluid pressure | 0.48MPa |
*Ultra High Molecular Weight
