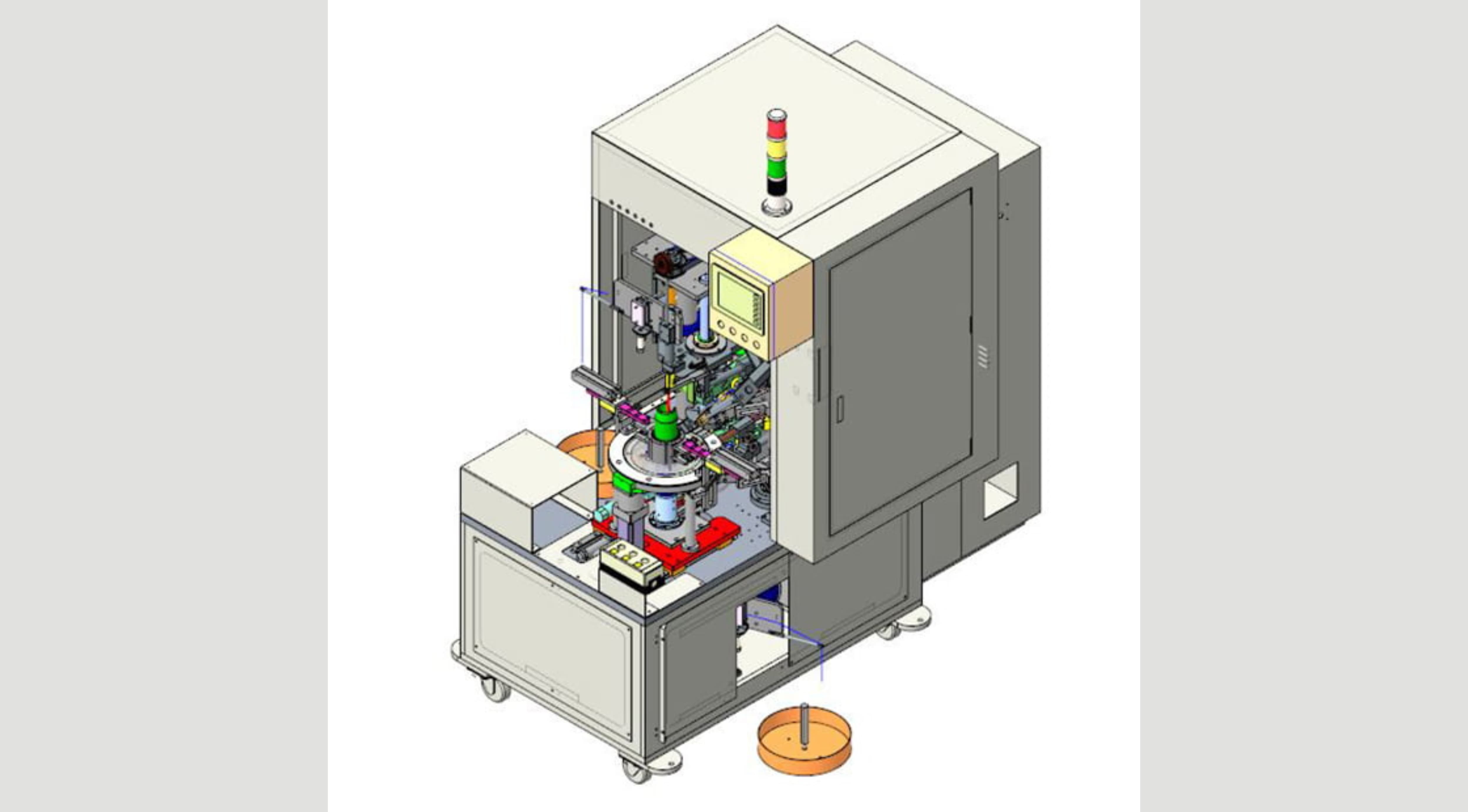

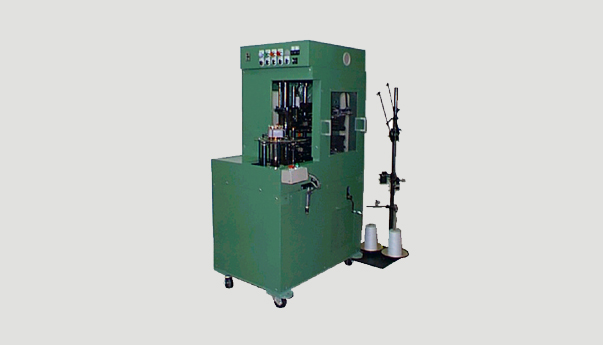

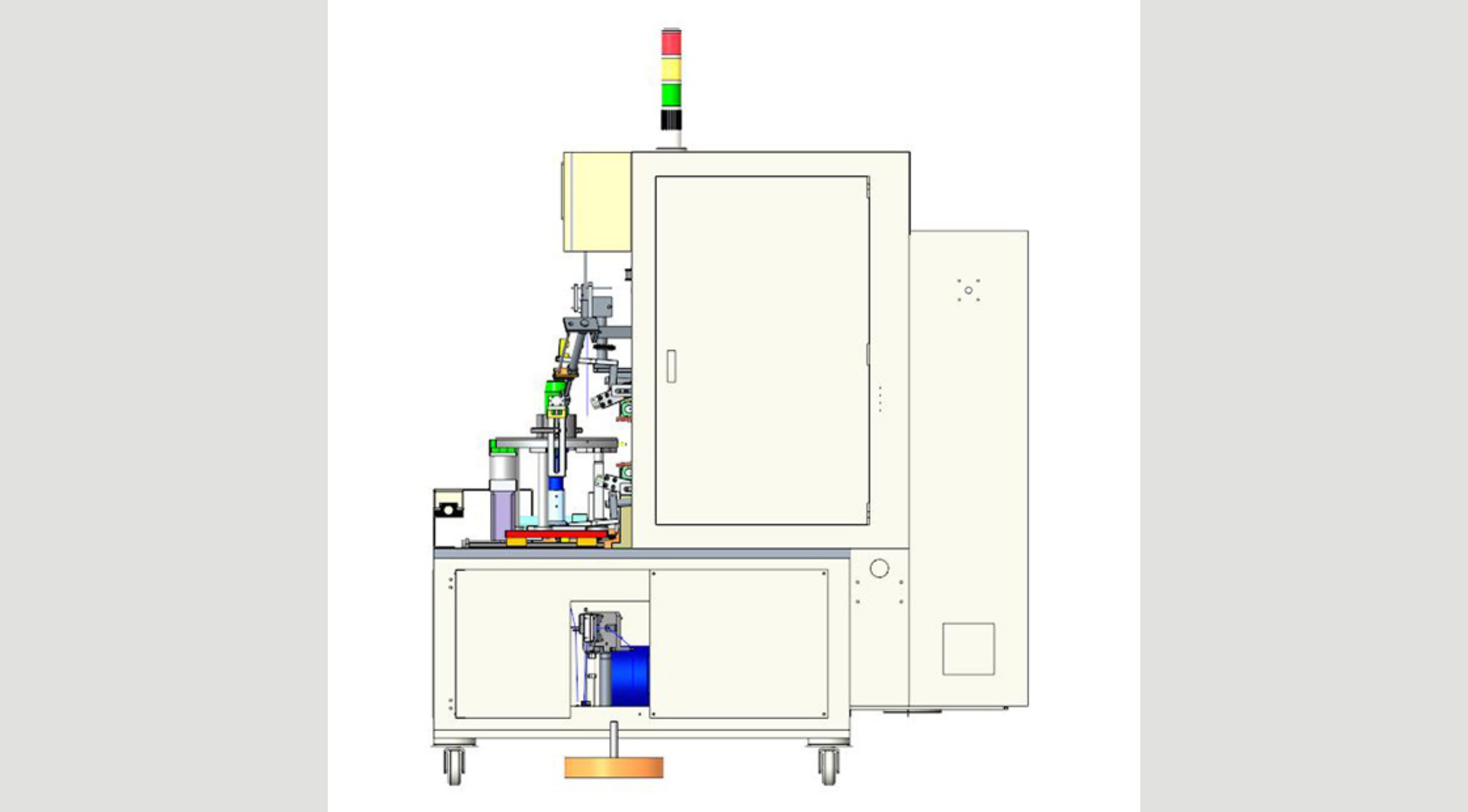

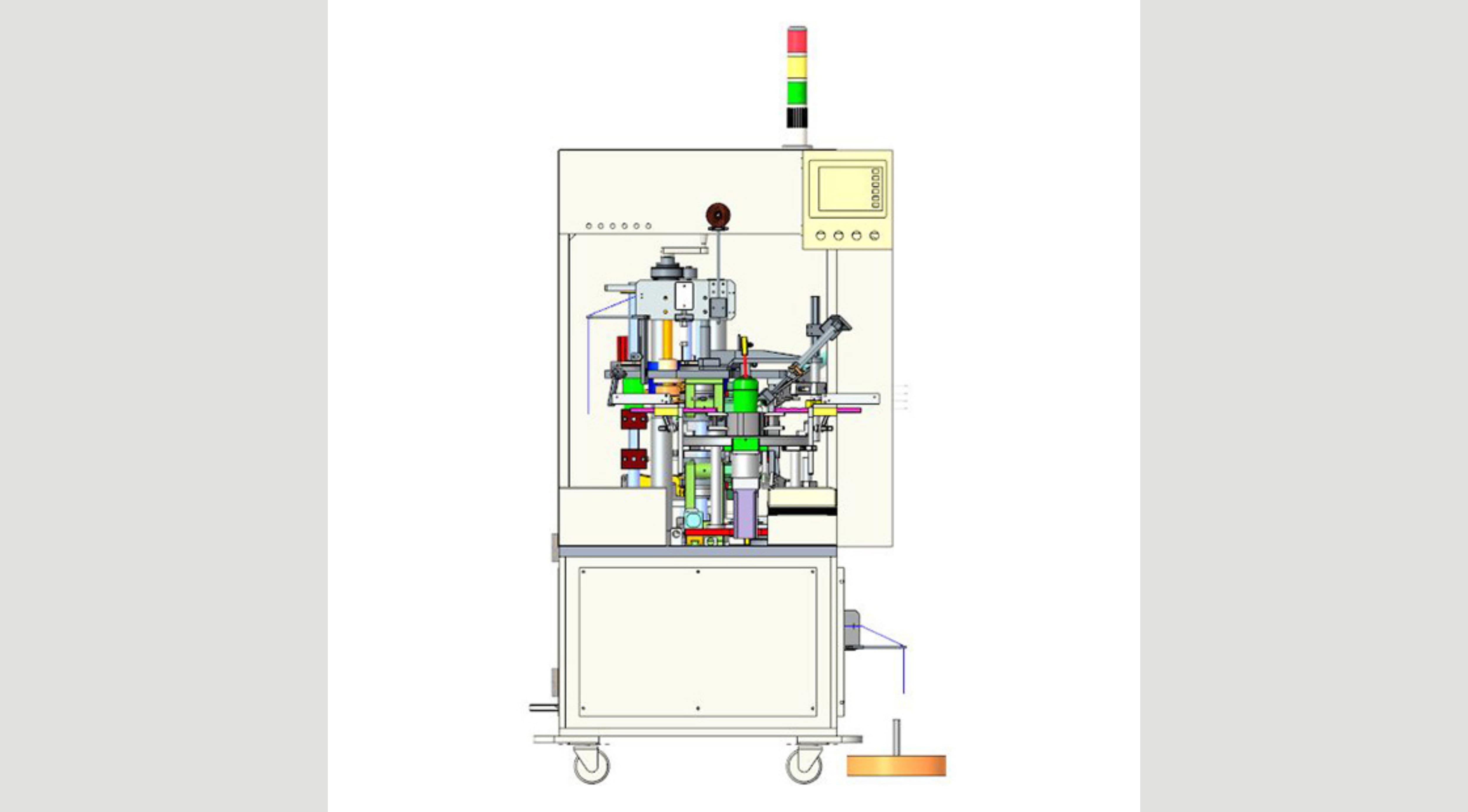

DOUBLE END LACING MACHINE GMW L-2A

MODEL: GMWL-2A

Technical Information

For high-speed simultaneous lacing of both top and bottom coil end turns of fractional, small integral horsepower and hermetic stators, the Double End Lacing Machine offers proven reliability at an affordable price.

Specification GMW L-2A
Lacing Thread Dia. (mm) max Ø1.2
Stator OD/ID Limit (mm)

IDØ40-140

ODØ200 max
Stator Core Length Limit (mm) 20-150
Cycle Time (sec) <0.7 sec/time
Floor Area (W*L*H) (cm)  95*170*200
Machine Weight (Kg) 950 kg
Main Operation Power Source (KW) 0.8
Max. Power Consumption (KW) 2.0
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
