Technical Information

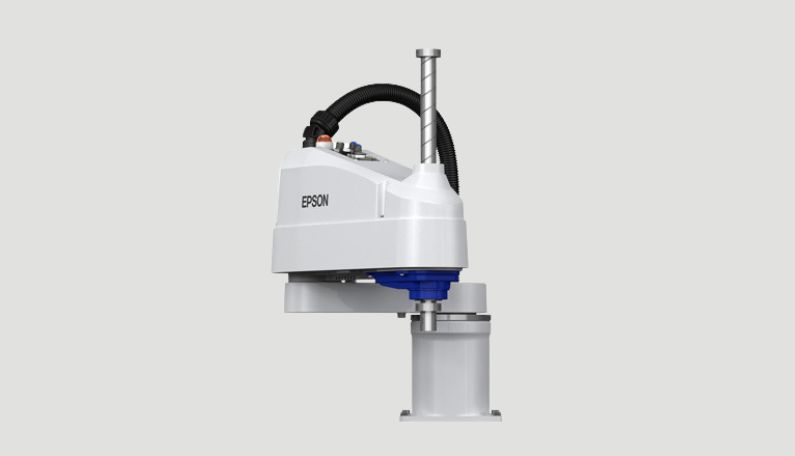

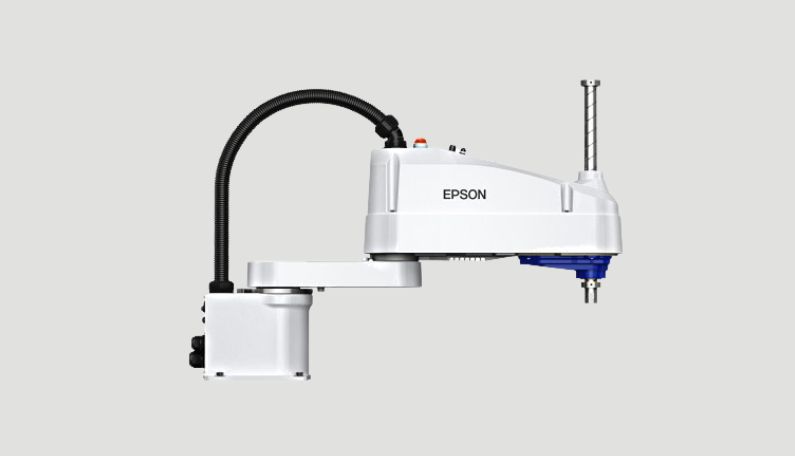

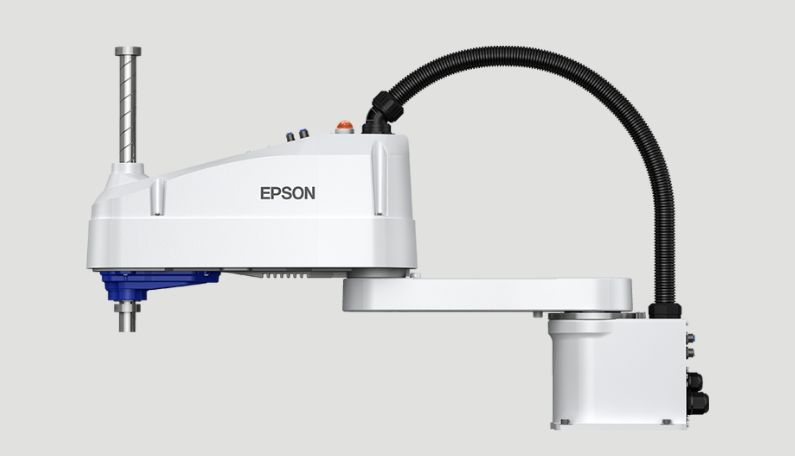

  LS10-B60X LS10-B70X LS10-B80X
Arm length Arm #1, #2 600 mm 700 mm 800 mm
Mounting type Tabletop
Weight (cables not included) 22 kg 22 kg 23 kg
Repeatability  Joint #1, #2 ±0.020 mm
±0.020 mm ±0.025 mm
Joint #3 ±0.010 mm
Joint #4 ±0.010°

Max. motion range




Joint #1 ±132°
Joint #2  ±150°
Joint #3 Std 200 mm or 300 mm
Joint #3 Clean 170 mm or 270 mm
Joint #4 ±360°
Payload Rated 5 kg
Maximum 10 kg
Standard cycle time 0.39s 0.41s 0.44s
Joint #3 downward force 200 N
Electric lines 15 (15-Pin: D-Sub), 8 (8-Pin: RJ45) Cat5e
Pneumatic lines Φ4 mm x 1, Φ6 mm x 2
Installation environments Standard/ Cleanroom (ISO 4)
Available controllers RC90-B
Safety Standard

CE Mark, EMC Directive, Machinery Directive, RoHS Directive, ANSI/RIA R15.06-2012, NFPA79 (2007 edition)
