Technical Information

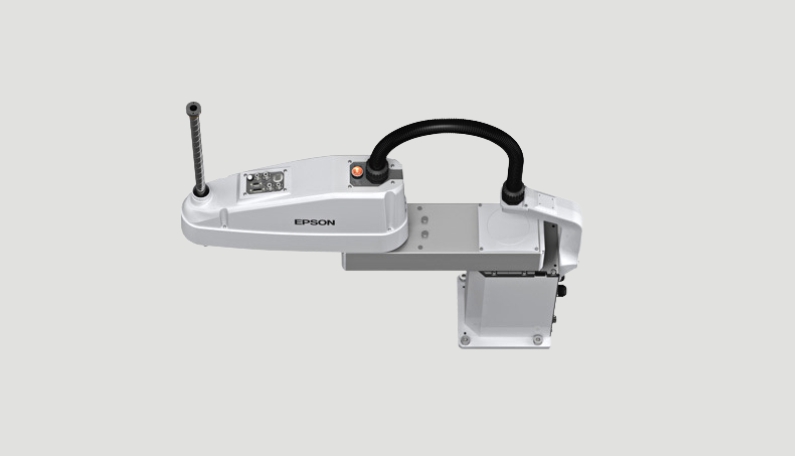

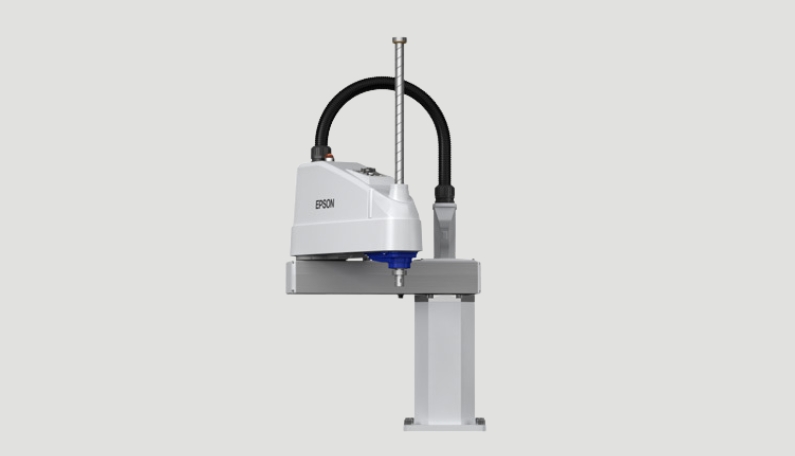

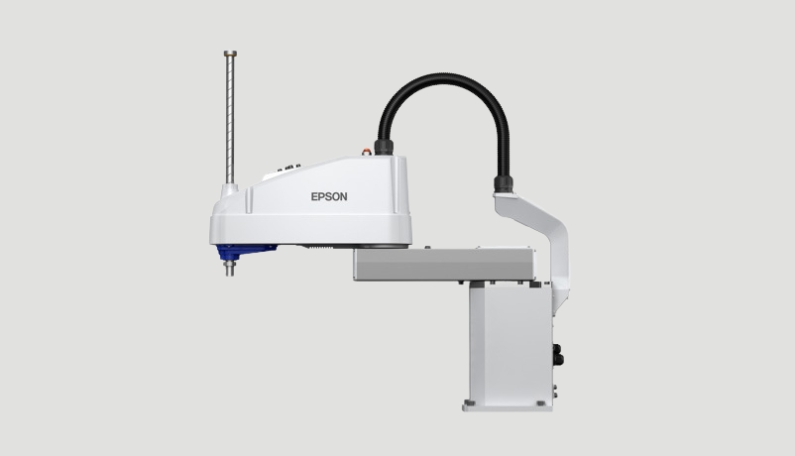

  LS20-B80X LS20-BA0X
Arm length Arm #1, #2 800 mm 1000 mm
Mounting type Tabletop
Weight (cables not included) 48 kg 51 kg
Repeatability  Joint #1, #2 ±0.025 mm
Joint #3 ±0.010 mm
Joint #4 ±0.010°

Max. motion range




Joint #1 ±132°
Joint #2  ±152°
Joint #3 Std 420 mm
Joint #3 Clean 390 mm
Joint #4 ±360°
Payload Rated 10 kg
Maximum 20 kg
Standard cycle time 0.39s 0.43s
Joint #3 downward force 250 N
Electric lines 15 (15-Pin: D-Sub), 8 (8-Pin: RJ45) Cat5e
Pneumatic lines Φ4 mm x 1, Φ6 mm x 2
Installation environments Standard/ Cleanroom (ISO 4)
Available controllers RC90-B
Safety Standard

CE Mark, EMC Directive, Machinery Directive, RoHS Directive, ANSI/RIA R15.06-2012, NFPA79 (2007 edition)
