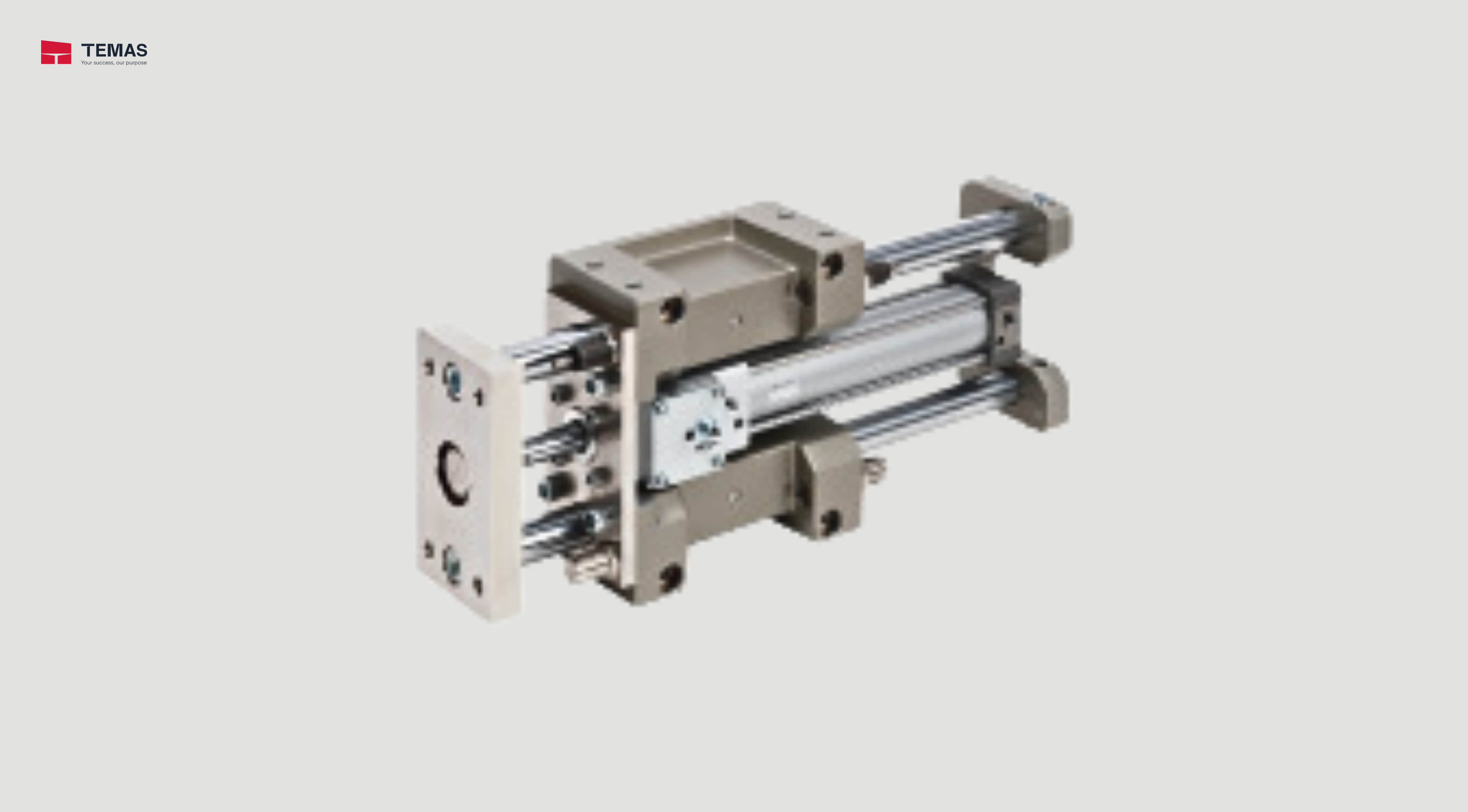

GUIDE CYLINDER (BUILT-IN CYLINDER WITH LOCK) SMC MGG-XC104

Model		MGG20	MGG25	MGG32	MGG40	MGG50	MGG63	MGG80	MGG100
Basic cylinder		CDG1ZN Bore size Port thread type - Stroke Z - Auto switch						CDG1BN Bore size Port thread type - Stroke Z - Auto switch
Bore size (mm)		20	25	32	40	50	63	80	100
Action		Double acting
Fluid		Air
Proof pressure		1.5 MPa
Maximum operating pressure		1.0 MPa
Minimum operating pressure		0.15 MPa (Horizontal with no load)
Ambient and fluid temperature		–10 to 60°C
Piston speed		50 to 1000 mm/s						50 to 700 mm/s
Cushion	Basic cylinder	Rubber bumper
Cushion	Guide unit	Built-in shock absorbers (2 pcs.)
Stroke adjusting range (One side) [Built-in adjusting bolts (2 pcs.)]		0 to –10 mm	0 to –15 mm
Base cylinder lubrication		Non-lube
Stroke length tolerance		+1.9mm (1000 st or less), +2.3mm (1001 st or more)
Non-rotating∗ accuracy	Slide bearing	±0.07°	±0.06°	±0.06°	±0.05°	±0.04°	±0.04°	±0.04°	±0.03°
Non-rotating∗ accuracy	Ball bushing	±0.06°	±0.05°	±0.04°	±0.04°	±0.04°	±0.03°	±0.03°	±0.02°
Piping port size (Rc, NPT, G)		1/8				1/4		3/8	1/2
