Top-of-the-line compression / tension type loadcells uniquely developed through the perseverance of Unipulse

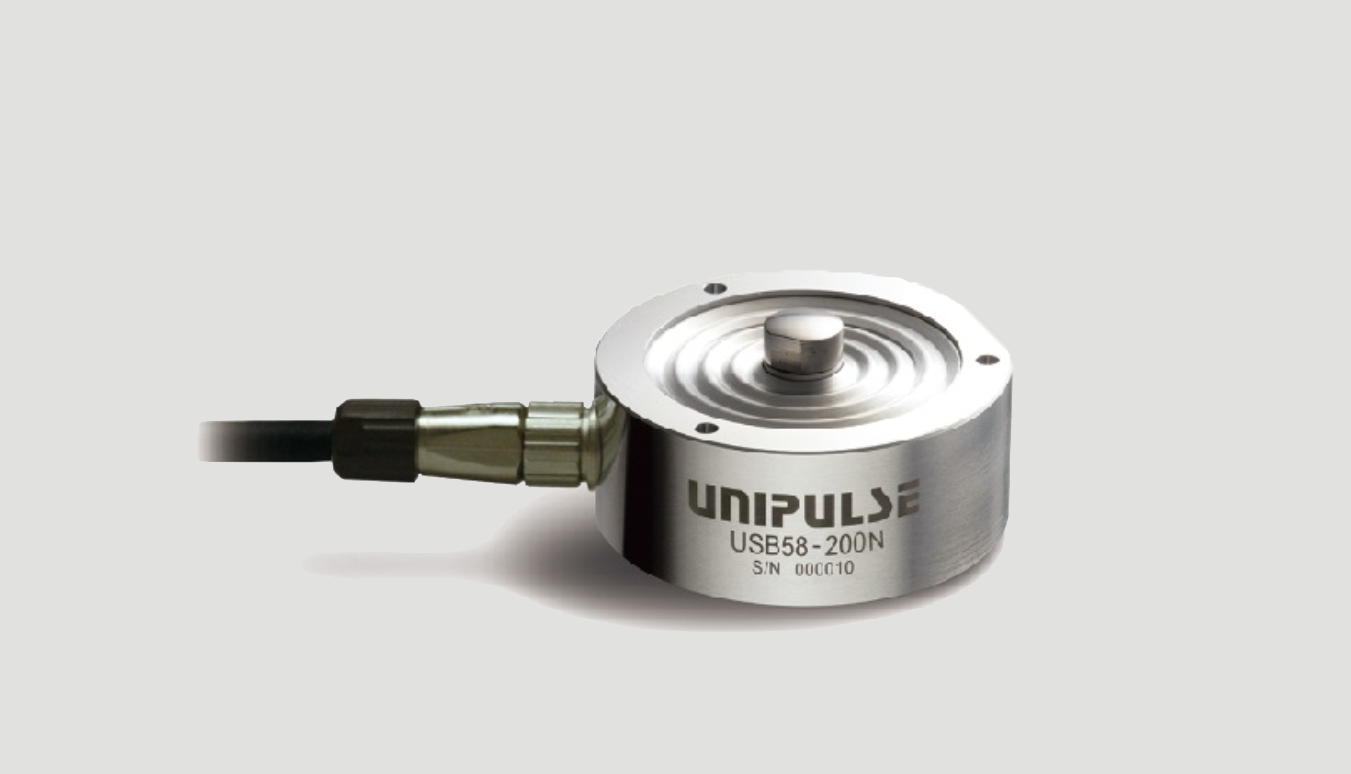

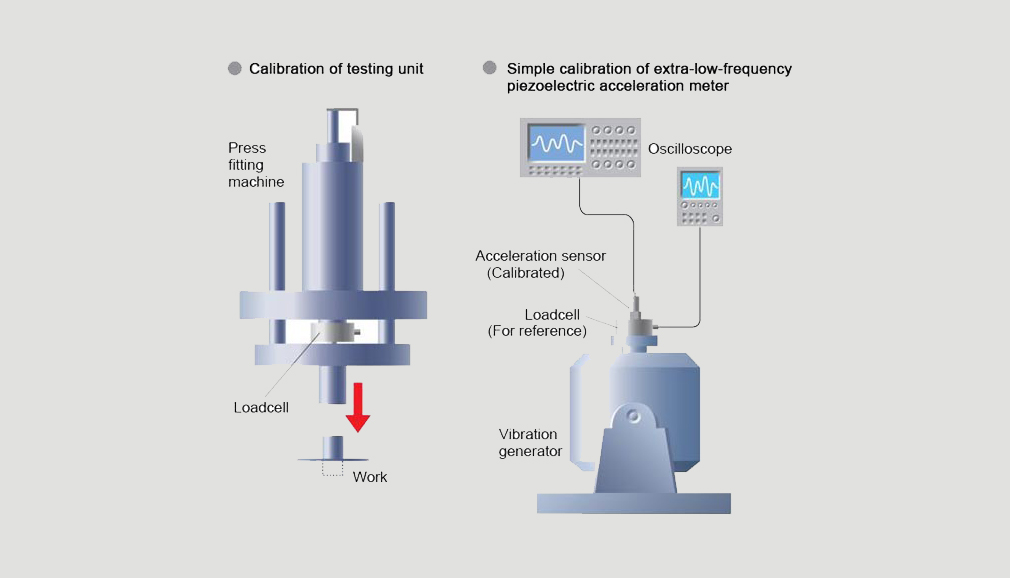

Model : USB58-200N, USB58-500N
Model | USB58-200N, USB58-500N | |
Rated capacity | 200, 500 | N |
---|---|---|
Rated output | 1±1% | mV/V |
Safe overload | 150 | %R.C. |
Zero balance | ±2 | %R.O. |
Non-linearity | 0.01 | %R.O. |
Hysteresis | 0.01 | %R.O. |
Repeatability | 0.01 | %R.O. |
Creep | 0.03 | %R.O./30min |
Operation temperature range | -10 to +70 | ℃ |
Safe temperature range | -30 to +80 | ℃ |
Temperature effect on Zero | 0.015 | %R.O./10℃ |
Temperature effect on span | 0.015 | %R.O./10℃ |
Input resistance | 1050±15% | Ω |
Output resistance | 1050±1% | Ω |
Recommended excitation voltage | 10 | V |
Maximum excitation voltage | 20 | V |
Insulation resistance (DC50V) | 1000 or more | MΩ |

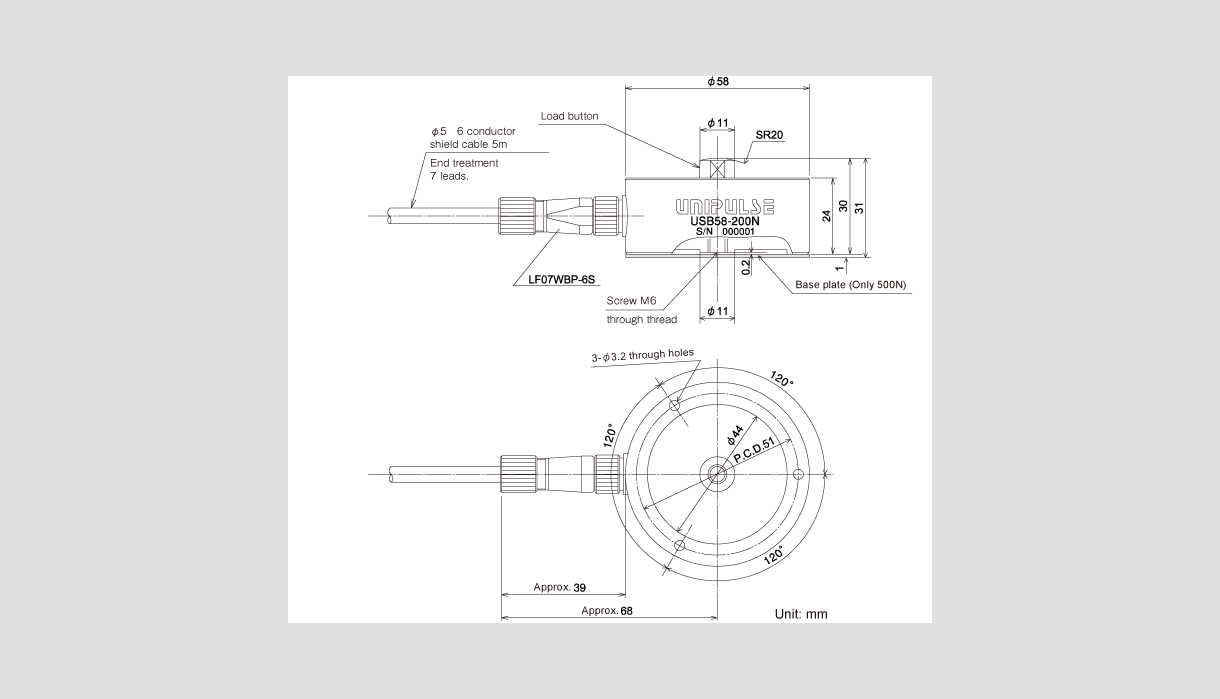

Cable | φ5 6-conductor color shield cable. Length 5m.End treatment -7leads. | |
Cable color code | +EXC:Red+S:Yellow-S:Orange-EXC:Black+SIG:Green-SIG:WhiteSHIELD | |
Loadcell material | Aluminum alloy | |
Deflection at rated | Approx. 0.025 | mm |
Natural frequency | Approx. 2 | kHz |
Weight | 120 | g |
