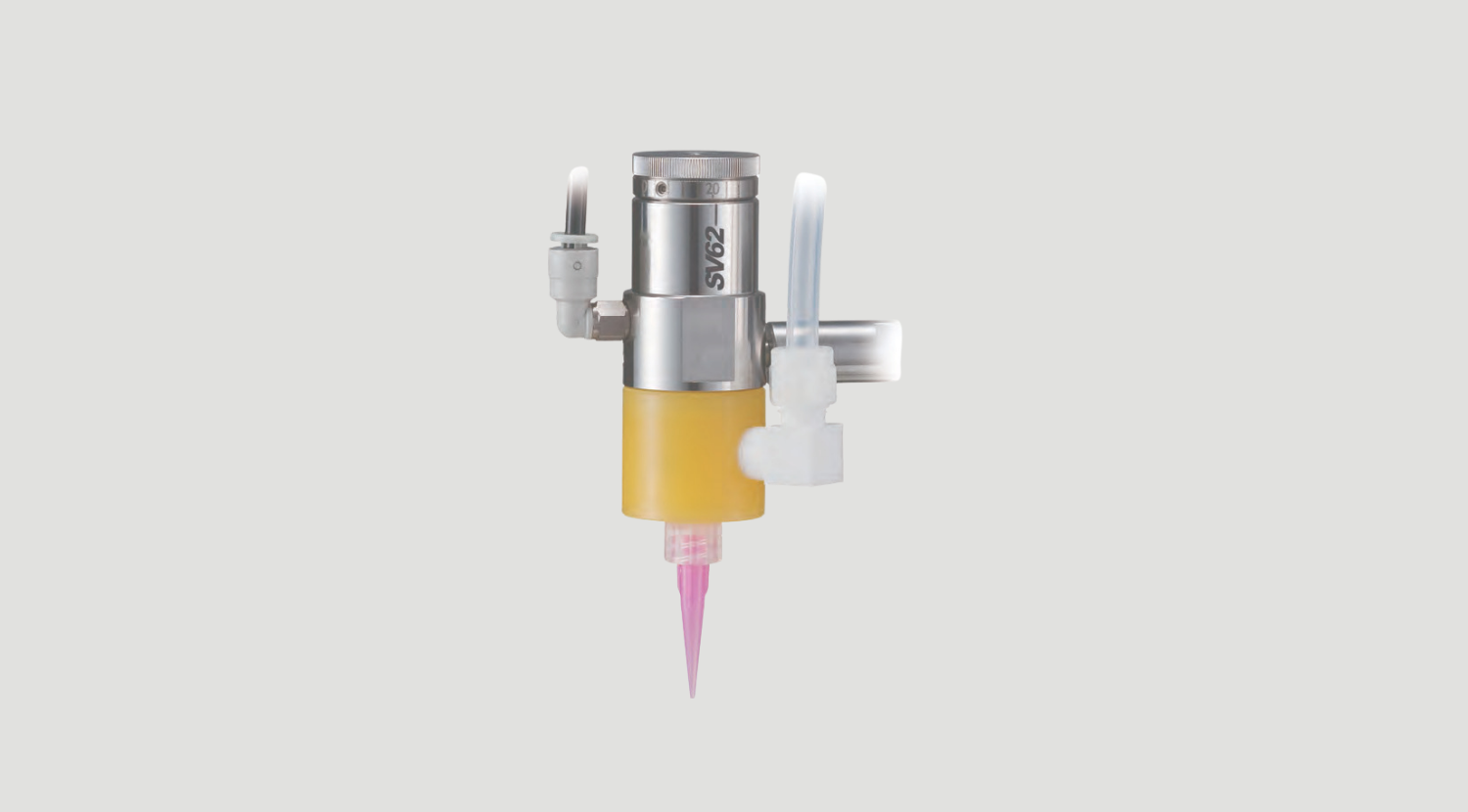

The high-precision diaphragm valve SV62 uses an inert polymer resin that does not react with liquids, making it possible to uniformly apply low to medium viscosity liquids such as solvents, instant adhesives, anaerobic adhesives, and fluxes without dripping.

Quick and reliable shut-off action prevents liquid dripping and maintains excellent liquid drainage properties.

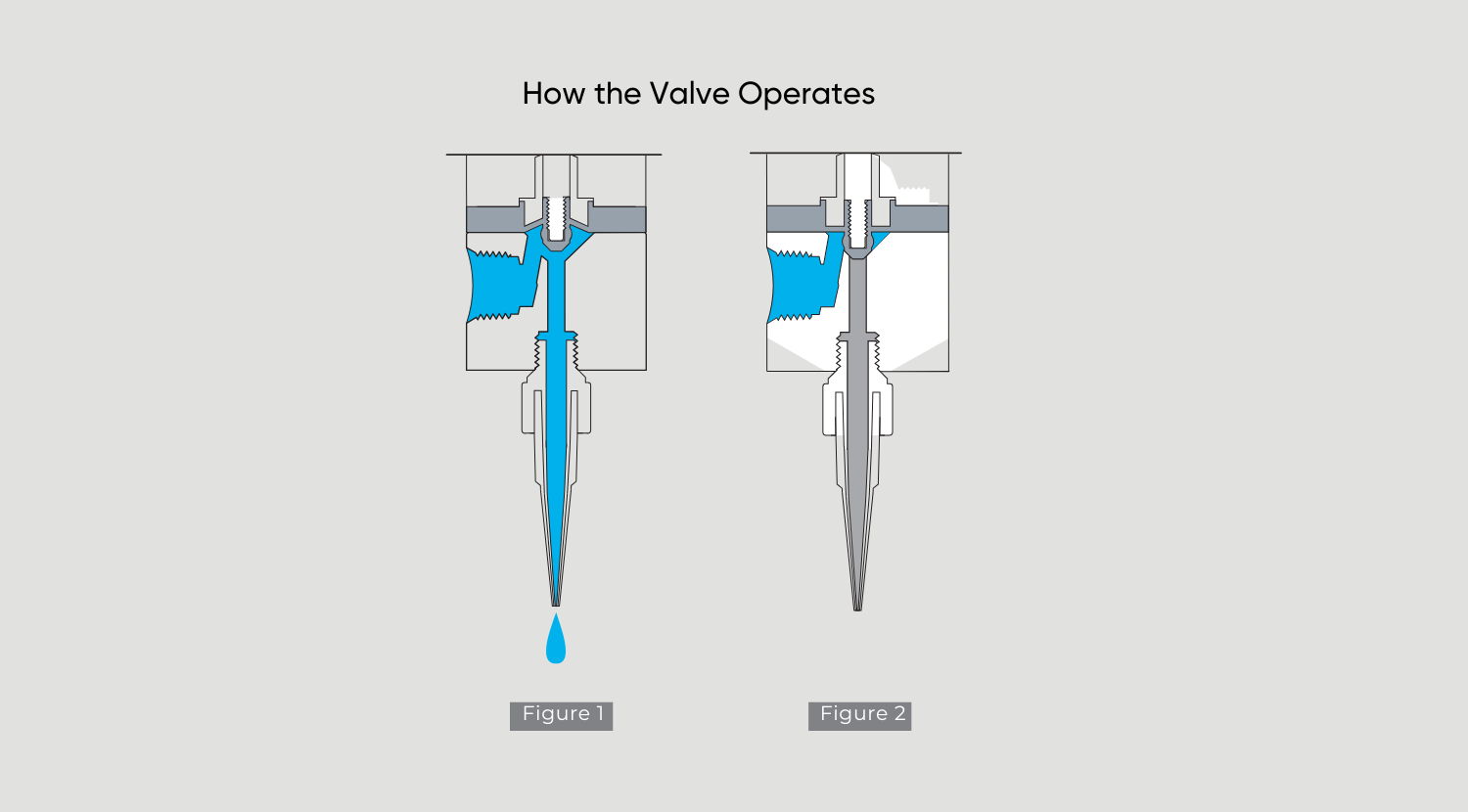

How the Valve Operates: Input air pressure retracts the diaphragm seal, permitting fluid to flow (Figure 1). Once the cycle is completed, the spring retracts the piston and the diaphragm closes to shut off the fluid (Figure 2).

*Ultra High Molecular Weight
