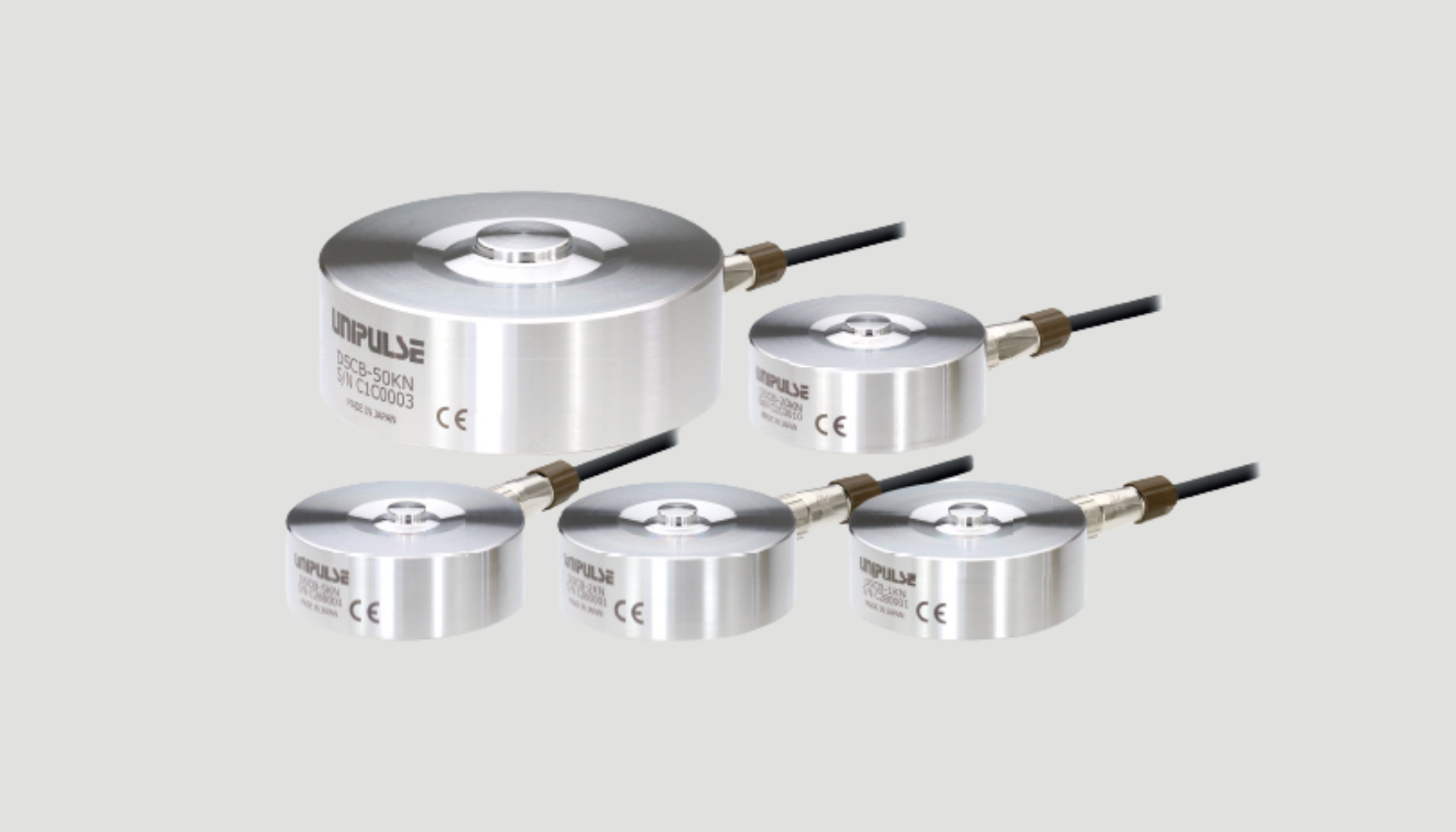

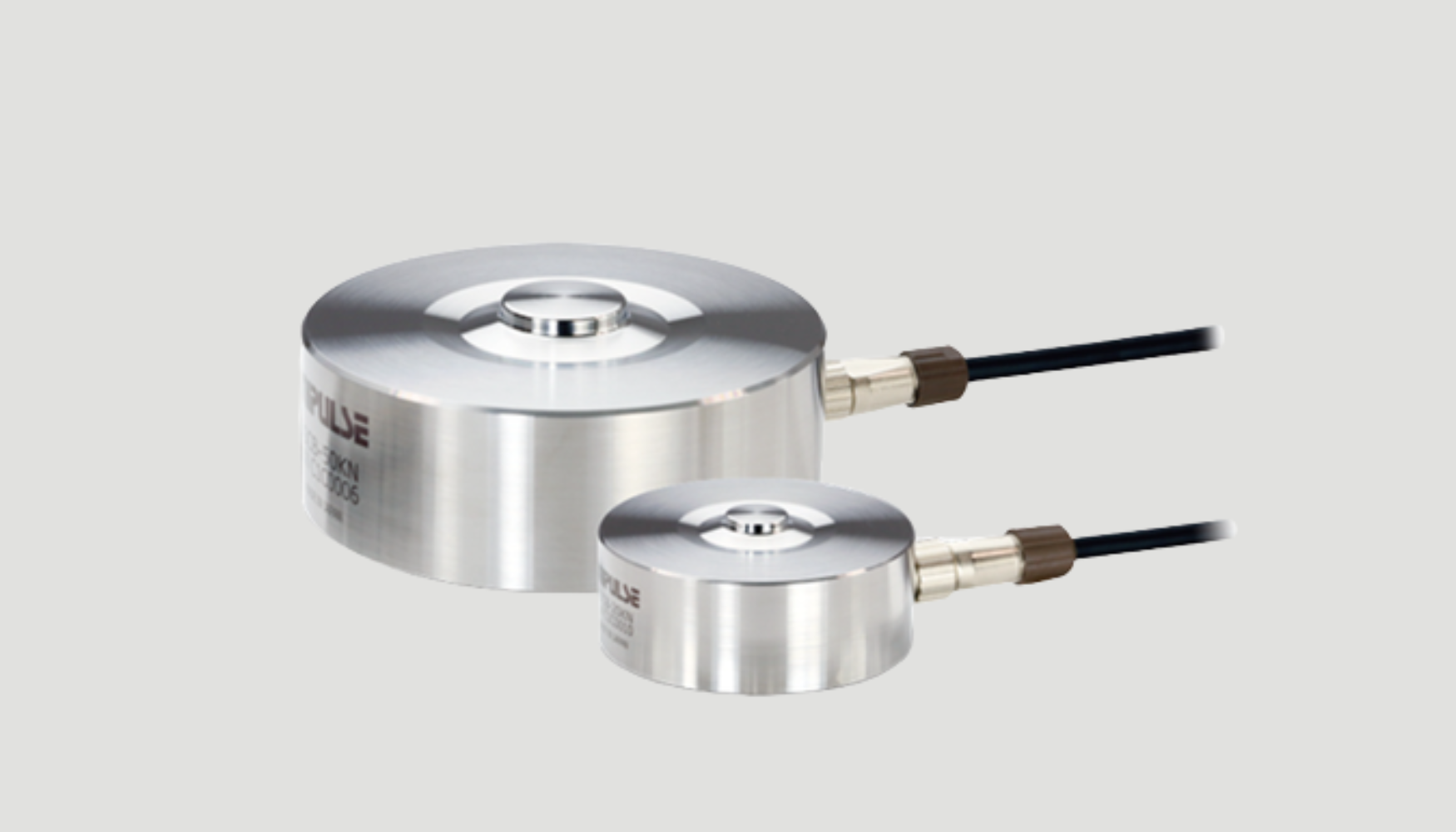

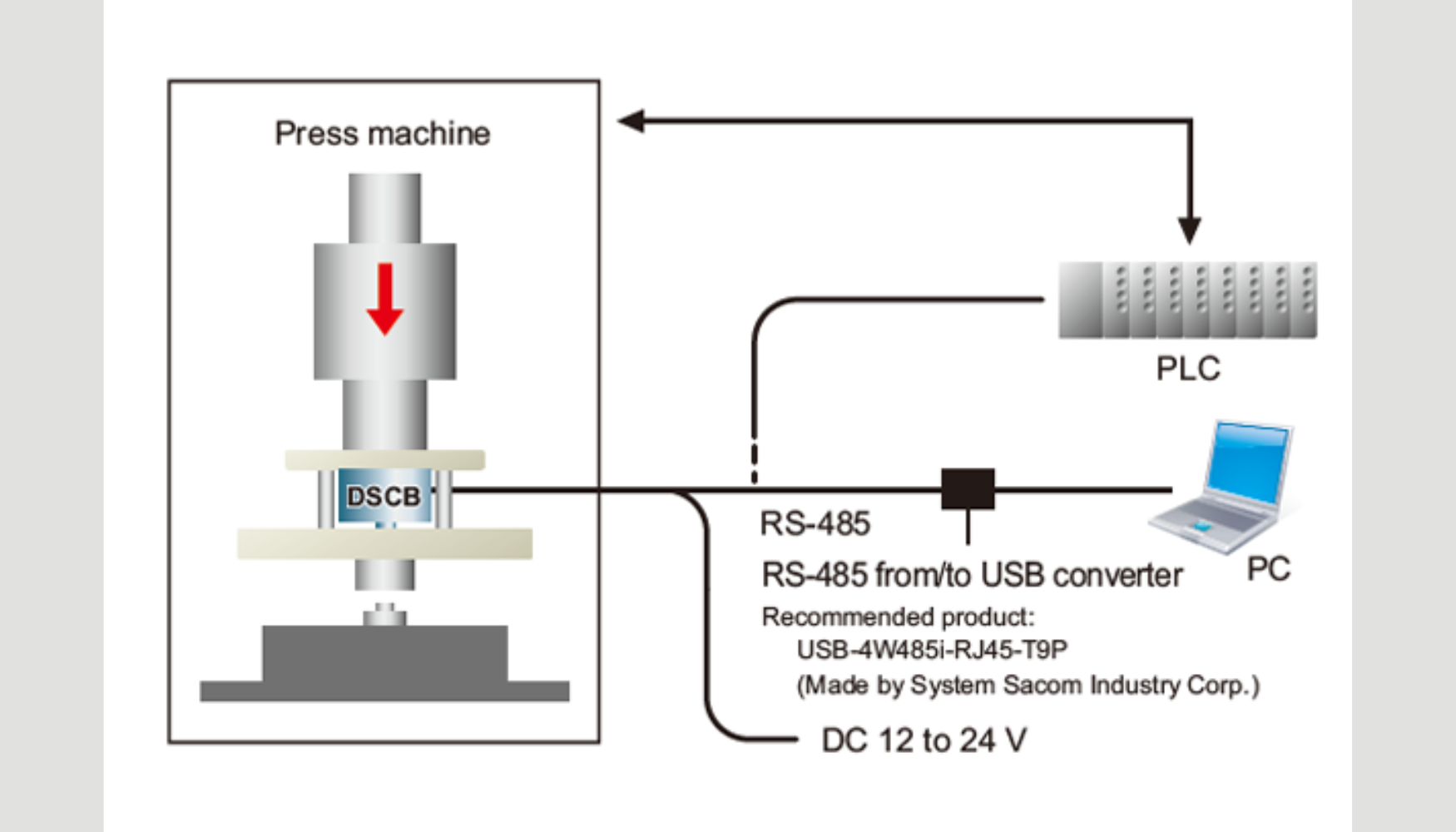

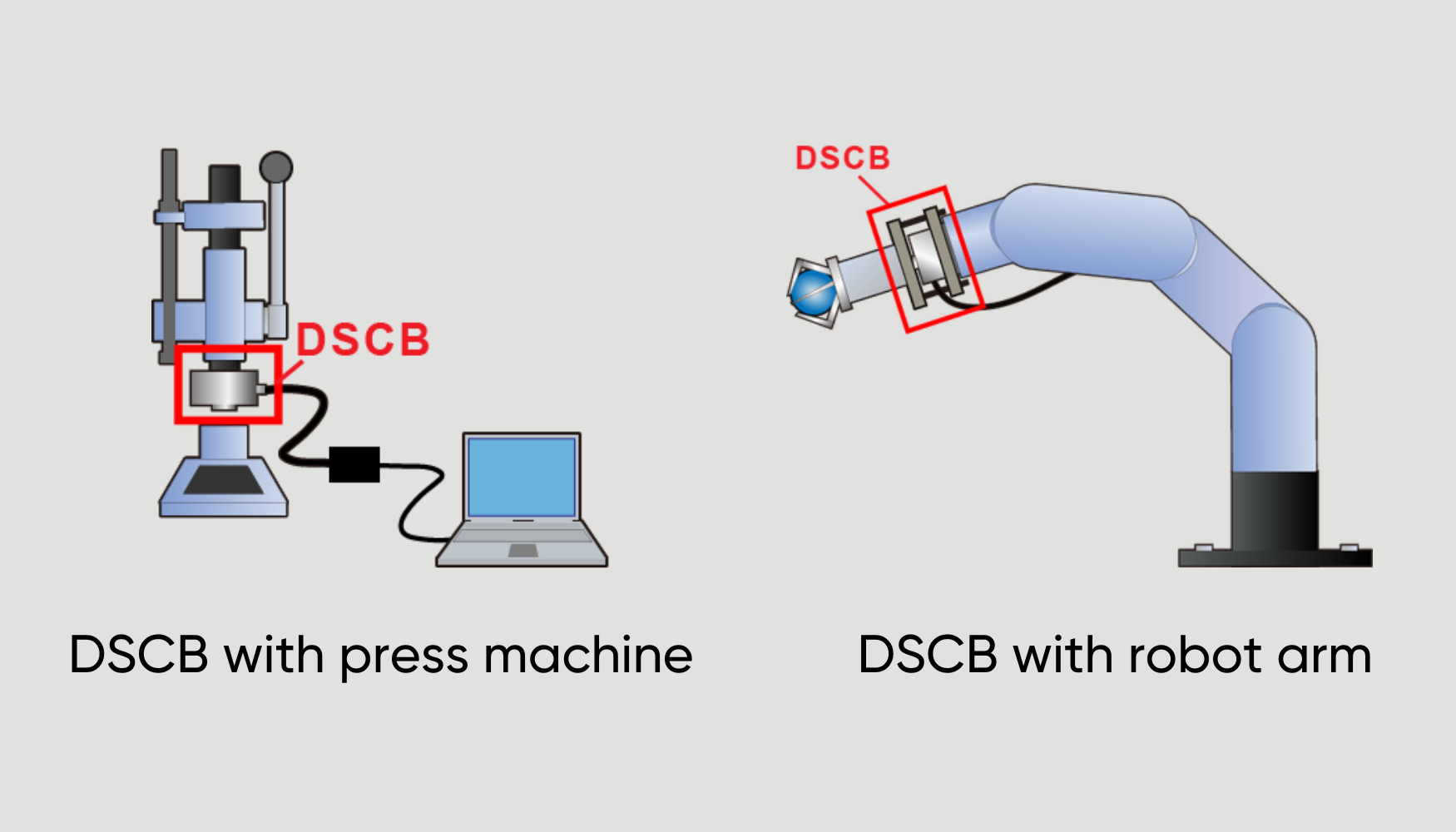

Model: DSCB-1KN, DSCB-2KN, DSCB-5KN, DSCB-20KN, DSCB-50KN
High-stiffness load cell with noise-resistant digital output incorporated!
Model | DSCB-1KN | DSCB-2KN | DSCB-5KN | DSCB-20KN | DSCB-50KN |
Rated capacity | 1 kN | 2kN | 5kN | 20kN | 50kN |
Safe overload | 500% R.C. | ||||
Load cell material | Stainless steel | ||||
Non-linearity | 0.1% R.O. or less R.O. | ||||
Hysteresis | 0.2% R.O. or less R.O. | ||||
Repeatability | 0.1% R.O. or less R.O. | ||||
Compensated temperature range | -10 to +60℃ | ||||
Safe temperature range | -20 to +70℃ | ||||
Temperature effect on zero | 0.015% R.O./℃ or below | ||||
Temperature effect on span | 0.01% R.O./℃ or below | ||||
Converter resolution | 24 bit | ||||
Deflection at rated | 0.010 mm | 0.012 mm | 0.021 mm | 0.035 mm | 0.065 mm |
Natural frequency | 22 kHz | 22 kHz | 21 kHz | 26 kHz | 15 kHz |
Weight | 300 g | 300 g | 400 g | 400 g | 2.0 kg |
Power supply voltage | DC 12 to 24 V±15% (Insulated internally) | ||||
Power consumption | 0.7 W or less | ||||
Digital low-pass filter | Can be set anywhere between OFF, 0.1 to 999.9 Hz | ||||
Moving average filter | Can be set anywhere between OFF, 2 to 999 times | ||||
Sampling rate | 4800 times/sec. | ||||
Interface | RS-485 interface (4-wire) | ||||
Operation & setting methods | Display & configuration by command operation or through dedicated software (Free software) |
||||
Dedicated software function |
|
||||
Display digit number | 5 digits (-99999 to +99999 plus decimal point) | ||||
Other functions |
|
||||
Cable | φ5 6-conductor flexible cable (2 m) Cable end: 7 wires | ||||
Optional accessories | φ5 6-conductor flexible cable (5 m) Cable end: 7 wires | ||||
CE marking certification | EMC directives EN61326-1, EN61326-2-3 |
