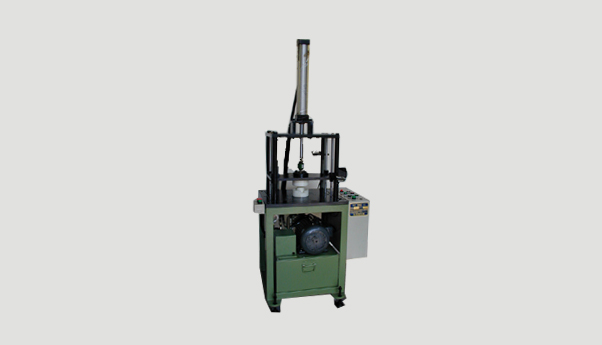

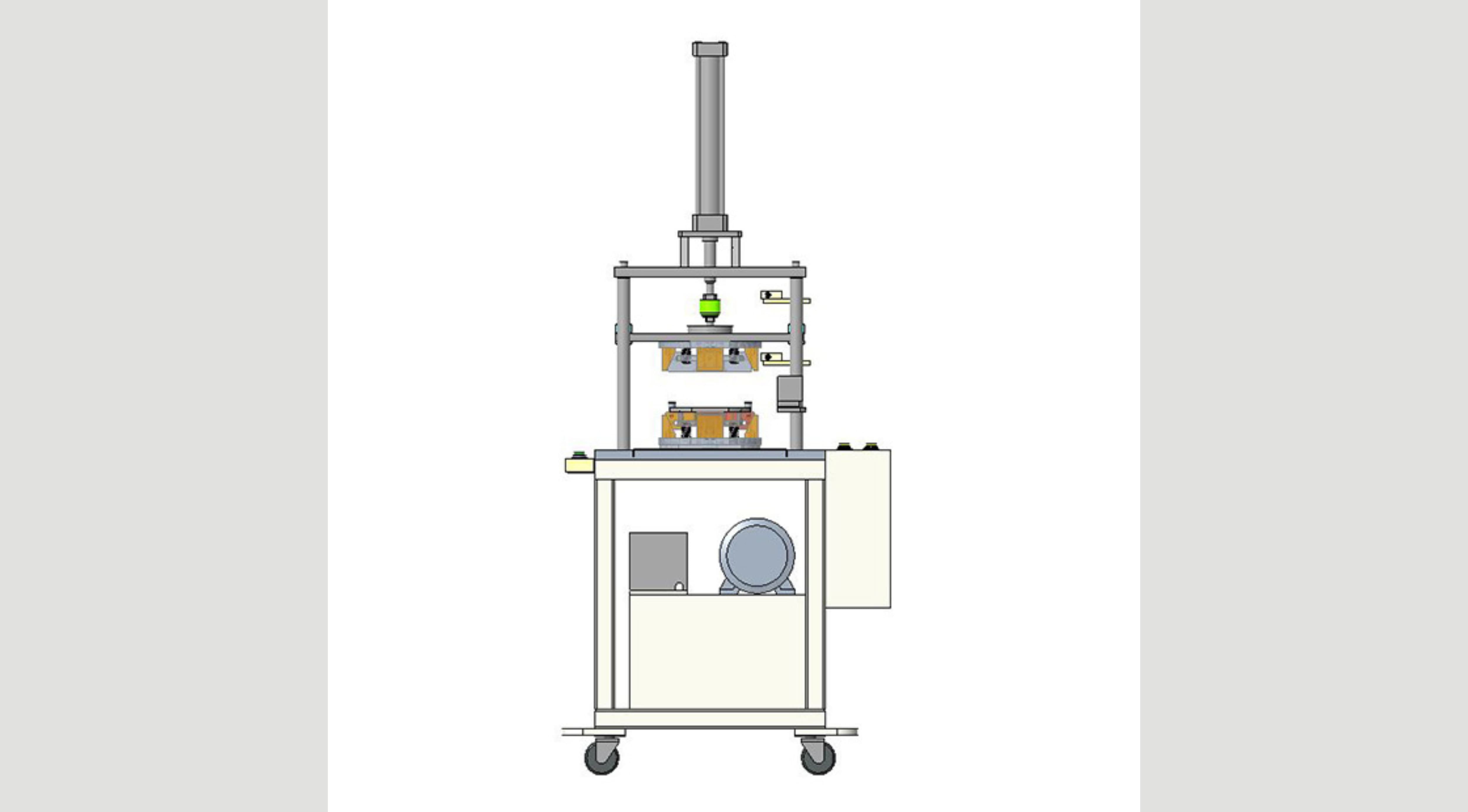

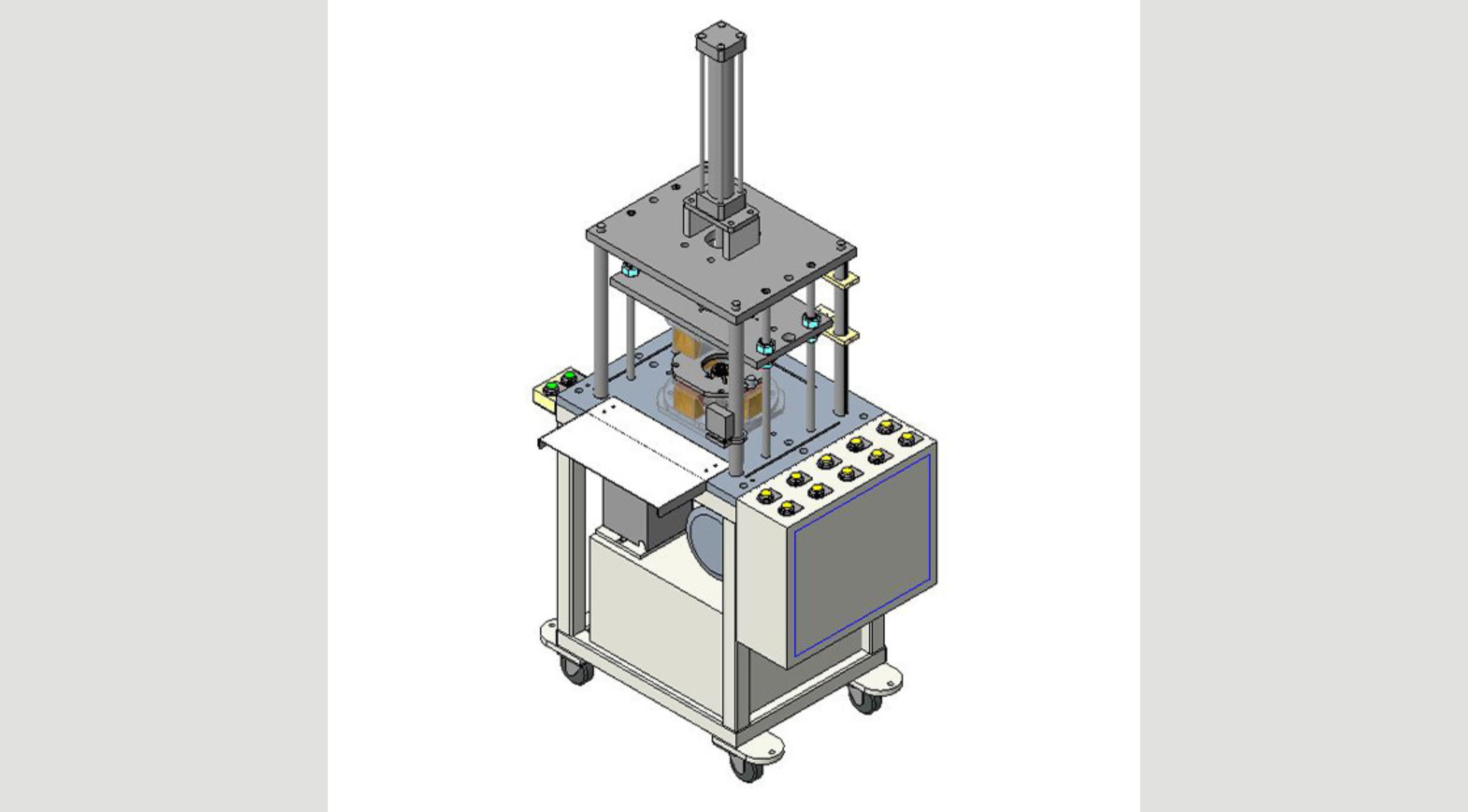

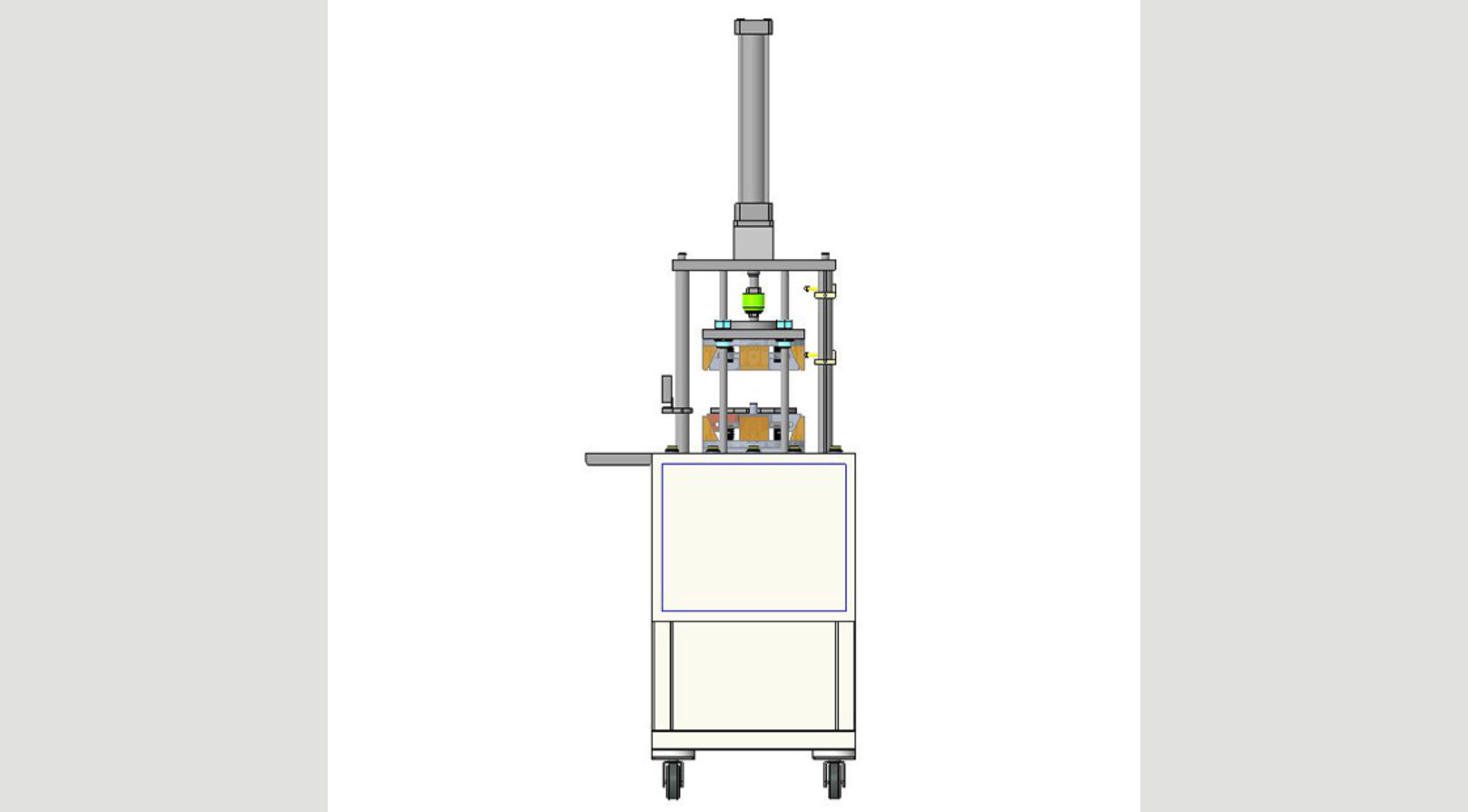

HYDRAULIC STATOR COIL 3RD FORMING MACHINE GMW F-3A

MODEL: GMWF-3A








Technical Information

Owing to the mis-shape of some motor coil spec during the dischange process, this machine is used to do the final shaping for the convenience of assemblying motor.

Specification GMW F-3A
Stator OD/ID Limit (mm) Ø40-120
Stator Core Length Limit (mm) 20-110
Cycle Time (sec) <20 sec/time
Floor Area (W*L*H) (cm)  85*70*200
Machine Weight (Kg) 250 kg
Main Operation Power Source (KW) 2.3
Max. Power Consumption (KW) 3.9
Pneumatic Source (Kg/cm²) NA
Use voltage Can be customized according to the voltage used in each country
