HYGIENIC DESIGN CYLINDER SMC HY□, HYD□

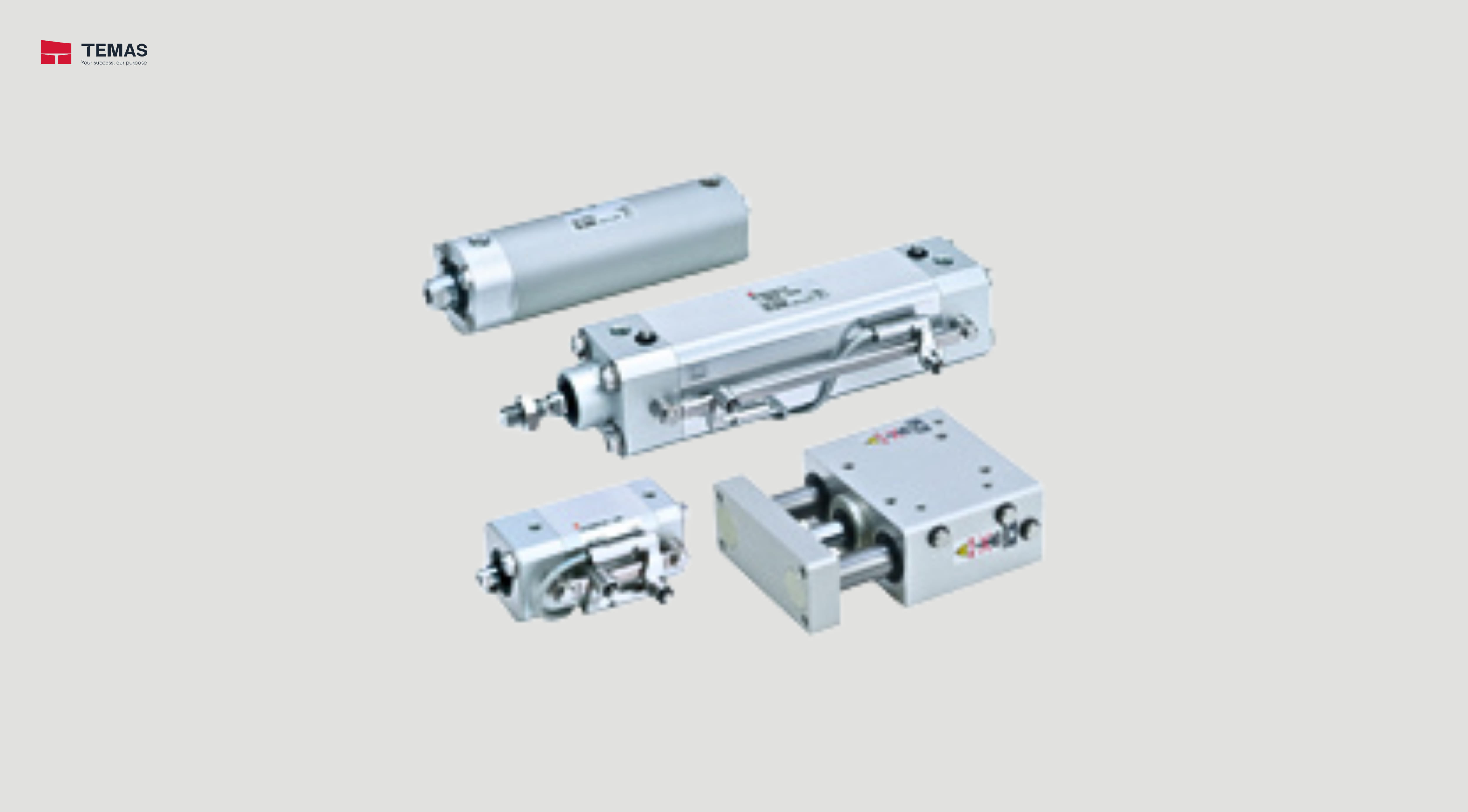

Hygienic Design Cylinder Round Type HYB Series Bore size: ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100


Technical Information

Type Series Action Bore size (mm)
Basic HYB Double acting, Single rod 20，25，32，40，50，63，80，100
Basic HYQ Double acting, Single rod 20，25，32，40，50，63
ISO Standard HYC Double acting, Single rod 32，40，50，63
With guide HYG Double acting 20，25，32，40，50，63
Specifications HY□, HYD□
Bore size (mm) 20 25 32 40 50 63 80 100
Action Double acting, Single rod
Fluid Air
Minimum operating pressure 0.2 MPa 0.15 MPa 0.07 MPa
Maximum operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient and operating fluid temperature Without auto switch: 0°C to 70°C
With auto switch: 0°C to 60°C
Lubrication Not required
Piston speed 50 to 500 mm/s (With pressure at 1.0 MPa)
Cushion Rubber bumper
Stroke length tolerance +1.4 mm
Piston rod material Stainless steel 304 / Hard chrome plated
