Technical Information

Type Series Action Bore size (mm)

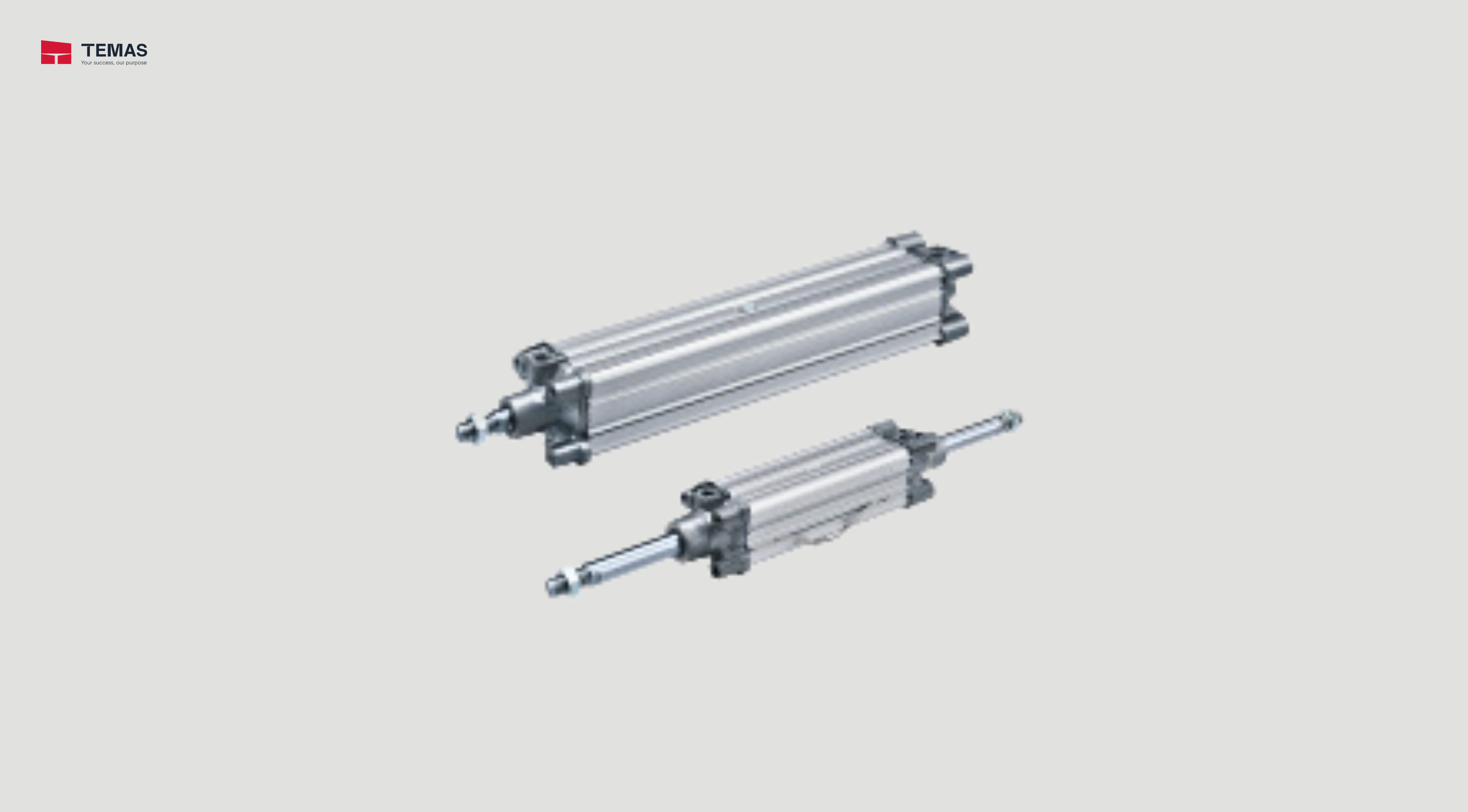

Standard C96 Double acting, Single rod
Double acting, Double rod
32,40,50,63,80,100,125
Non-rotating rod C96K Double acting, Single rod
Double acting, Double rod
32,40,50,63,80,100
Smooth cylinder C96Y Double acting, Single rod 32,40,50,63,80,100,125
Specifications C96, C96SD
Bore size [mm] 32 40 50 63 80 100 125
Action Double acting
Fluid
Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid
temperatures
Without auto switch: –20 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication

Not required (Non-lube)

Operating piston speed 50 to 1000 mm/s 50 to 700 mm/s



Allowable

stroke
tolerance
Up to 500 +2 +1
501 to 1000 +2.4 +1.4
1001 to 1500 +2.8 +1.8
1501 to 2000 +3.2 +2.2
Cushion Air cushion on both ends + Bumper cushion Air cushion
Port size
G 1/8 G 1/4 G 1/4 G 3/8
G 3/8 G 1/2
G 1/2
Mounting

Basic, Axial foot, Rod flange, Head flange, Single clevis,
Double clevis, Center trunnion, Adjustable position trunnion
