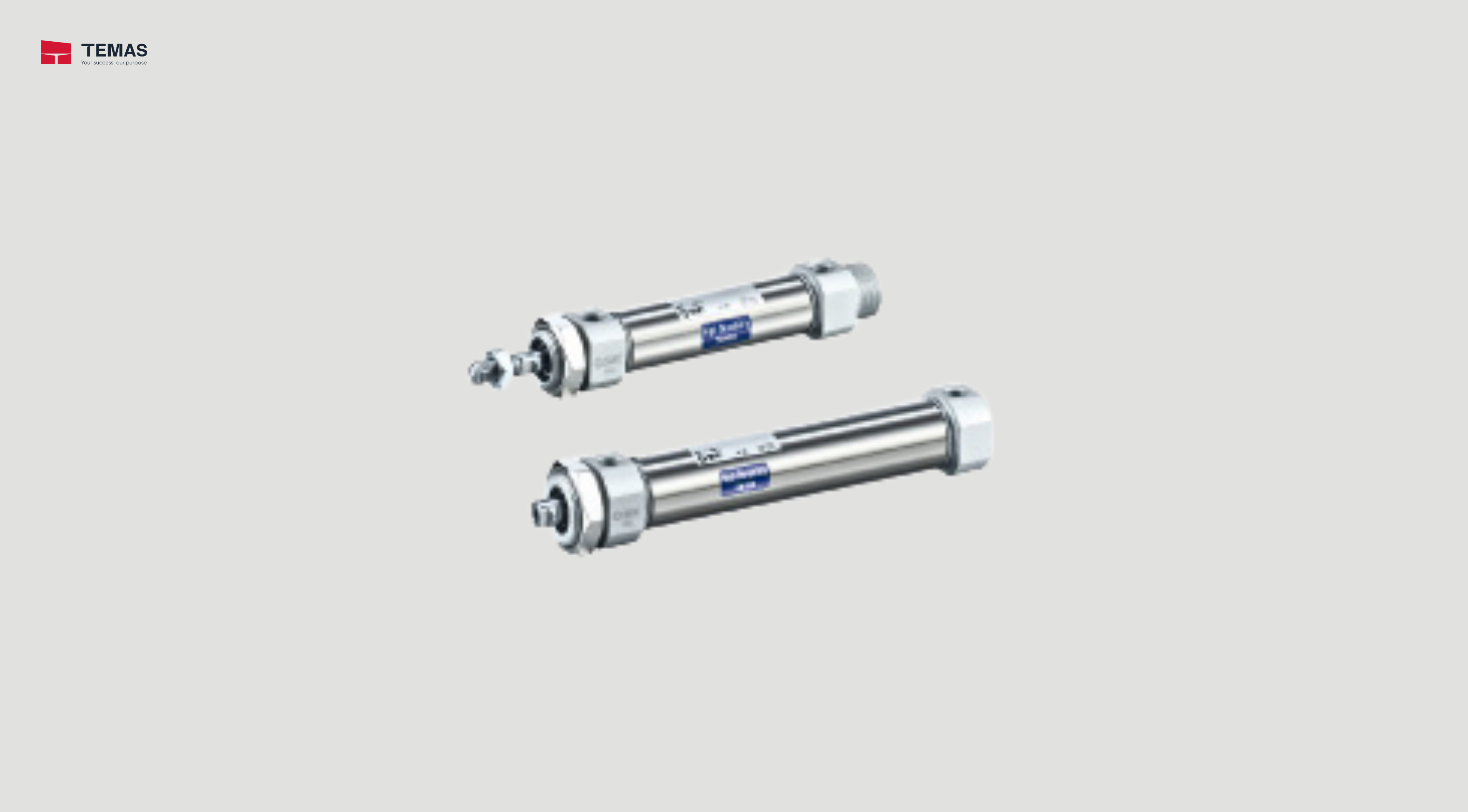

LONGER LIFE CYLINDER SMC CM2-XB24

Longer Life Cylinder: Double Acting, Single Rod CM2-XB24

Technical Information

Type Series Action Bore size (mm)
Standard CM2-XB24 Double acting, Single rod 20，25，32，40
Specifications
 CM2-XB24
Bore size (mm)
 20
 25
 32
 40
Type Pneumatic
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperatures

Without auto switch: −10°C to 70°C(No freezing)

With auto switch: −10°C to 60°C(No freezing)
Lubrication Not required (Non-lube)
Stroke length tolerance +1.4
 0 mm
Piston speed 50 to 750 mm/s
Cushion Rubber bumper
Allowable
kinetic energy		 Rubber bumper Male thread 0.27 J 0.4 J 0.65 J 1.2 J
Female thread 0.11 J 0.18 J 0.29 J 0.52 J
