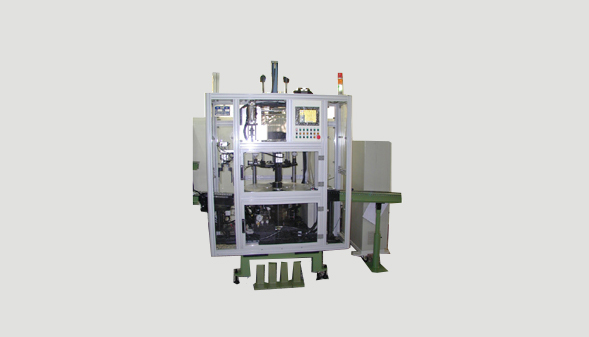

MAIN COIL PREFORMING MACHINE GMW F-7C

MODEL: GMWF-7C

MAIN COIL PREFORMING MACHINE GMW F-7C

This machine is designed to shape the coil between the steps of 1st coil insertion and 2nd coil insertion. Because of the adjustable and unique design of the model, it’s easier to perform the 2nd insertion and a prefect appearance can be achieved after shaping. Beside, application of the double-working space on the rotational panel can both save the operation time and improve the working efficiency.

download Request a quotation

Technical Information

STATOR OUTSIDE DIA.	Ø40 ~ Ø160mm
STATOR STACK HEIGHT	Ø20 ~ Ø150mm
POWER SUPPLY	220/380V , 3 Ø , 50/60HZ
DRIVE MOTOR	3 Ø , 5HP 油壓泵浦馬達
OPERATION	PLC + 彩色觸控人機介面
DIMENSION	190(L)110(W)210(H) cm
WEIGHT	1600Kgs
