Technical Information

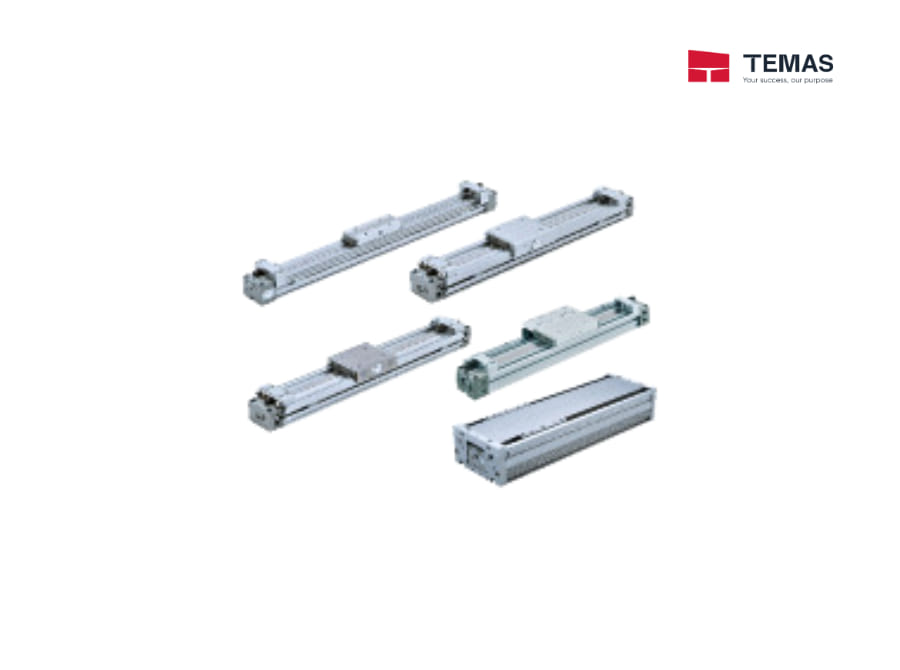

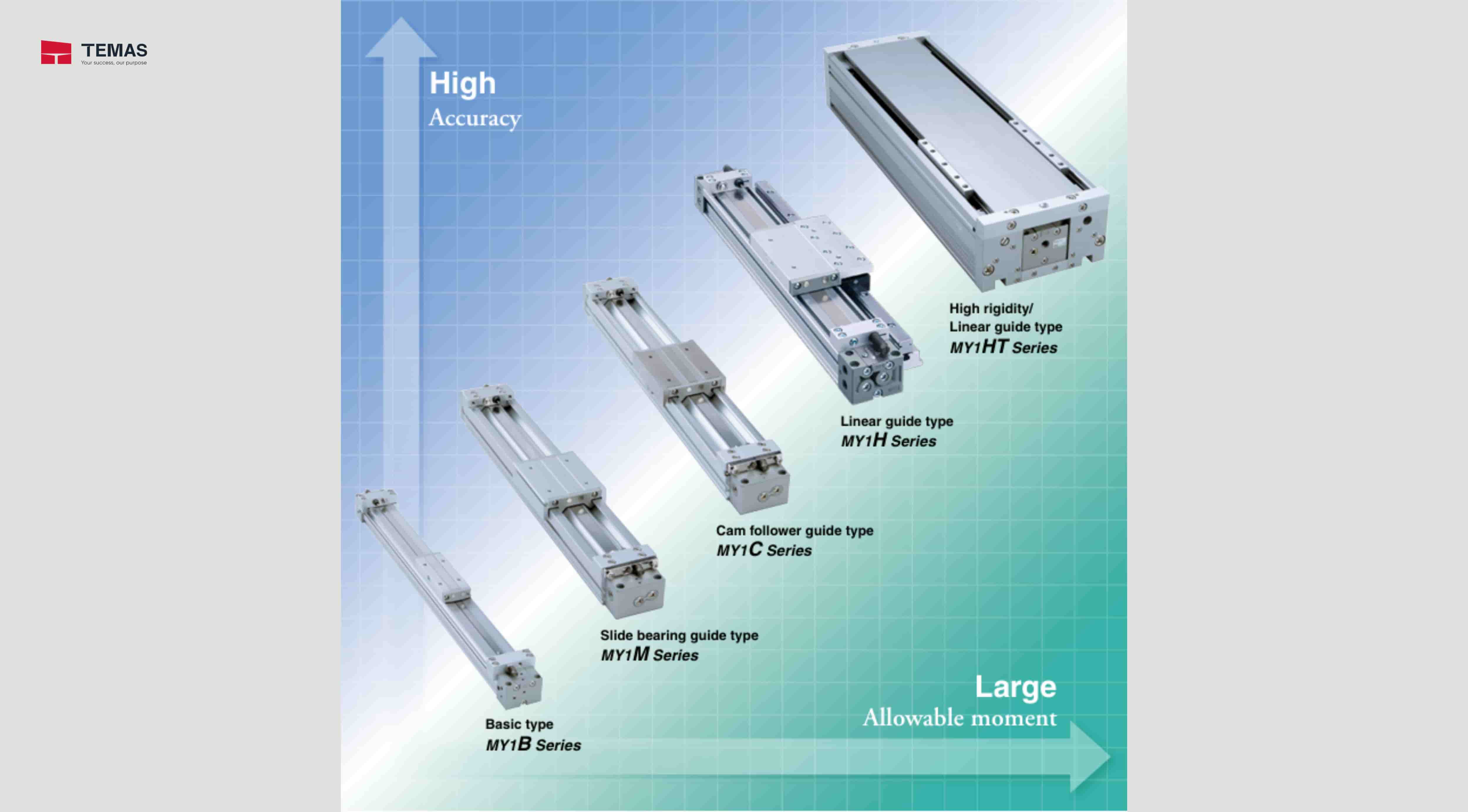

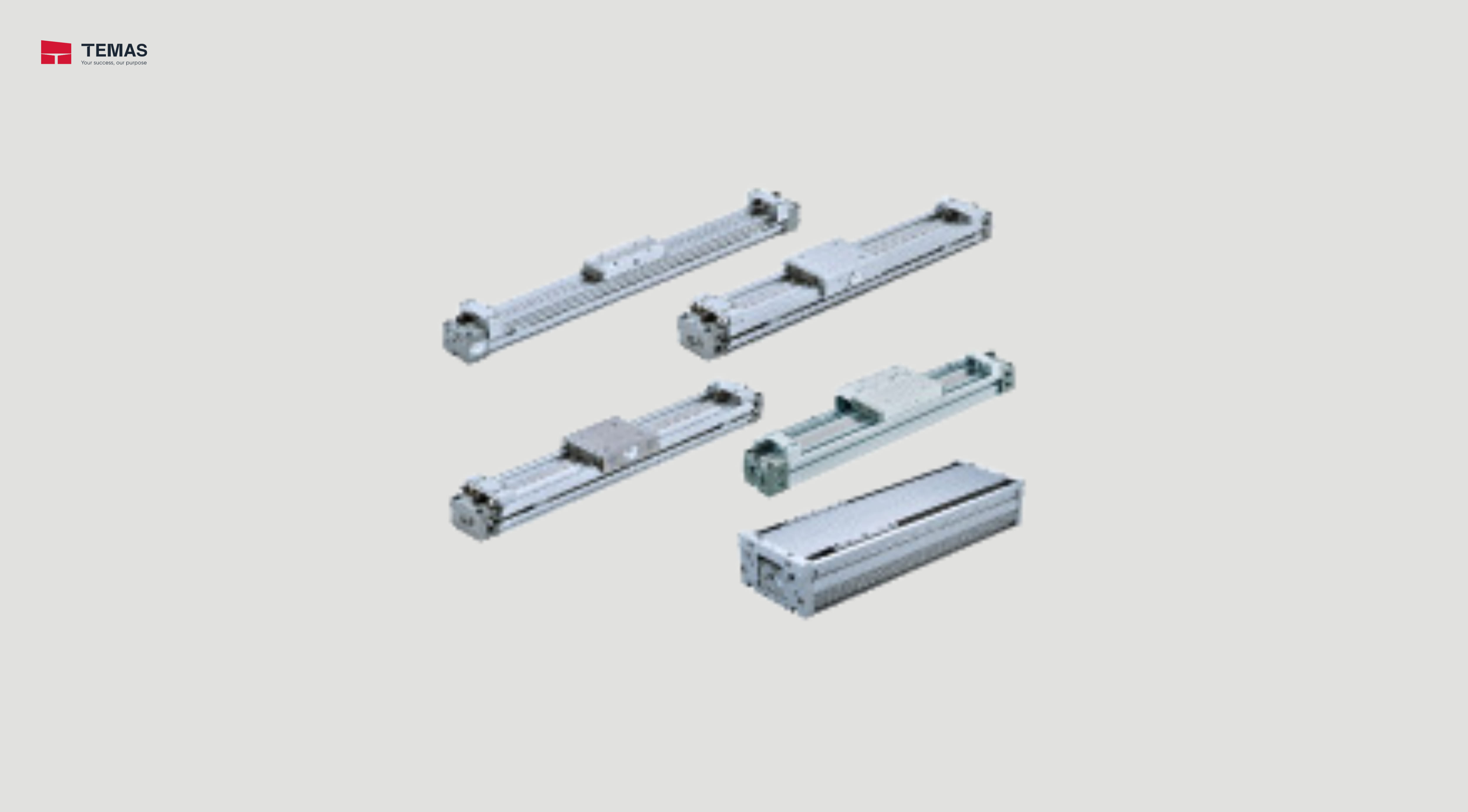

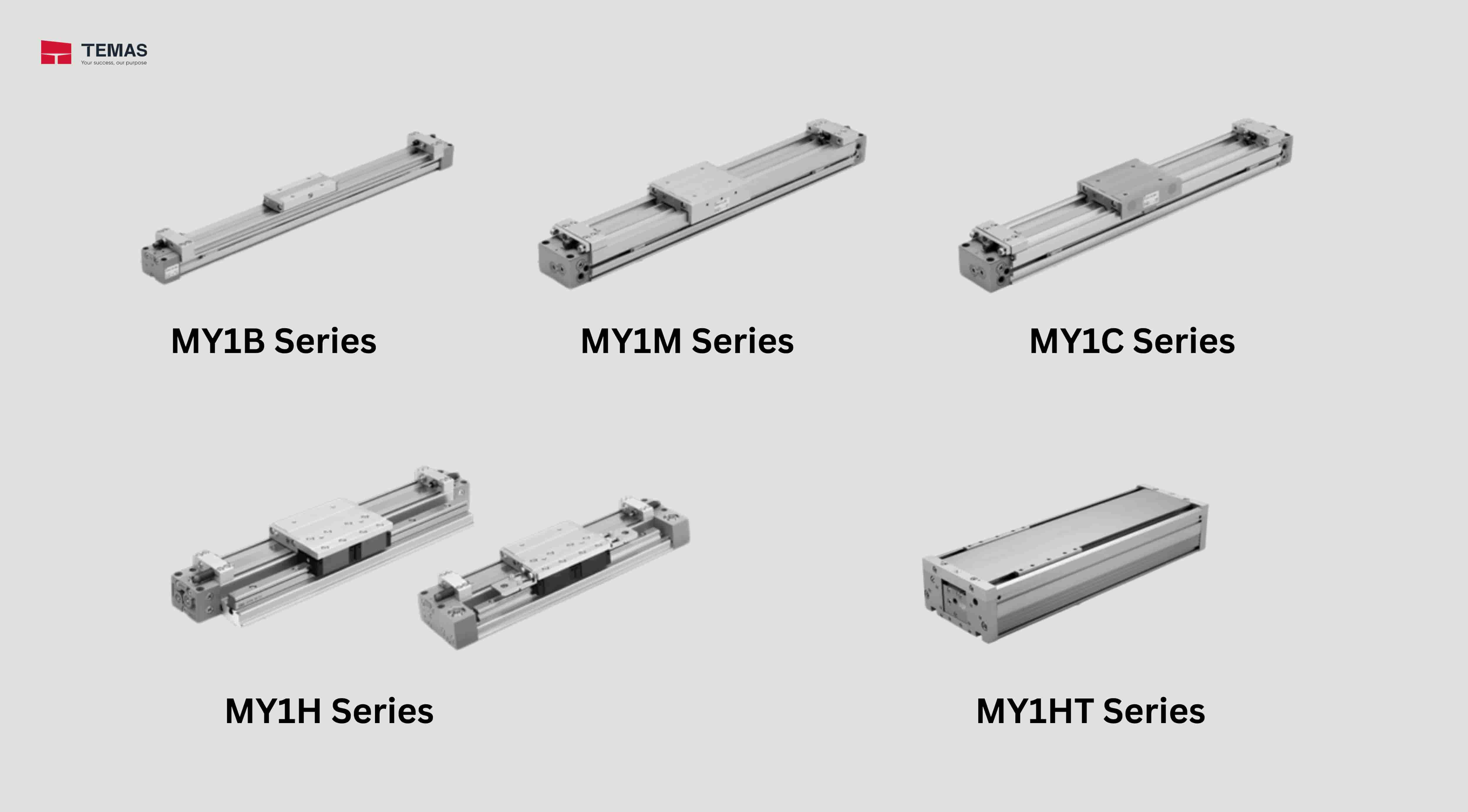

Type Series Action Bore size (mm)
Basic MY1B Double acting 10,16,20,25,32,40,50,63,80,100
Slide bearing MY1M Double acting 16,20,25,32,40,50,63
Cam follower guide MY1C Double acting 16,20,25,32,40,50,63
Linear guide MY1H Double acting 10,16,20,25,32,40
Linear guide MY1HT Double acting 50,63
Specifications MY1
Bore size [mm] 10 16 20 25 32 40 50 63 80 100
Fluid Air
Action Double acting
Operating pressure range 0.2 to 0.8 MPa 0.15 to 0.8 MPa 0.1 to 0.8 MPa
Proof pressure 1.2 MPa
Ambient and fluid temperatures 5 to 60°C
Cushion Rubber bumper Air cushion
Lubrication Non-lube
Stroke length tolerance

1000 or less +1.8 mm

1001 to 3000 +2.8 mm

2700 or less +1.8 mm, 2701 to 5000 +2.8 mm
Piping
port size
Front/Side port M5 x 0.8 1/8 1/4 3/8 1/2
Bottom port - ø4 ø6 ø8 ø10 ø18
