Technical Information

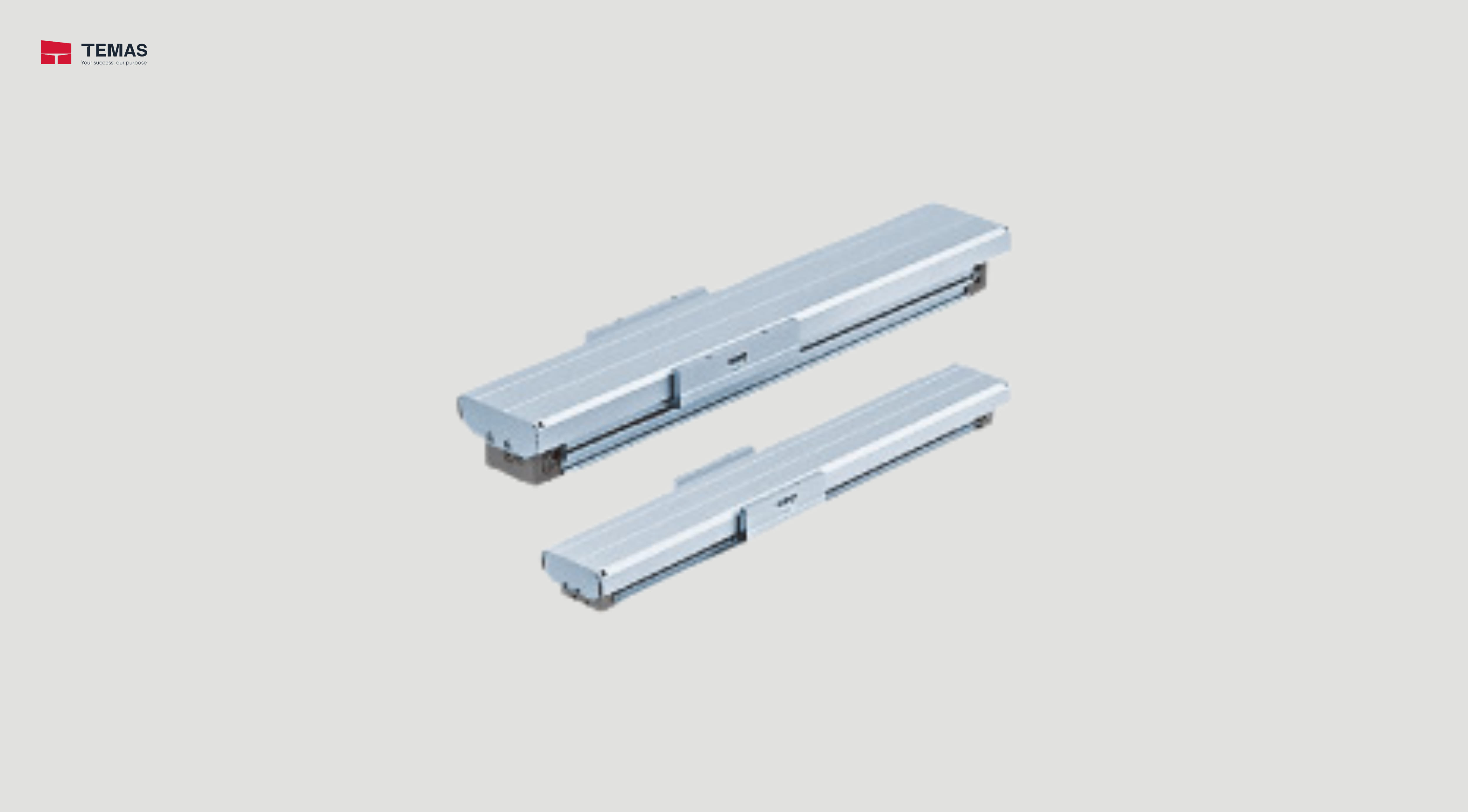

Type Series Action Bore size (mm)
Slide bearing MY1MW Double acting 16,20,25,32,40,50,63
Cam follower guide MY1CW Double acting 16,20,25,32,40,50,63
Specifications MY1W
Bore size [mm] 16 20 25 32 40 50 63
Fluid Air
Action Double acting
Operating pressure range MY1MW
0.2 to 0.8 MPa
0.15 to 0.8 MPa
MY1CW
0.15 to 0.8 MPa 0.1 to 0.8 MPa
Proof pressure 1.2 MPa
Ambient and fluid temperatures 5 to 60°C
Cushion Air cushion
Lubrication Non-lube
Stroke length tolerance

1000 or less +1.8 mm

1001 to 3000 +2.8 mm

2700 or less +1.8 mm, 2701 to 3000 +2.8 mm
Piping
port size
Front/Side port M5 x 0.8 Rc 1/8 Rc 1/4 Rc 3/8
Bottom port ø4 ø6 ø8 ø10
