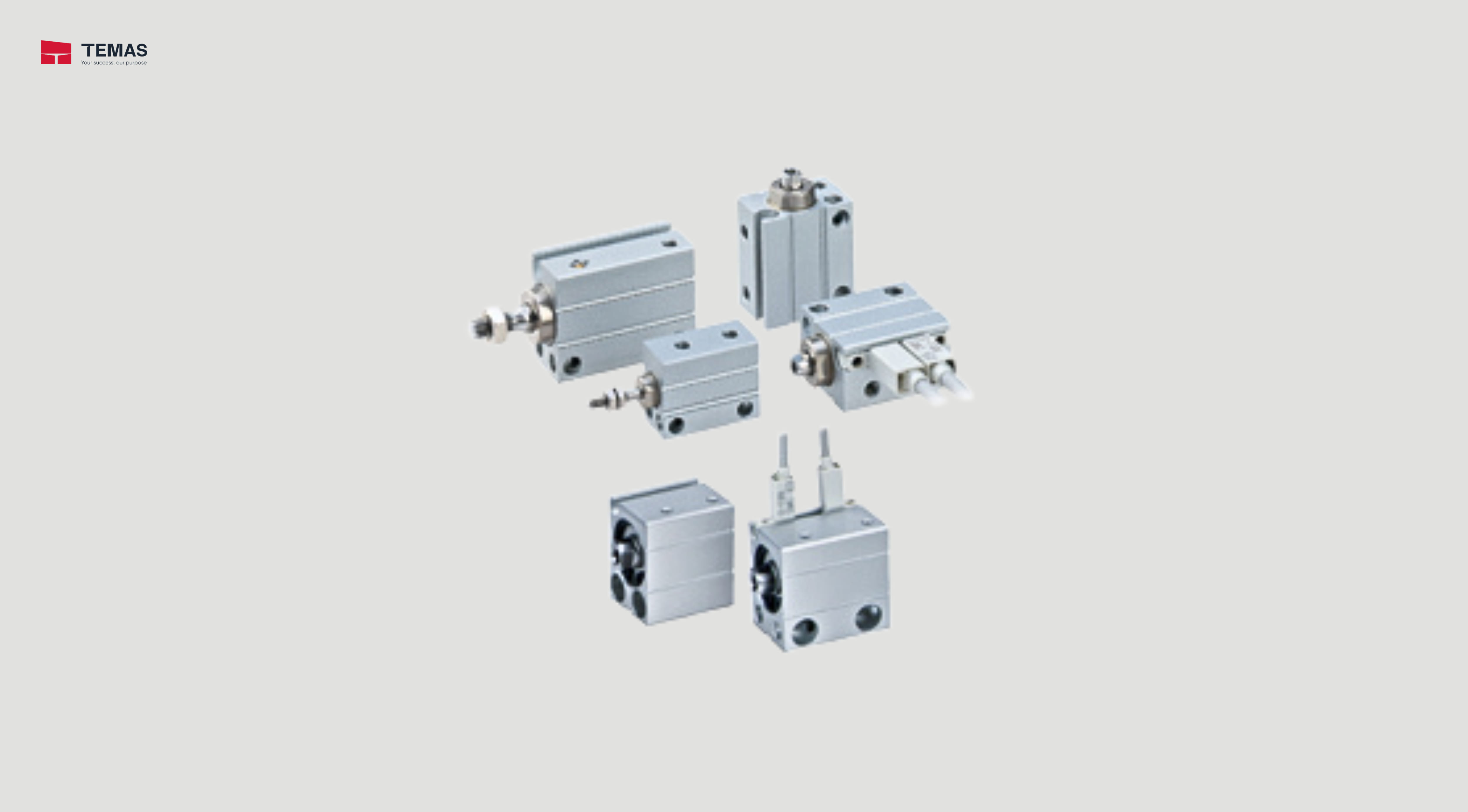

MINI FREE MOUNT SMC CYLINDER CUJ, CDUJ

Mini Free Mount Cylinder ø4, ø6, ø8, ø10 CUJ Series

Technical Information

Type Series Action Bore size (mm)
Standard CUJ Double acting, Single rod 4，6，8，10，12，16，20
Standard CUJ Single acting (Spring return) 4，6，8，10，12，16，20
Specifications CUJ, CDUJ
Bore size (mm) 4 6 8 10
Action Double acting; Single acting, spring return
Fluid Air
Proof pressure 1.05 MPa
Minimum operating pressure Double acting 0.15 MPa 0.1 MPa
Single acting, spring return 0.35 MPa 0.3 MPa 0.2 MPa
Maximum operating pressure 0.7 MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Cushion None
Lubrication Non-lube
Piston speed 50 to 500 mm/s
Stroke length tolerance +0.5
Mounting Through-hole
