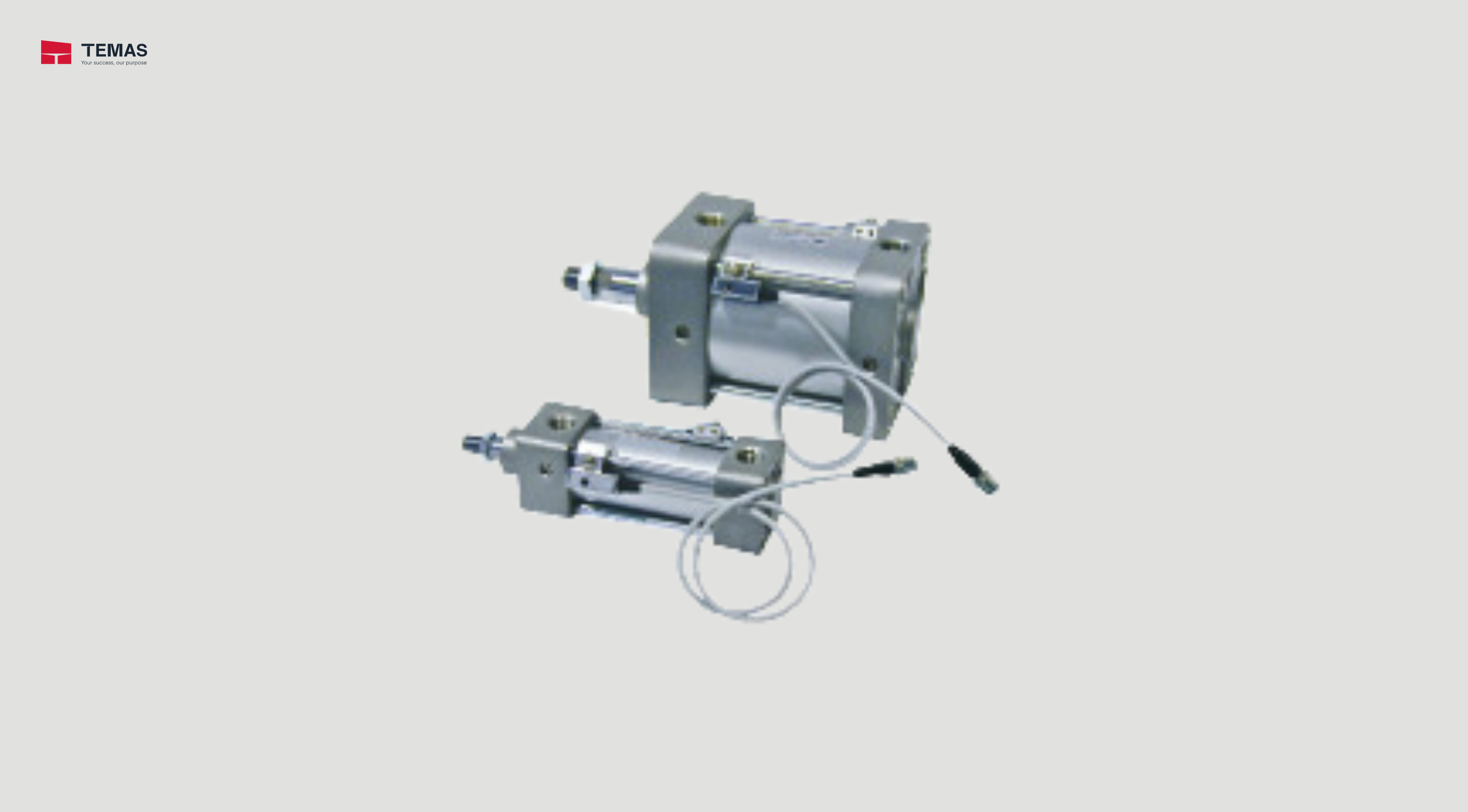

| Specifications | NCA1 | ||
|---|---|---|---|
| Type | Standard | Double Rod | Non-Rotating Rod |
| Fluid | Air | ||
| Lubrication | Non-lube | ||
| Max. Operating Pressure | 250psi (1.75MPa) | 250 psi (1.75MPa) | 250 psi∗ (1.75Mpa) |
| Min. Operating Pressure | 8 psi (0.06MPa) | 8 psi (0.06MPa) | 15 psi (0.1MPa) |
| Ambient and Fluid Temp. | 40 to 140F° (5 to 60°C) | 40 to 140°F (5 to 60°C) | 40 to 140°F (5 to 60°C) |
| Piston Speed | 2 to 20in/s (50 to 500mm/s) |
2 to 20in/s (50 to 500mm/s) |
2 to 20in/s (50 to 500mm/s) |
| Mounting | Basic, Foot Front and Rear Flange Side Tapped, Clevis Center Trunnion, Side Lug Rod and Head Trunnion |
Basic , Foot Flange Side Tapped Center and Rod Trunnion |
Basic, Foot Front and Rear Flange Side Tapped, Clevis Center Trunnion, Side Lug Rod and Head Trunnion |
| Non-Rotating Accuracy | n/a | n/a | ±0.50° |
