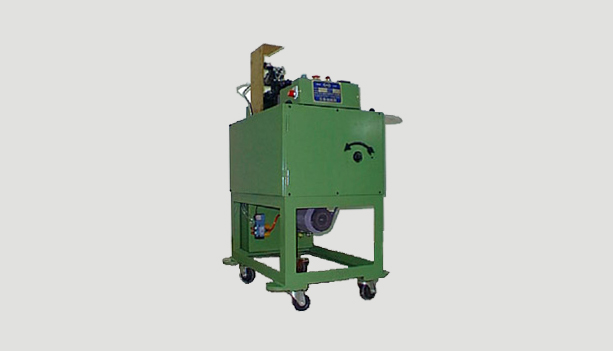

ROTOR SLOT WEDGE INSERTER GMW CF-1B

MODEL: GMWCF-1B

Technical Information

The only thing operator has to do is to load and unload the rotor on the core nest and depress button to start inserting. Then , the operation inserting wedge is finish.
This machine has a robust construction and has been designed compactly, it can extend the limit of machine and be easy to arrange to production line.

ROTOR OUTSIDE DIA. 22-50mm
ROTOR STACK HEIGHT 10-40 mm
NUMBER OF SLOTS 8-24Slots
INSULATION FILM THICKNESS 0.3-0.5 mm
INSERTING SPEED 0.75 Sec./Slot
POWER SUPPLY
AC 220V/380V , 3 PHASE 50/60HZ
DRIVER MOTOR
AC 1/2HP Motor
DIMENSION
90(L) * 85(W) * 120(H) cm
WEIGHT 400Kgs
