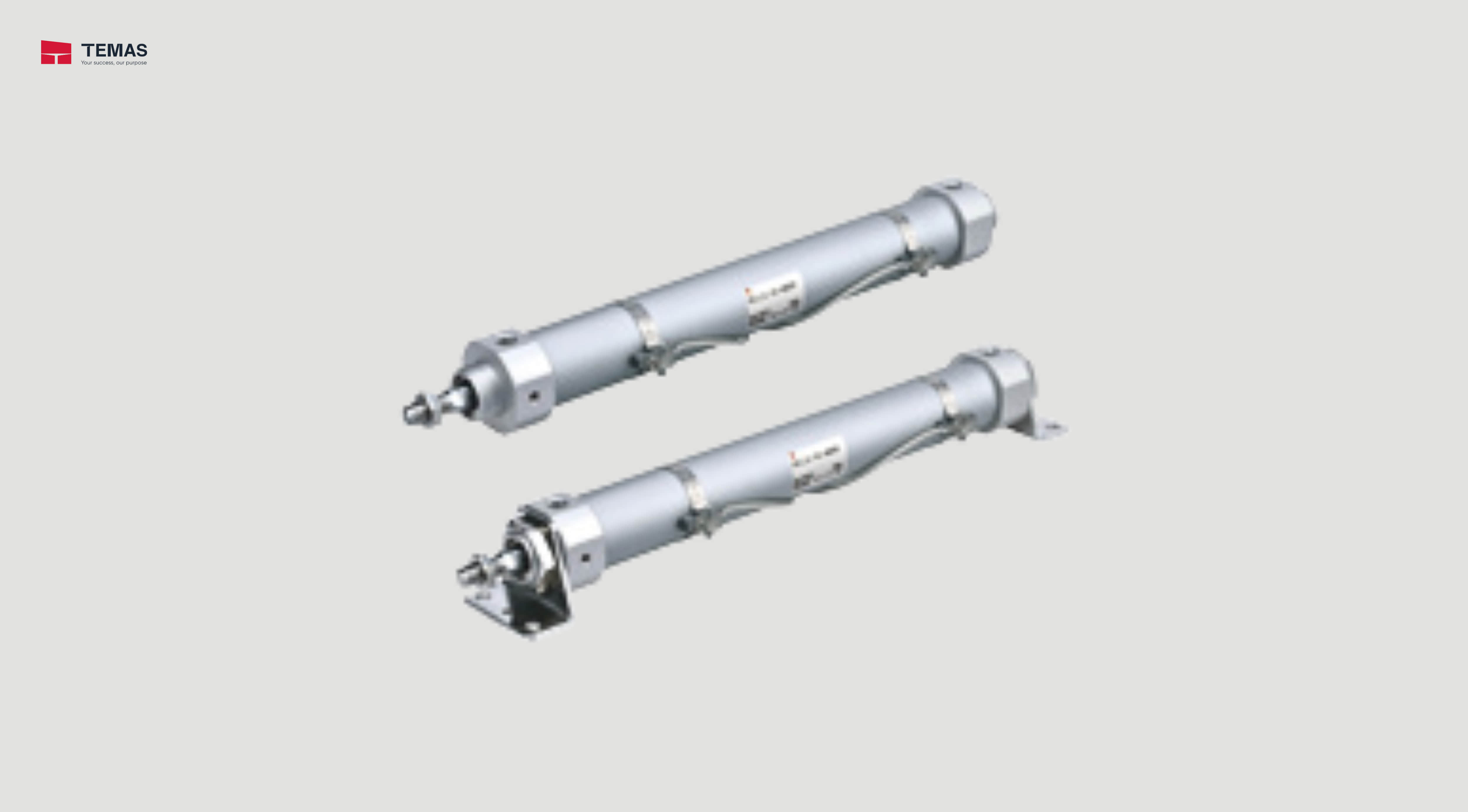

SINE CYLINDER SMC REC

Sine Cylinder SMC REC Series bore size: ø20, ø25, ø32, ø40

Technical Information

REC
Bore size (mm)  20 25 32 40
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.2 MPa
Ambient and fluid temperature –10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Air cushion (End rubber bumper)
Effective cushioning stroke (mm) 45 45 50 60
Lubrication Not required (Non-lube)
Stroke length tolerance Up to 1000 st: +1.4 mm, 1001 st to 1500: +1.8 mm
