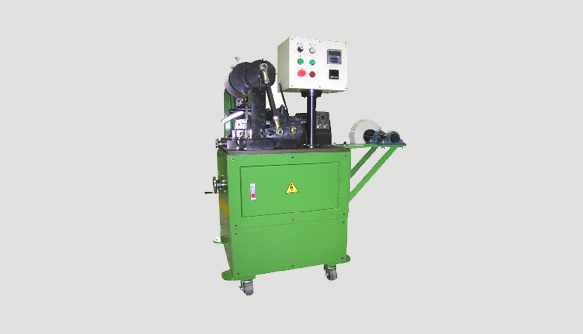

SLOT INSULATOR MAKING MACHINE GMW CS-4A

MODEL: GMWCS-4A

Technical Information

This machine has a robust construction and has been designed compactly, it can extend the limit of machine and be easy to arrange to production line.

INSULATION FILM THICKNESS
0.188~0.3 mm
FEED LENGTH 26~55 mm
THE WIDTH OF CUTTING 25~200 mm
HEAT OF THE TEMPERATURE 100-200º
HEATER
220/380V,500W
SPEED OF CUTTING
1 Sec./PCS/60HZ
POWER SUPPLY
220/380V 3PHASE 50/60HZ
DRIVER MOTOR
AC 1HP MOTOR
DIMENSION
80*115*133 cm
WEIGHT 410Kgs
