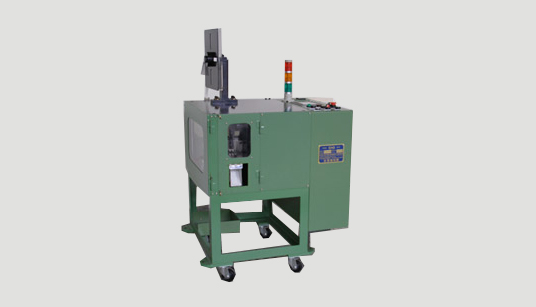

SLOT WEDGE MAKING MACHINE GMW CF-2A

MODEL: GMWCF-2A

Technical Information

This machine has a robust construction and has been designed compactly, it can extend the limit of machine and be easy to arrange to production line.

FEED LENGTH 1~999mm
HEAT OF THE TEMPERATURE 100-150º
WEDGE FILM THICKNESS
0.188–0.5 mm
HEATER
220/380V,300W
SPEED OF CUTTING
0.55 Sec./PCS/50HZ
POWER SUPPLY
AC 220/380V 3PHASE 50/60HZ
GEAR MOTOR
AC 380/440V, 90W 1/9 3 PHASE 60HZ
FEEDING
2-PHASE STEPPING MOTOR
DIMENSION
73(L) * 88(W) * 134(H) cm
WEIGHT 300Kgs
