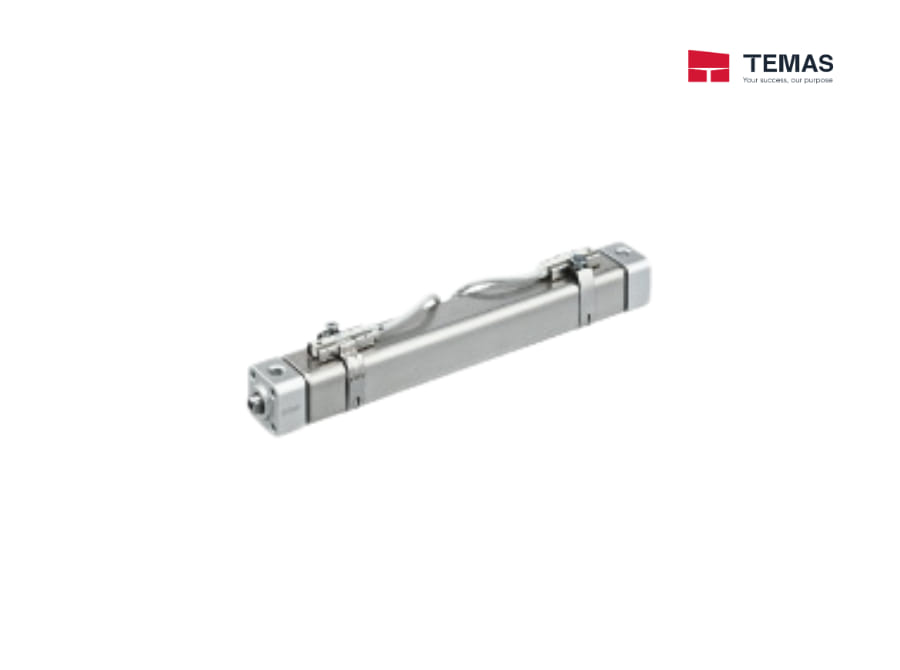

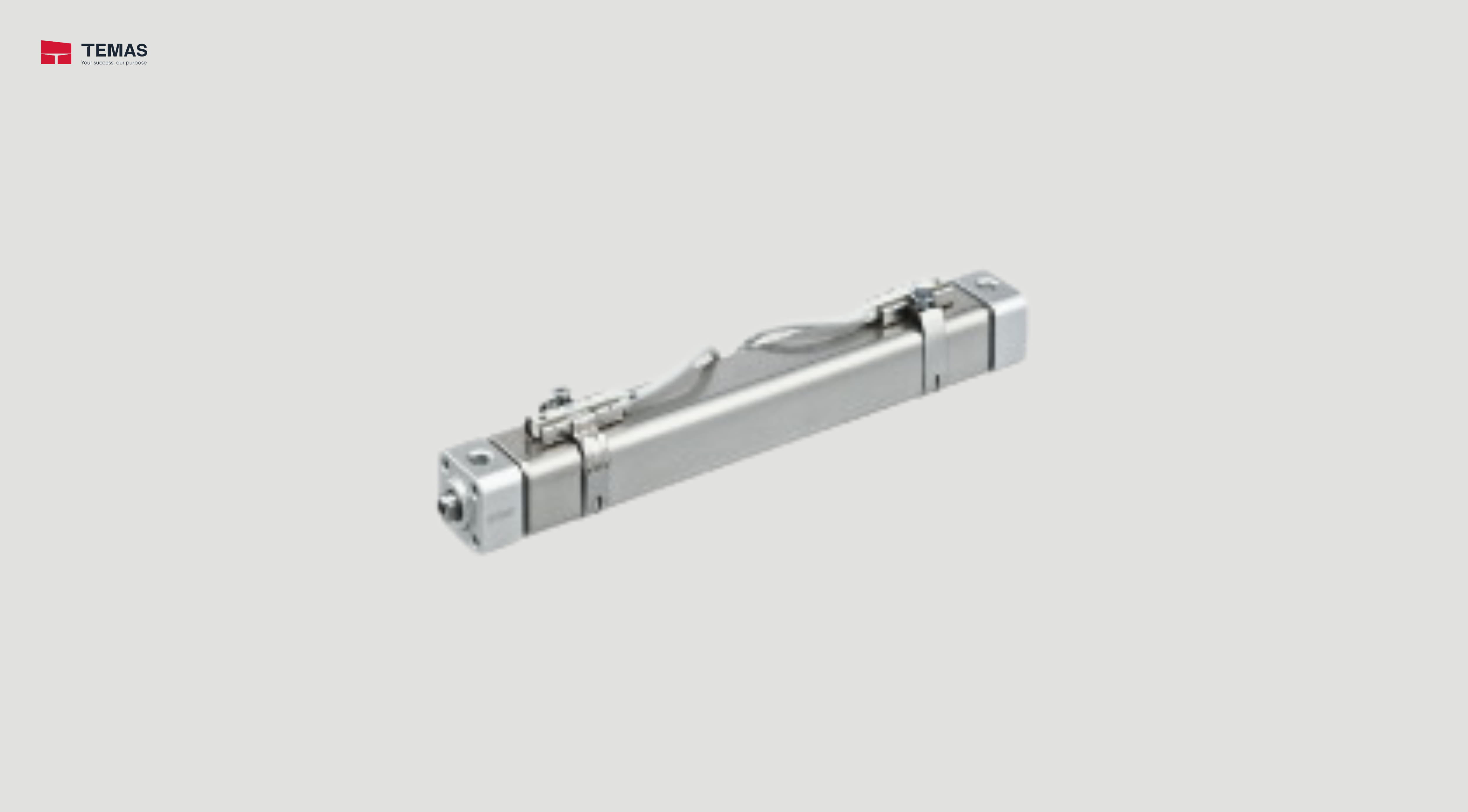

SQUARE SHAPE COMPACT CYLINDER CU-X3160

Square Shape Compact Cylinder CU-X3160 Size ø20

Technical Information

Type Series Action Bore size (mm)
Standard CU-X3160 Double acting single rod 20
Specifications CU-X3160
Size 20 (Equiv. ø20 piston area)
Action Double acting, Single rod
Fluid Air
Proof pressure 1.0 MPa
Max. operating pressure 0.7 MP
Min. operating pressure 0.05 MPa
Ambient and fluid
temperatures

Without auto switch: 5 to 70°C (No freezing)

With auto switch : 5 to 60°C (No freezing)
Lubrication Not required (Non-lube)
Piston speed 50 to 500 mm/s
Stroke length tolerance +2.0
Cushion Rubber bumper
Allowable kinetic energy 0.11 J
Port size M5
Mounting Basic (Female threads on both covers)
