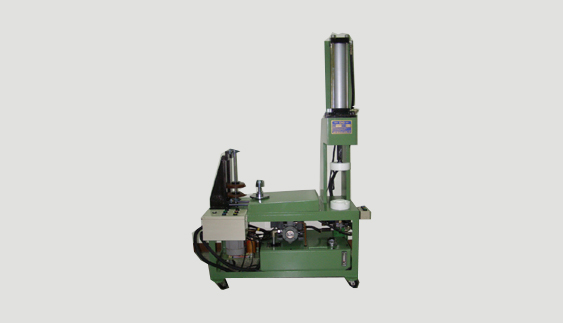

STATOR COIL FORMING MACHINE GMW F-4B

MODEL: GMWF-4B

Technical Information

It can prevent short circuit from touching with motor box. Furthermore, improve the quality of motor. This machine has a solid construction, it does not only minimize it’s occupying space, but also offer trouble- free and long- life operation.

STATOR OUTSIDE DIA. 90 ~ 220 mm
STATOR STACK HEIGHT 20-190 mm
POWER SUPPLY 220/380V 3Ø 50/60HZ
DRIVE MOTOR AC 3KW Motor
OPERATION Hydraulic
DIMENSION 100(L)×50(W)×215(H)cm
WEIGHT 250Kgs
