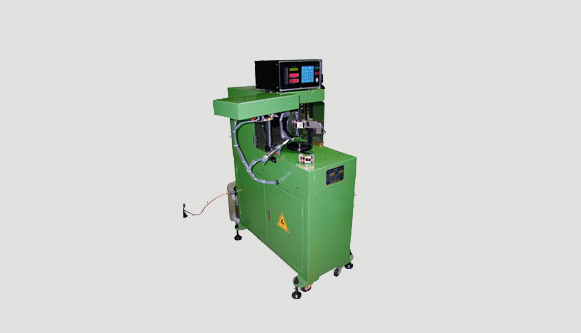

STATOR COIL WINDING MACHINE GMW C-8B

MODEL: GMWC-8B

Technical Information

Main spindle is driven by AC servomotor which accelerates and decelerates very rapidly. It contains hysteresis-brake tension control unit that ensures the accuracy of winding tension.

WIRE DIAMETER 0.05 – 0.4 mm
WINDING ANGLE 0度 - 180 度
STATOR INSIDE DIA. 30 – 80 MM
STATOR STACK HEIGHT 20 – 40 MM
CONTROL Microprocessor Control AC Servomotor & Stepping Motor
WINDING STEPS 99 Steps * 40 Groups
POWER SUPPLY 220V , 1, 50/60 HZ
PHNEUMATIC POWER SUPPLY 5 KG/CM²
DRIVER MOTOR 1.5 KW AC Servo motor
DIMENSION 135(L) * 185(W) * 155(H) cm
WEIGHT 400Kgs
