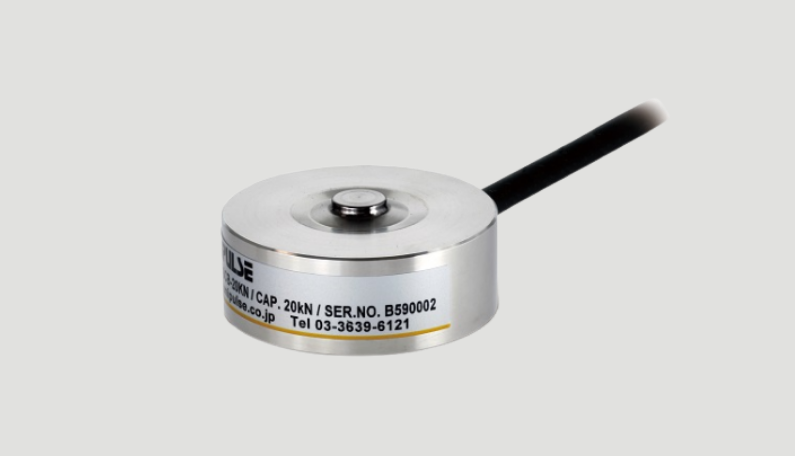

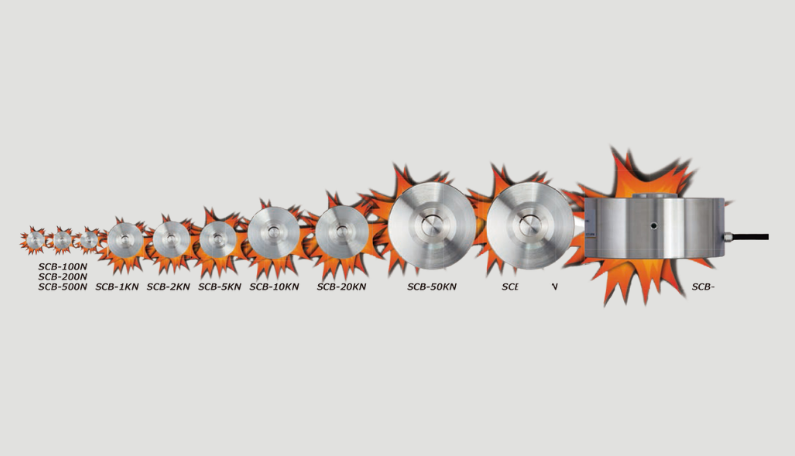

| Model | SCB-□KN ※1 | Unit | ||||||||||
| Rated capacity | 100 | 200 | 500 | 1k | 2k | 5k | 10k | 20k | 50k | 100k | 200k | N |
| Rated output | 0.4±0.1% ※2 | mV/V | ||||||||||
| Safe overload | 500 | %R.C.500 | ||||||||||
| Zero balance | ±0.2 | %R.O. | ||||||||||
| Non-linearity | 0.2 | %R.O. | ||||||||||
| Hysteresis | 0.2 | %R.O. | ||||||||||
| Repeatability | 0.1 | %R.O. | ||||||||||
| Compensated temperature range | -10 to +60 | ℃ | ||||||||||
| Safe temperature range | -20 to +70 | ℃ | ||||||||||
| Temperature effect on zero | 0.015 | %R.O./℃ | ||||||||||
| Temperature effect on zero | 0.01 | %R.O./℃ | ||||||||||
| Input resistance | Approx. 700 | Approx. 1000 | Ω | |||||||||
| Output resistance | Approx. 700 | Approx. 1000 | Ω | |||||||||
| Recommended excitation voltage | 5 | 10 | V | |||||||||
| Max. excitation voltage | 7.5 | 15 | V | |||||||||
| Insulation resistance (DC50V) | 1000 or more | MΩ | ||||||||||
| Deflection at rated capacity | 0.015 | 0.015 | 0.015 | 0.015 | 0.020 | 0.025 | 0.025 | 0.035 | 0.065 | 0.100 | 0.100 | mm |
| Natural frequency | 40 | 26 | 15 | 8 | kHz | |||||||
| Loadcell material | Stainless steel | |||||||||||
| Weight | 0.02 | 0.2 | 0.4 | 2.0 | 2.3 | 8.2 | kg | |||||
| Cable color code | ＋EXC : Red ＋S : Yellow －S : Orange －EXC : Black ＋SIG : Green －SIG : White SHIELD : Blue |
|||||||||||
※1 □:Rated capacity
※2 There are several restrictions on the flatness of fitting surface, the thickness of mounting plate, and tightening torque.
