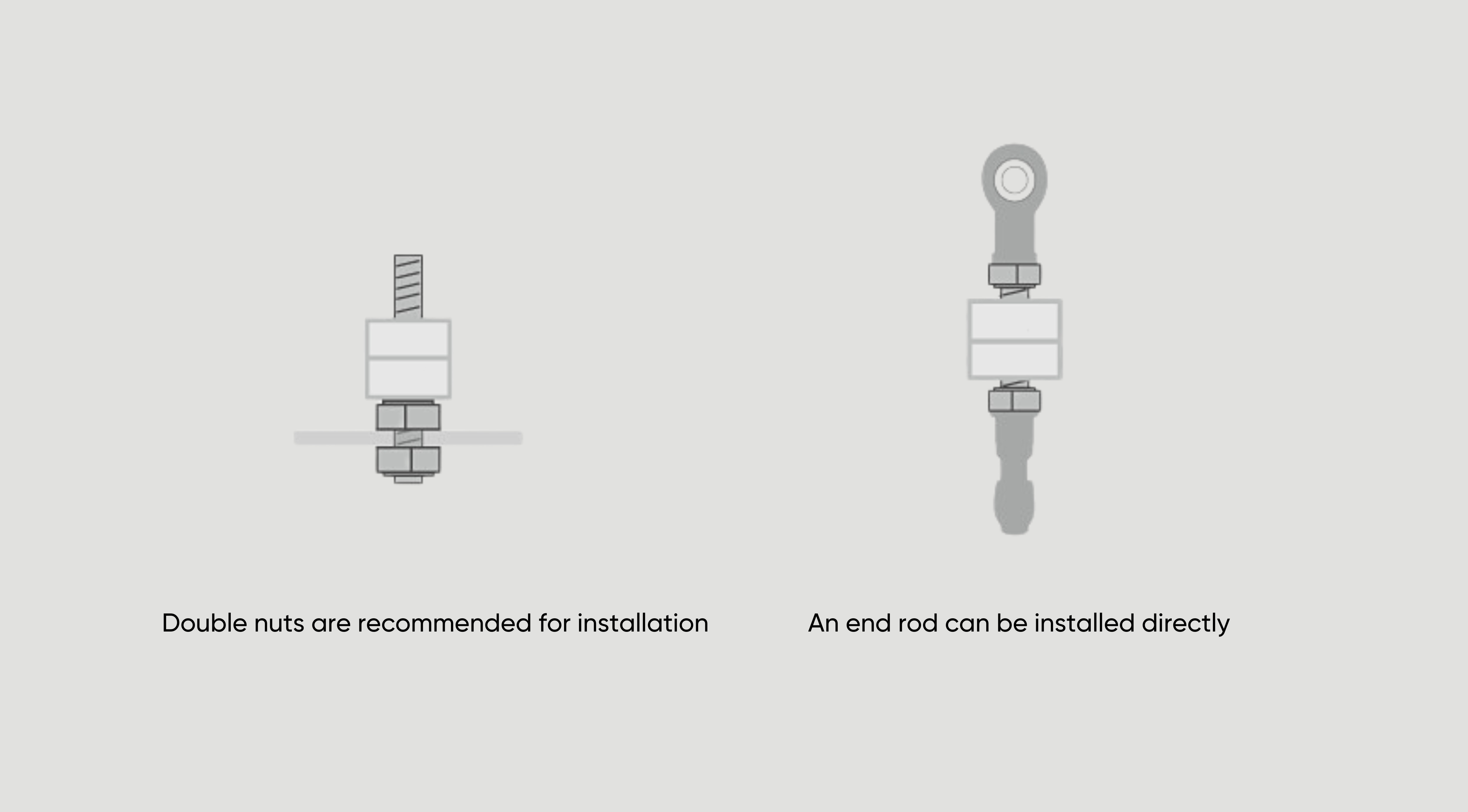

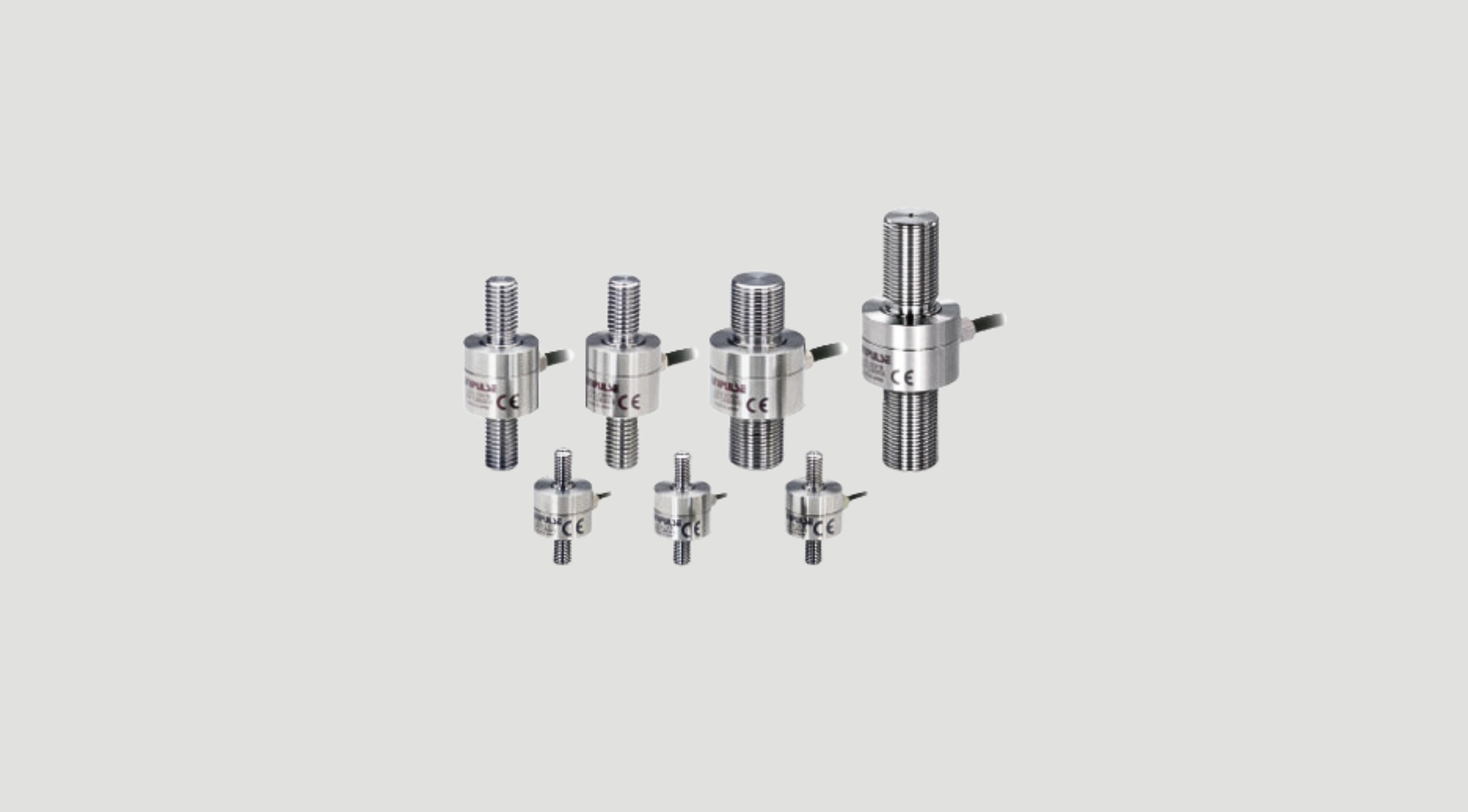

Tension and compression load cell Unipulse UIS - Easy-to-install threaded-type with male screws

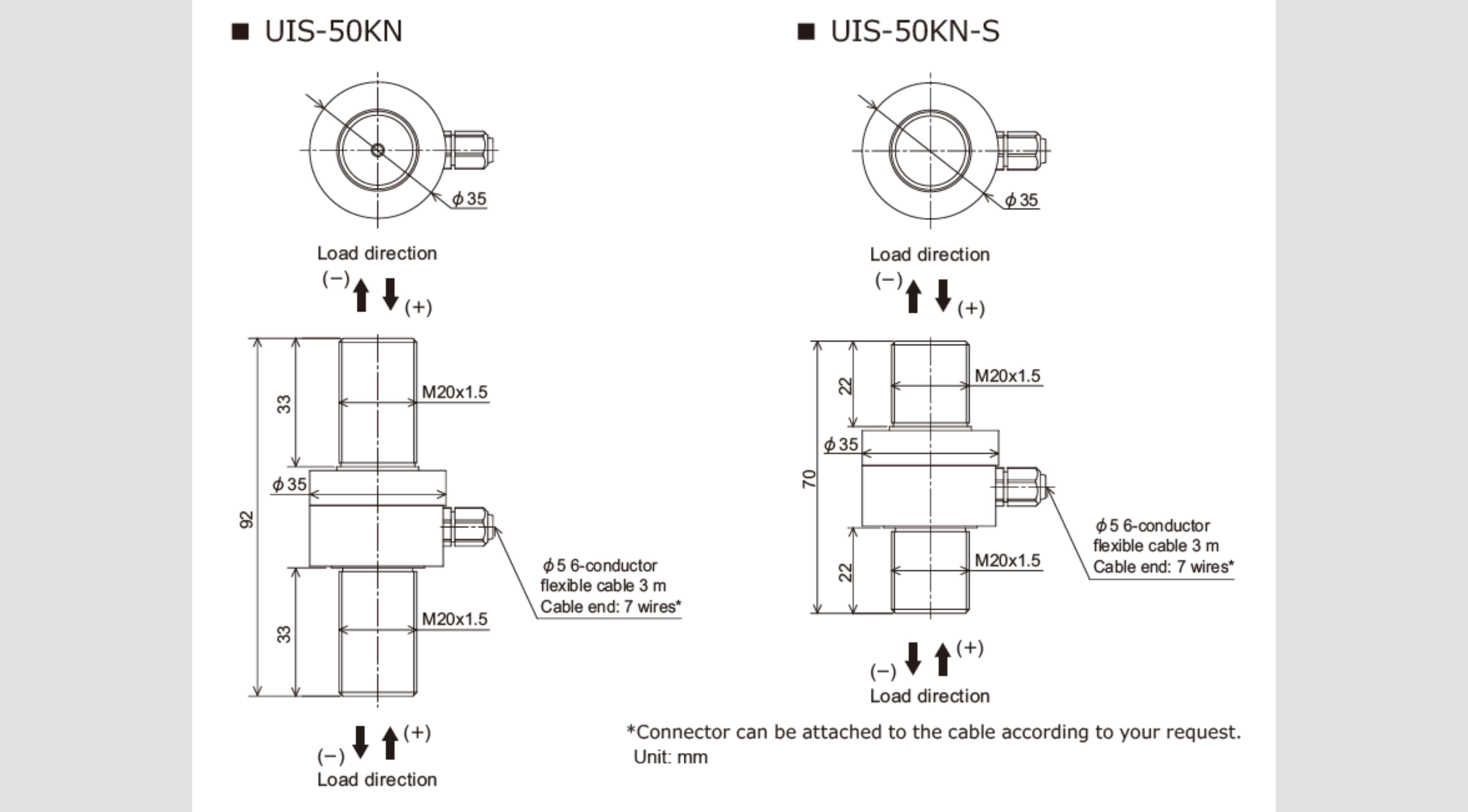

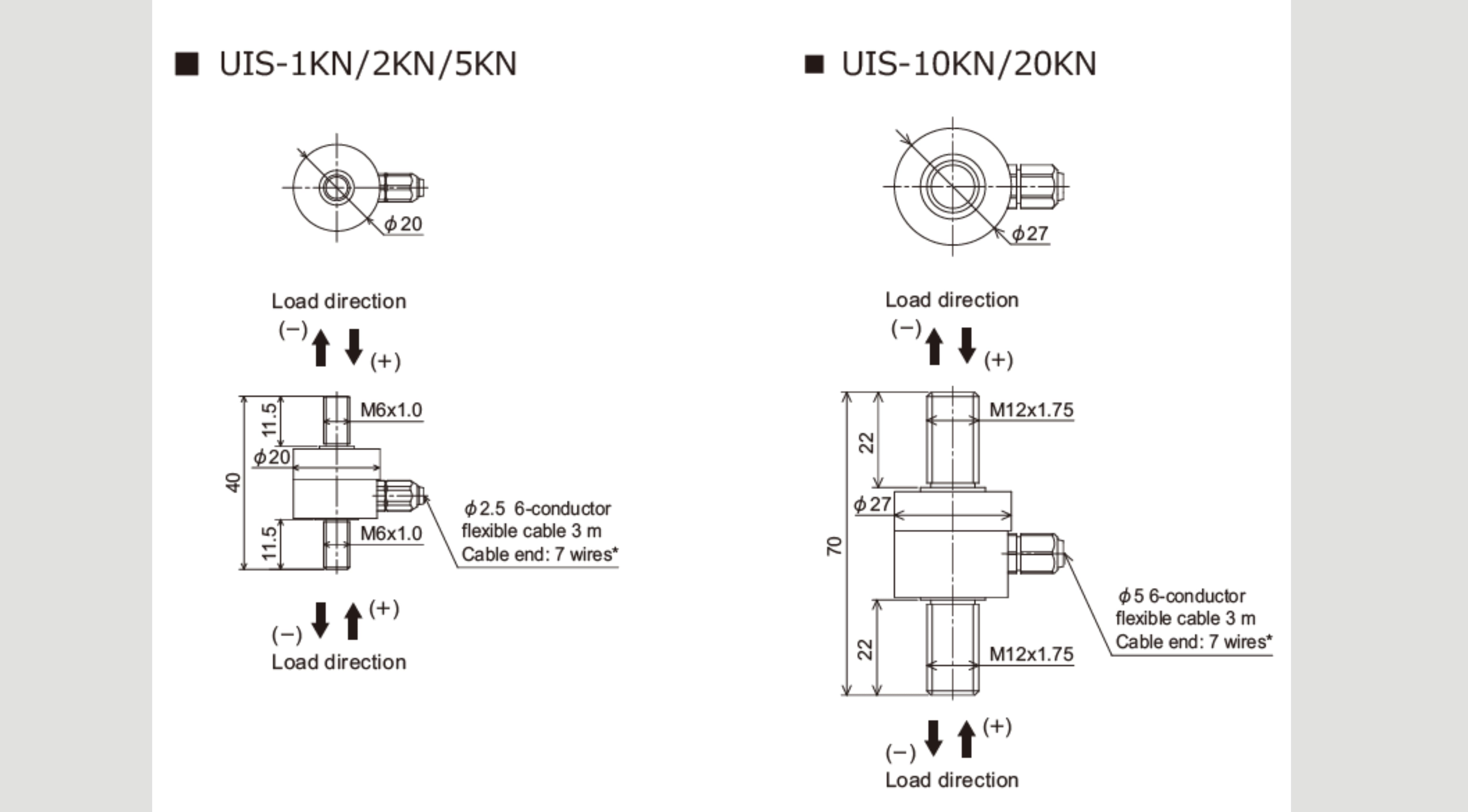

Model: UIS-1KN, UIS-2KN, UIS-5KN, UIS-10KN, UIS-20KN, UIS-50KN, UIS-50KN-S
Model | UIS-1KN | UIS-2KN | UIS-5KN | UIS-10KN | UIS-20KN | UIS-50KN | UIS-50KN-S |
---|---|---|---|---|---|---|---|
Rated capacity | 1 kN | 2 kN | 5 kN | 10 kN | 20 kN | 50 kN | 50 kN |
Rated output | Approx. 1.0 mV/V | ||||||
Safe overload | 300% R.C. | ||||||
Zero balance | ±10% R.O. | ||||||
Non-linearity | 0.2% or less R.O. | ||||||
Hysteresis | 0.2% or less R.O. | ||||||
Repeatability | 0.1% or less R.O. | ||||||
Compensated temperature range | -10 to +60℃ | ||||||
Safe temperature range |
-20 to +70℃ | ||||||
Temperature effect on zero | 0.5% R.O./10℃ or below | ||||||
Temperature effect on span | 0.5% R.O./10℃ or below | ||||||
Input resistance | Approx. 1000 Ω | ||||||
Output resistance | Approx. 1000 Ω | ||||||
Recommended excitation voltage |
5 V | ||||||
Maximum excitation voltage |
7.5 V | ||||||
Insulation resistance (DC 50 V) |
1000 MΩ or more | ||||||

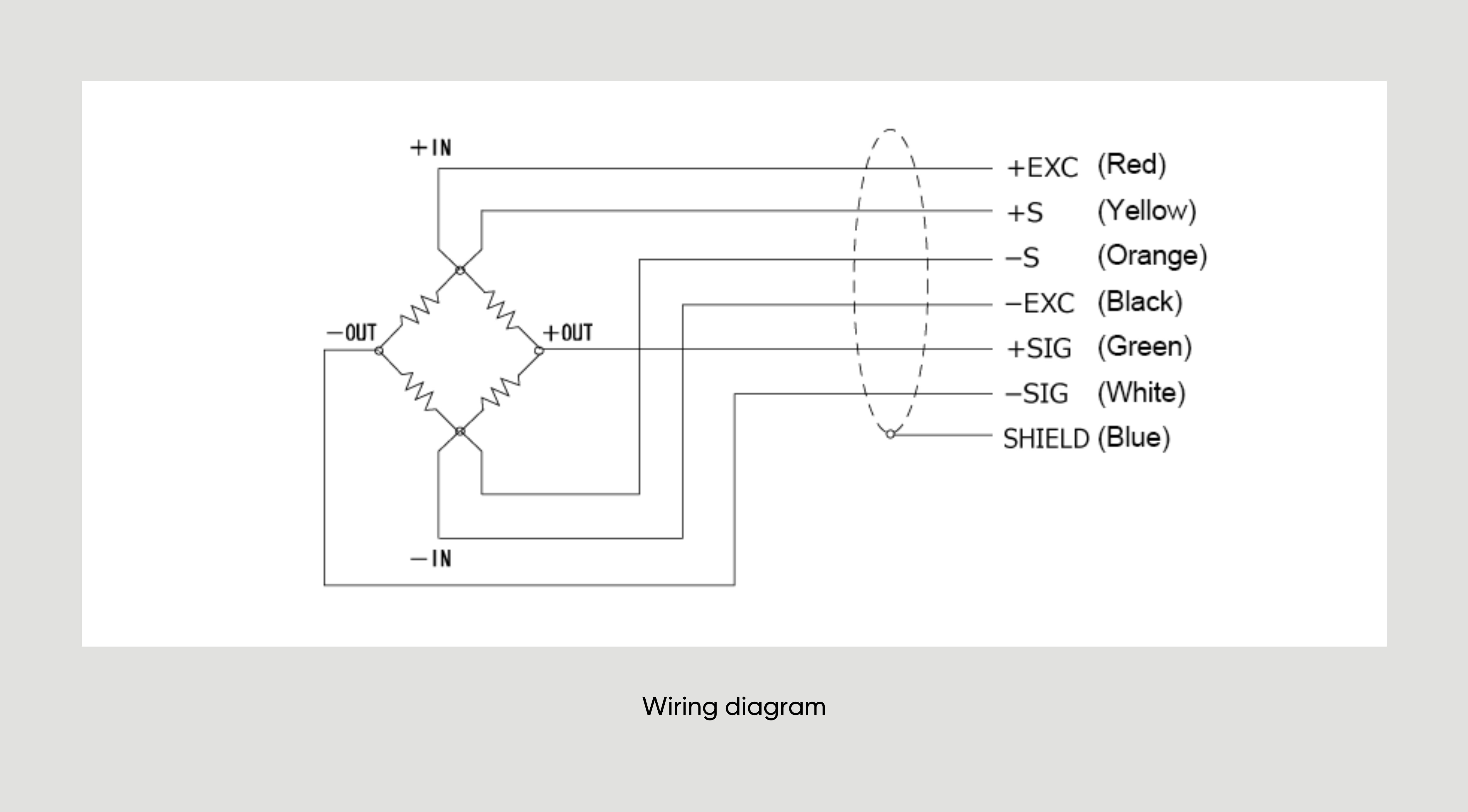

Cable | φ2.5 6 conductor flexible cable (3 m) Cable end: 7 wires |
||||||
Load cell material | Stainless steel | ||||||
Deflection at rated | 0.015 mm | 0.014 mm | 0.021 mm | 0.025 mm | 0.040 mm | 0.070 mm | 0.050 mm |
Natural frequency | 2 kHz | 3 kHz | 5 kHz | 15 kHz | 15 kHz | 13 kHz | 16 kHz |
Weight | Approx. 30 g | Approx. 100 g |
Approx. 100 g |
Approx. 260 g |
Approx. 210 g |
