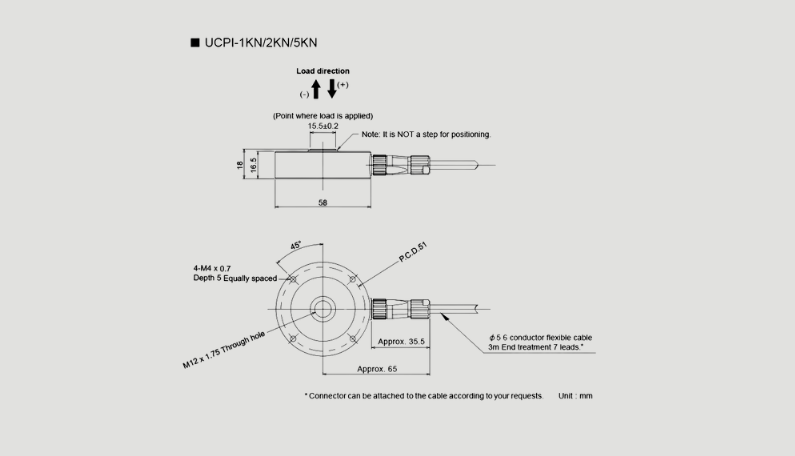

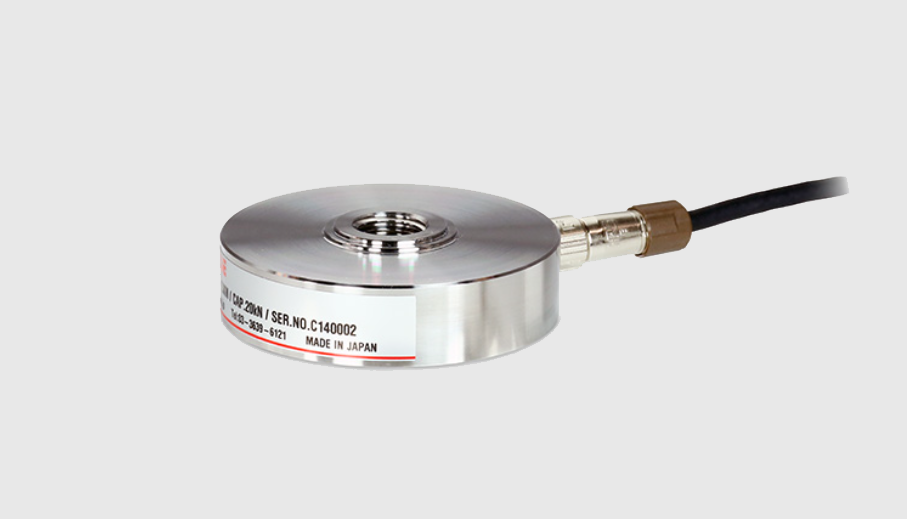

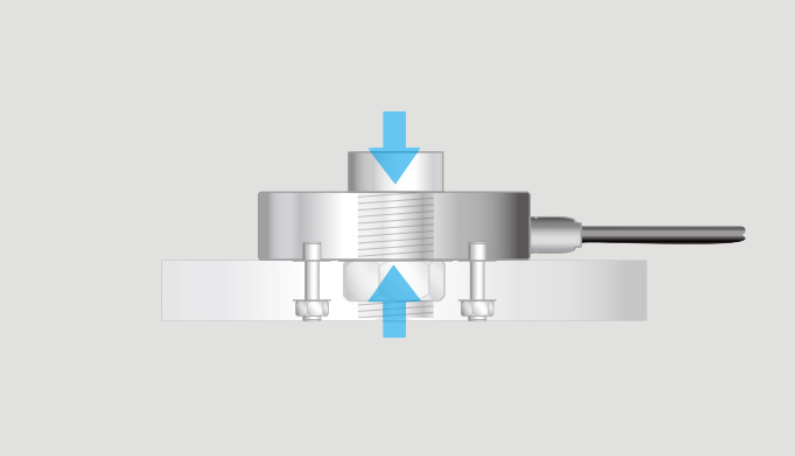

Tension/compression & center-hole type load cell

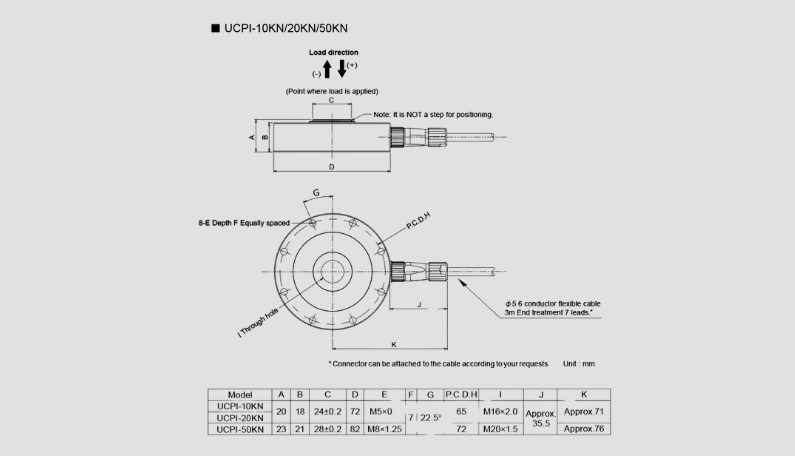

Model: UCPI-1KN, UCPI-2KN, UCPI-5KN, UCPI-10KN, UCPI-20KN, UCPI-50KN
Model | UCPI-1KN | UCPI-2KN | UCPI-5KN | UCPI-10KN | UCPI-20KN | UCPI-50KN |
Rated capacity | 1kN | 2kN | 5kN | 10kN | 20kN | 50kN |
Rated output | Approx. 2mV/V |
|||||
Safe overload | 150%R.C. |
|||||
Zero balance | ±10%R.O. |
|||||
Non-linearity | 0.1% R.O. or less |
0.15%R.O. or less | ||||
Hysteresis | 0.1% R.O. or less |
0.15%R.O. or less | ||||
Repeatability | 0.1% R.O. or less |
|||||
Compensated temperature range |
-10 to +60℃ |
|||||
Safe temperature range | -20 to +70℃ |
|||||
Temperature effect on zero | 0.1%R.O/10℃ or less |
|||||
Temperature effect on span | 0.1%R.O/10℃ hoặc nhỏ hơn |
|||||
Input resistance | Approx. 1000Ω |
|||||
Output resistance | Approx. 1000Ω |
|||||
Recommended excitation voltage |
10V |
|||||
Maximum excitation voltage |
15V |
|||||
Insulation resistance | 1000MΩ or more |
|||||

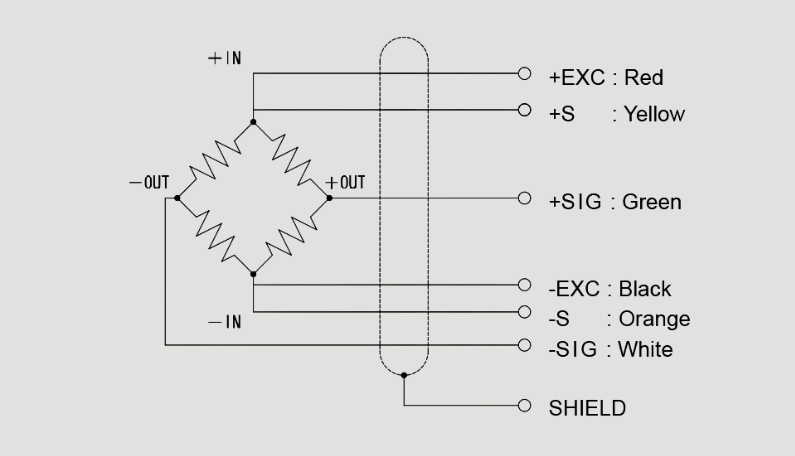

Cable | φ5 6 conductor flexible cable 3m End treatment 7 leads. |
|||||
Loadcell material | Stainless steel | |||||
Deflection at rated | 0.05 mm | 0.06 mm | 0.04 mm | 0.05 mm | 0.06 mm | |
Natural frequency | 5kHz | 7k Hz | 10kHz | 10kHz | 13kHz | 13kHz |
Weight | 350g |
410g | 630g |
