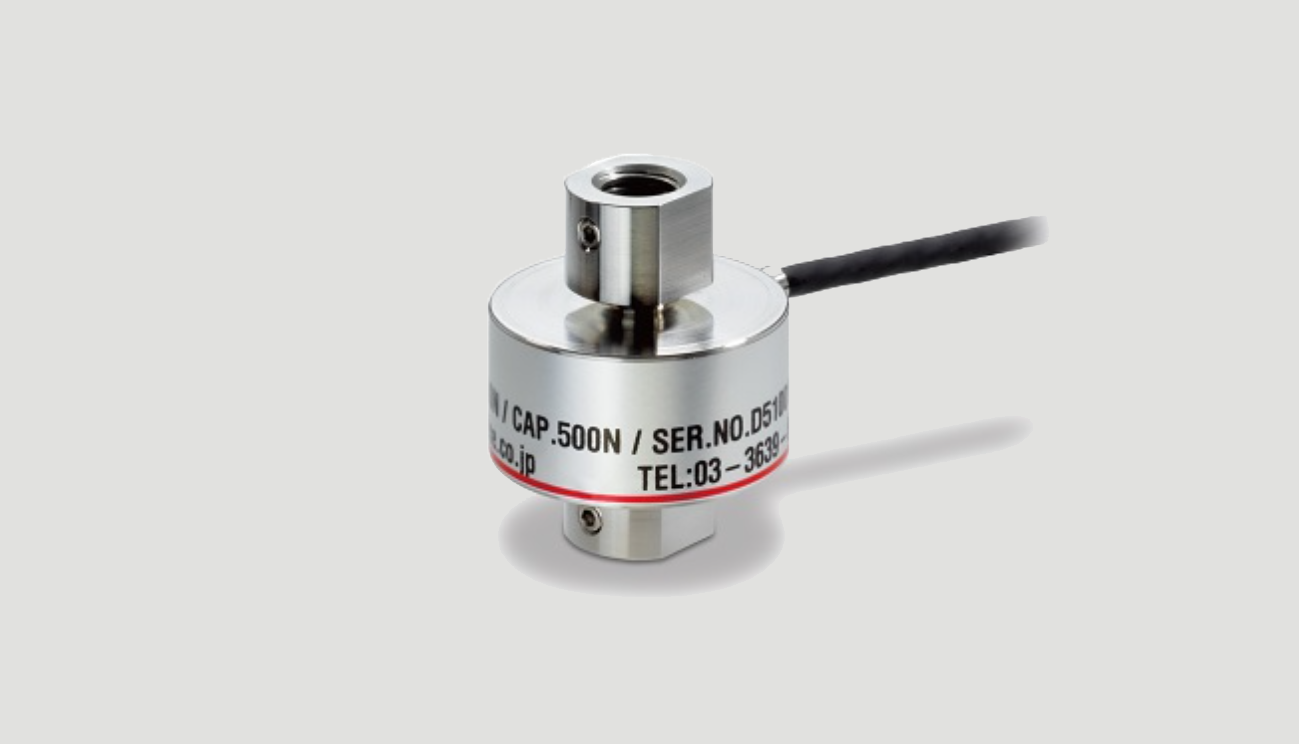

| Model | UNCLB-500N | UNCLB-1KN | UNCLB-2KN | UNCLB-5KN | |
| Rated capacity | 500 | 1k | 2k | 5k | N |
|---|---|---|---|---|---|
| Rated output | 0.5±10% | 1±10% | 1.5±10% | 2±0.5% | mV/V |
| Safe overload | 120 | 150 | %R.C. | ||
| Zero balance | ±10 | %R.O. | |||
| Non-linearity | 0.5 | 0.15 | %R.O. | ||
| Hysteresis | 0.5 | 0.15 | %R.O. | ||
| Repeatability | 0.3 | 0.1 | %R.O. | ||
| Compensated temperature range | -10 to +60 | ℃ | |||
| Safe temperature range | -20 to +70 | ℃ | |||
| Recommended excitation voltage | 0.5 | %R.O./10℃ | |||
| Temperature effect on span | 0.5 | %R.O./10℃ | |||
| Input resistance | Approx.350 | Ω | |||
| Maximum excitation voltage | Approx.350 | Ω | |||
| Recommended excitation voltage | 2.5 | 10 | V | ||
| Maximum excitation voltage | 6 | 15 | V | ||
| Insulation resistance(DC50V) | 1000 | MΩ | |||
| Cable | φ3 4-conductor color shield cable.Length 3m. End treatment 5-leads. | φ6 4-conductor color shield cable. Length 5m. End treatment 5-leads. | |||
| Cable color code | ＋EXC: Red＋SIG: White－EXC: Blue－SIG: BlackSHIELD: bare wire (500N, 1kN, 2kN) Yellow (5kN) | ||||
| Loadcell material | Stainless steel | ||||
| Deflection at rated | 500N：0.011KN：0.022KN：0.035KN：0.06 | mm | |||
| Natural frequency | 500N：161KN：162KN：195KN：10 | kHz | |||
| Weight | 500N：851KN：852KN：855KN：500 | g | |||
