Technical Information

Specifications

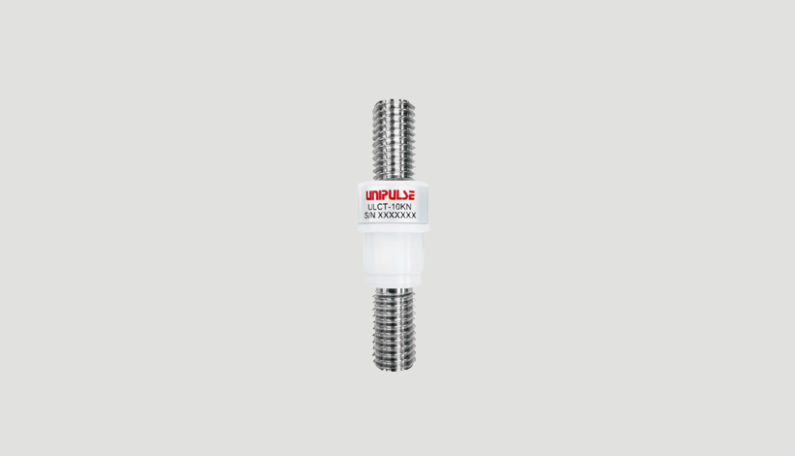

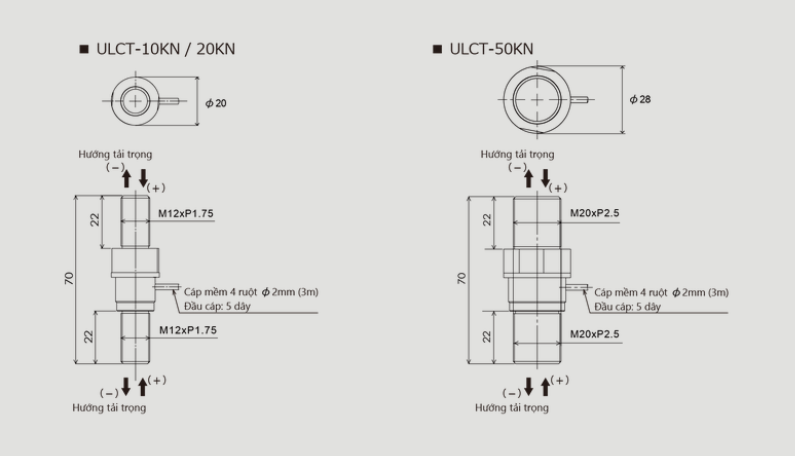

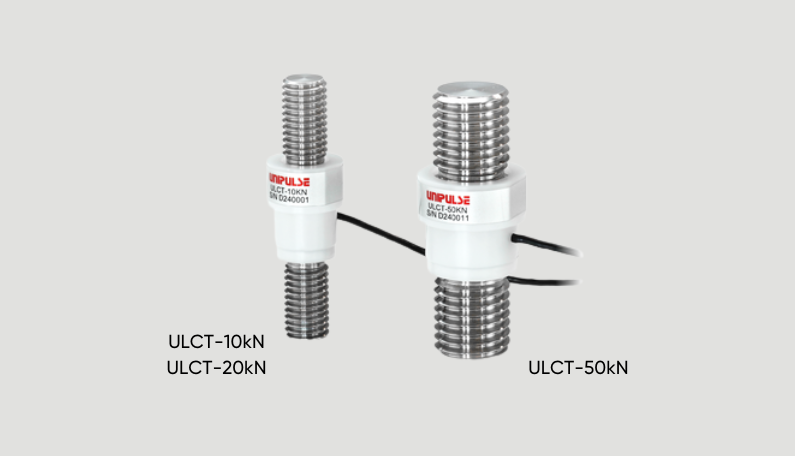

Model ULCT-10kN ULCT-20kN ULCT-50kN
Rated capacity 10 kN 20 kN 50 kN
Rated output Approx. 0.8 mV/V Approx. 1.7 mV/V Approx. 1.3 mV/V
Safe overload 200 % R.C. 150 % R.C. 200 % R.C.
Zero balance ± 10 % R.O.
Non-linearity 0.2 % R.O. or less
Hysteresis 0.2 % R.O. or less

Repeatability

0.1 % R.O. or less
Compensated temperature range -10 ~ +60 °C
Safe temperature range -20 ~ +70 °C
Temperature effect on zero 0.5 % R.O. / 10 °C or less
Temperature effect on span 0.5 % R.O. / 10 °C or less
Input resistance Approx. 1000 Ω
Output resistance Approx. 1000 Ω
Recommended excitation voltage 5 V
Maximum excitation voltage 7.5 V
Insultation resistance (DC50V) 1000MΩ or more
Cable

φ2 4-conductor flexible cable (3m)

Cable end: 5 wires

Loadcell material Special alloy steel
