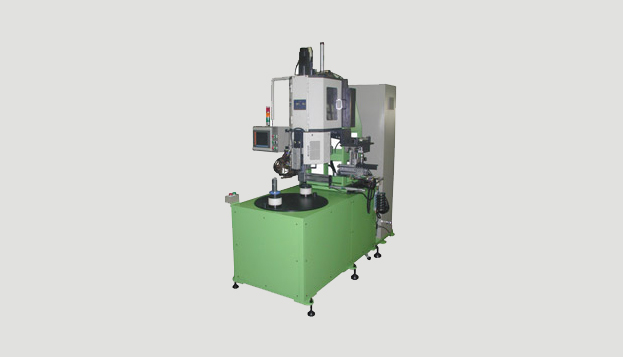

The machines are compactly designed and permit easy maintenance. When stator specifications are changed, only the replacement of one coil former is required and this can be quickly accomplished. Besides, this machine also has following advantages:
1. Synchronized winding-stripping mechanism enables any number of turns on only 30mm length of each step of the coil former to be obtained.
2. Index-table design makes it possible by winding and transfer tools changing simultaneously.
3. Parallel winding is possible with no wire damage. (optional)
4. Concentric winding can be achieved for 2 pole、4 pole、6 pole or 8 pole. 2 pole especially can produce outstanding effect.
| WIRE DIA. | Ø0.15 ~ Ø 1.0 |
| STATOR STACK HEIGHT | 20 ~ 120 mm |
| (R.P.M.) WINDING SPED |
3000 RPM MAX.
|
| DIRECTION OF ELYER ROTATION | CW, CCW. |
| CONCENTRIC COILS | MAX: 5 |
| EVERY STEP’S DISTANCE | 20mm MAX. |
| NUMBER OF POLES FOR INDEX |
SINGLE OR 3 PHASE
|
| MAX. NUMBER OF TURNS PER POLE | MAX. 999 |
| CONTROL METHOD |
MICROPROCESSOR CONTROLLER C/W LCD TOUCH PANEL
|
| DRIVE MOTOR |
7.5HP AC SERVO MOTOR
|
| PNEUMATIC POWER SUPPLY |
4KG /ｃ㎡ MIN
|
| WEIGHT |
about 2000 KGS
|
| POWER |
3 Ø , 220/380 V, 50/60 Hz , 12.5KVA
|
| DIMENSION |
1950(L)*970(W)*2300(H)mm
|
