Technical Information

Features

Air consumption: Max. 62%* reduction

(* In SMC conditions: Maximum reduction ratio within product specifications (at 0.7 MPa operating pressure and 0.2 MPa low pressure)).

Reduced air consumption due to lower pressure during production stoppages/equipment standby (Standby mode)

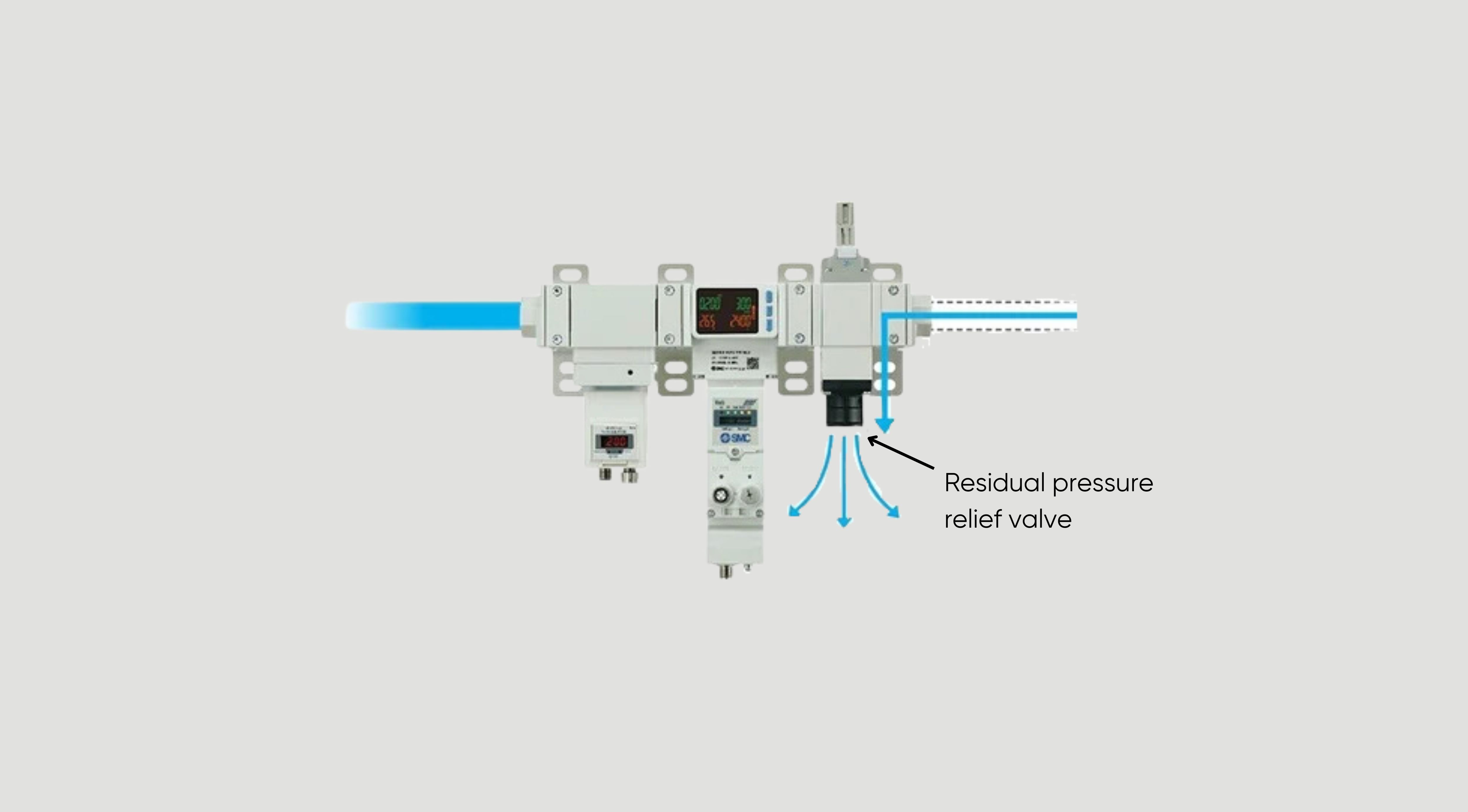

Reduce air consumption by shutting off valves depending on equipment shutdown conditions (Isolation mode)

Visualization of production equipment status

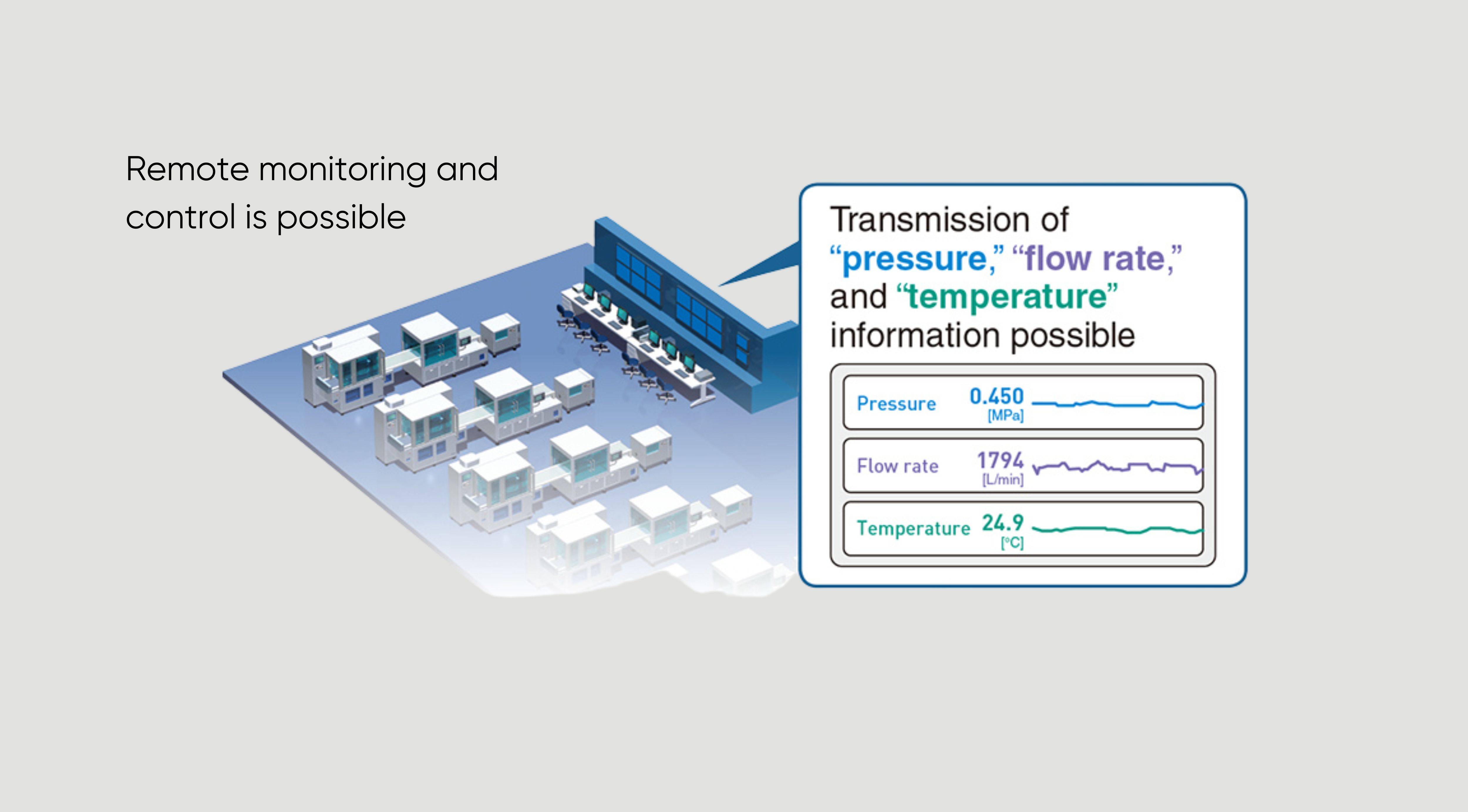

Remote monitoring and control is possible

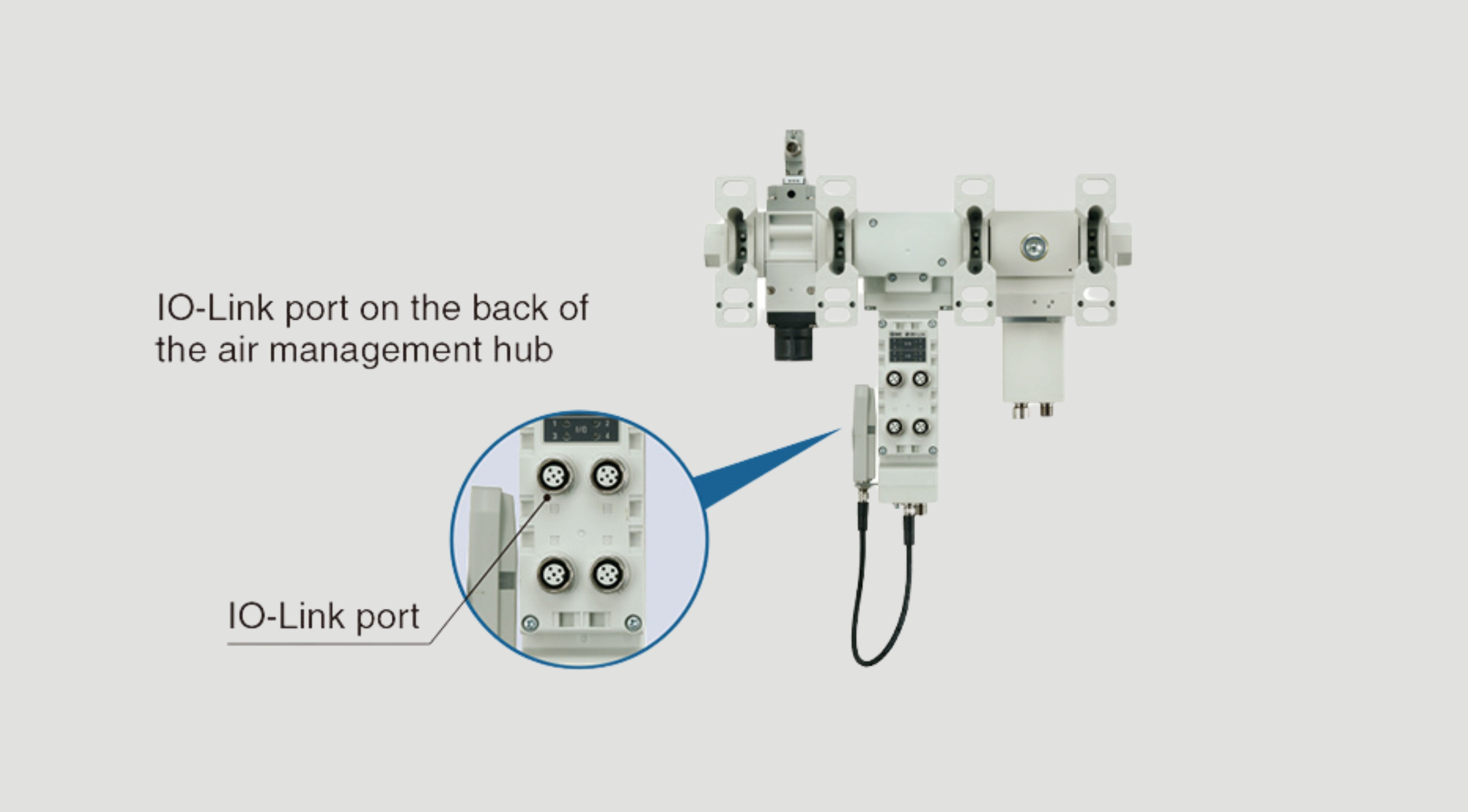

IO-Link compatible

Compatible with SMC wireless systems

Specifications

Series Size Port size Flow capacity [L/min] Communication protocol Output data
Electro-Pneumatic Regulator Type 25A-AMS20A/30A/40A/60A 20
30
40
60
1/8
1/4
3/8
1/2
3/4
1
5 - 500
10 - 1000
20 - 2000
40 - 4000
PROFINET
EtherNet/IP™
OPC UA
EtherCAT
Instantaneous flow
Accumulated flow
Pressure
Fluid temperature
Various sensor information transmitted via IO-Link
Diagnosis
Regulator Type
25A-AMS20B/30B/40B/60B
20
30
40
60
1/8
1/4
3/8
1/2
3/4
1
5 - 500
10 - 1000
20 - 2000
40 - 4000
PROFINET
EtherNet/IP™
OPC UA
EtherCAT
Instantaneous flow
Accumulated flow
Pressure
Fluid temperature
Various sensor information transmitted via IO-Link
Diagnosis

System Configuration
