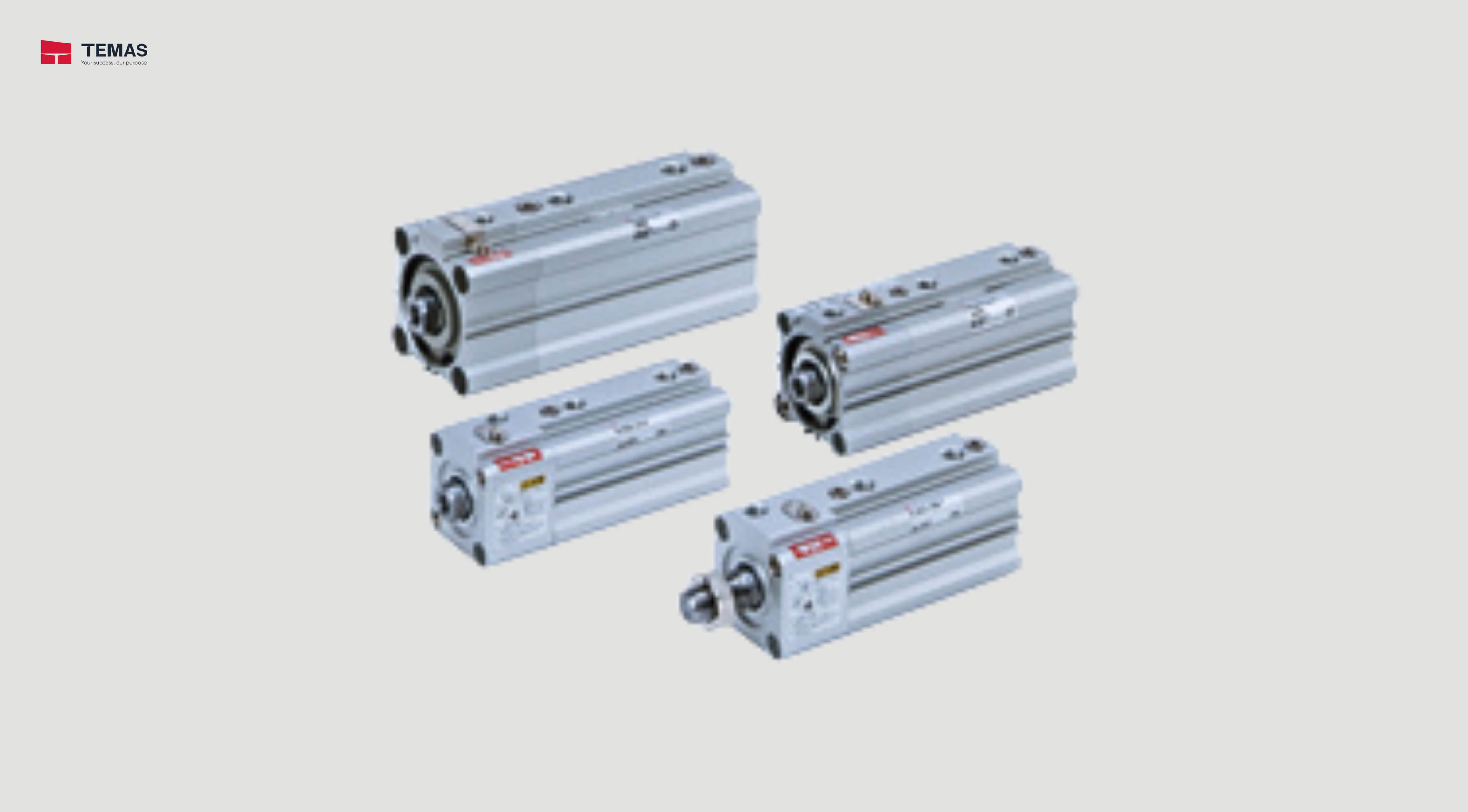

COMPACT CYLINDER WITH AIR CUSHION AND LOCK SMC RLQ, RDLQ

Compact Cylinder with Air Cushion and Lock SMC RLQ Series Bore size: ø32, ø40, ø50, ø63

Technical Information

 Specifications RLQ
 Bore size 32
 40
50 63
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature

Without auto switch: -10 to 70°C (No freezing)

With auto switch: -10 to 60°C (No freezing)
Lubricant Not required (Non-lube)
Stroke length tolerance +1.0 mm
Piston speed 50 to 500 mm/s
Port size (Rc, NPT, G) 1/8 1/4
