AIR CYLINDER SMC CJ2 SERIES

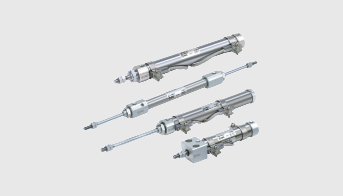

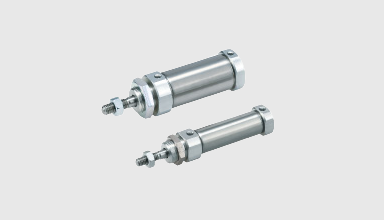

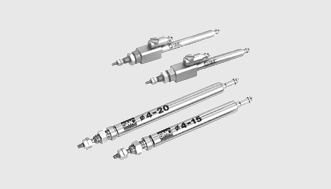

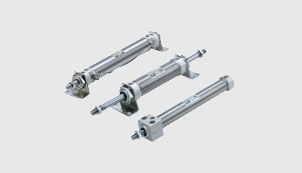

Series air cylinder CJ2/CDJ2

Model: CJ2/CDJ2/CJ2Z6-BYV03-10/CJ2B10-45SZ/CJ2B10-75Z

Technical Information



Bore size [mm] 6 10 16
Action  Double acting, Single rod
Fluid Ari
Proof pressure 1MPa
Maximum operating pressure 0.7 MPa
Minimum operating
pressure Rubber bumper		 0.12MPa 0.06MPa
Minimum operating
pressure Air cushion		 0.1MPa
Ambient and fluid temperature

Without auto switch: –10°C to 70°C (No freezing) With auto switch: –10°C to 60°C
Cushion

Rubber bumper
Lubrication Not required (Non-lube)
Piston speed rubber bumper 50 to 750 mm/s
Piston speed air cushion - 50 to 1000 mm/s
Allowable kinetic
energy rubber bumper		 0.012J 0.035J 0.090J
Allowable kinetic
energy air cushion
(Effective cushion length)		 - 0.07J (9.4mm) 0.18J (9.4mm)
Stroke length tolerance +1.0 0
