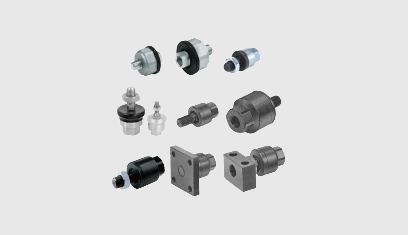

FLOATING JOINT SMC JC SERIES

Standard/compact dynamic coupling

Technical Information

Mode Applicable cylinder bore size (mm) Applicable cylinder nominal thread size Maximum operating tensile and compressive force (N Allowable eccentricity (Umm) Rotating angle
Standard/Thread nominal size
JC20-8-125 20 M8X1.25 300 0.5 ±5°
JC30-10-125 25/32 M10X125 800 0.5 ±5°
JC40-14-150 40 M14X1.5 1250 0.75 ±5°
JC63-18-150 50/63 M18X1.5 3100 1 ±5°
Semi-standard/Thread nominal size
JC20-8-100 20 M8 x 1 300 0.5 ±5°
JC25-10-150 25 M10 x 1.5 800 0.5 ±5°
JC32-10-100 32 M10 x 1 800 0.5 ±5°
JC40-12-125 32/40 M12 x 1.25 1250 0.75 ±5°
JC40-12-150 40 M12 x 1.5 1250 0.75 ±5°
JC40-12-175 32/40 M12 x 1.75 1250 0.75 ±5°
JC50-16-150 50 M16 x 1.5 3100 1 ±5°
JC63-16-200 50/63 M16 x 2 3100 1 ±5°
