Compact and economical PCB cutting solution

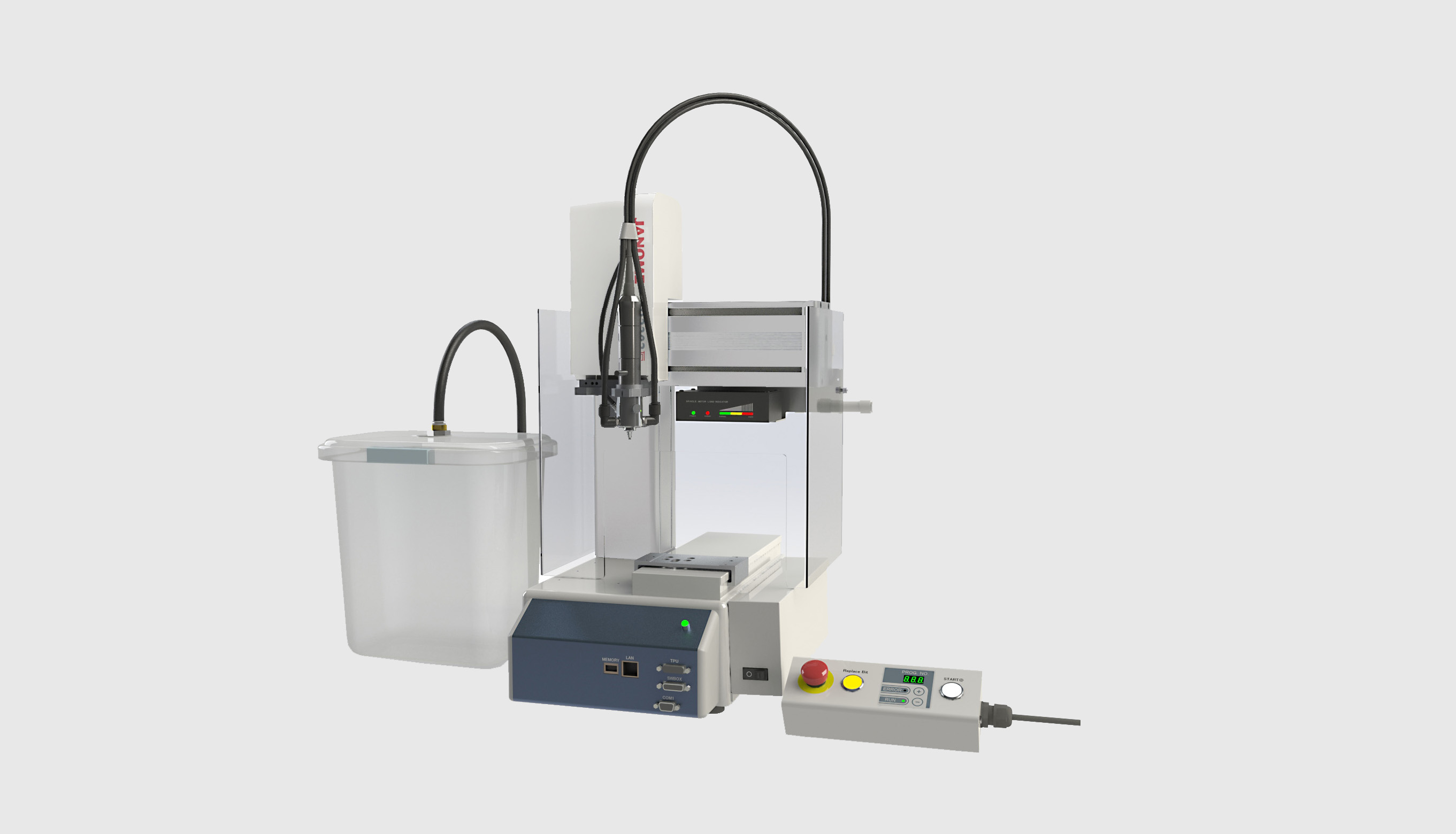

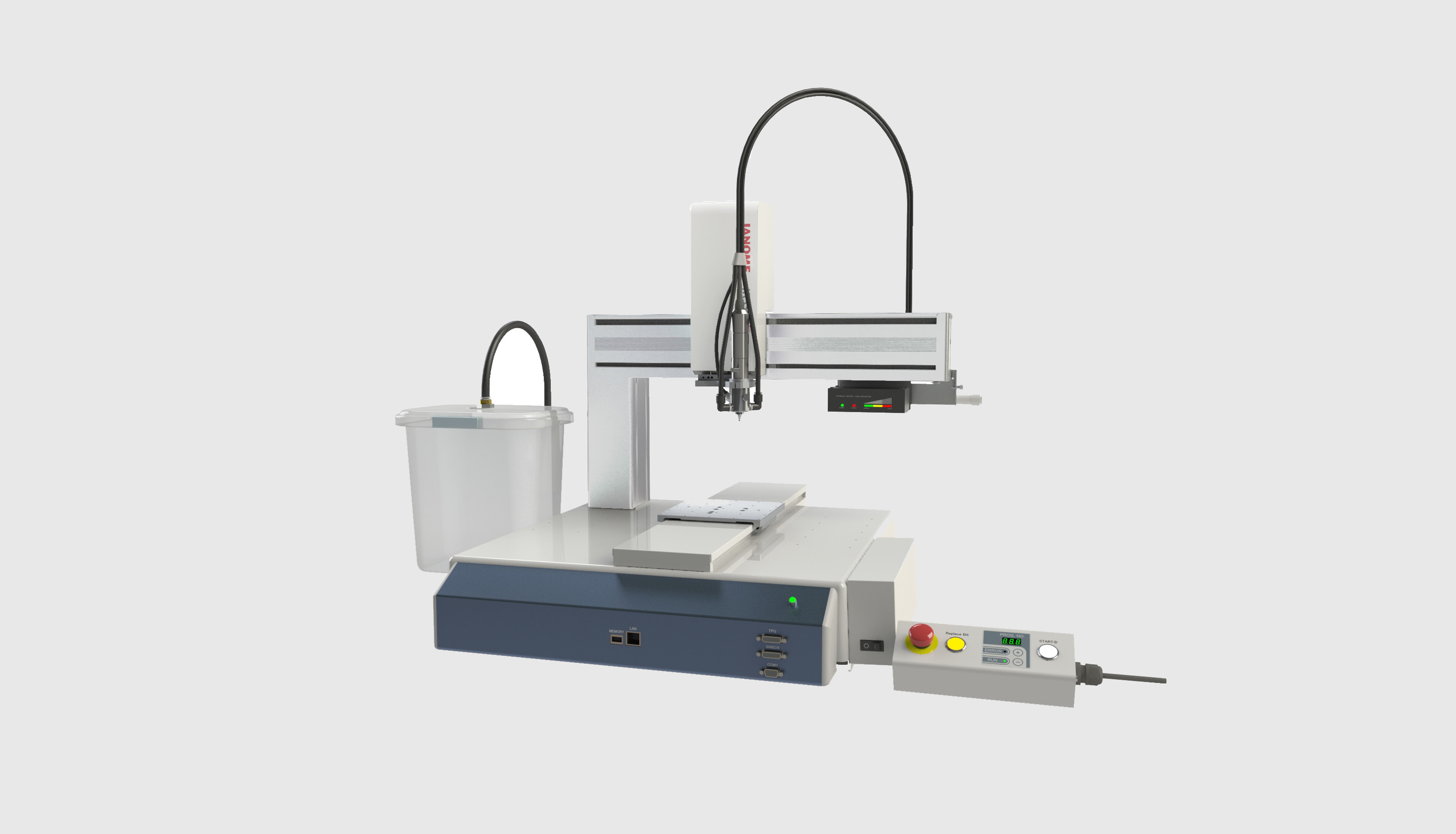

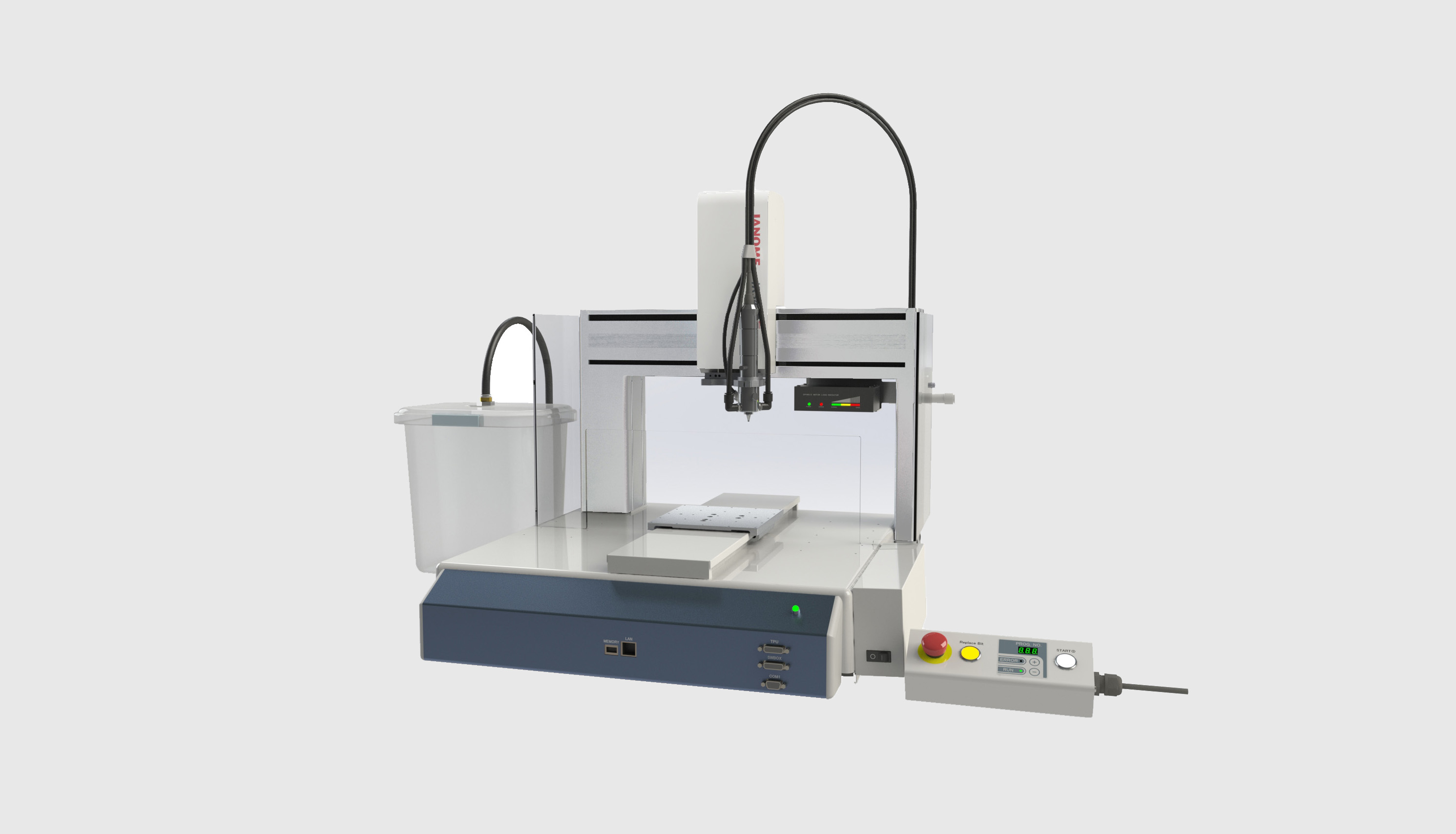

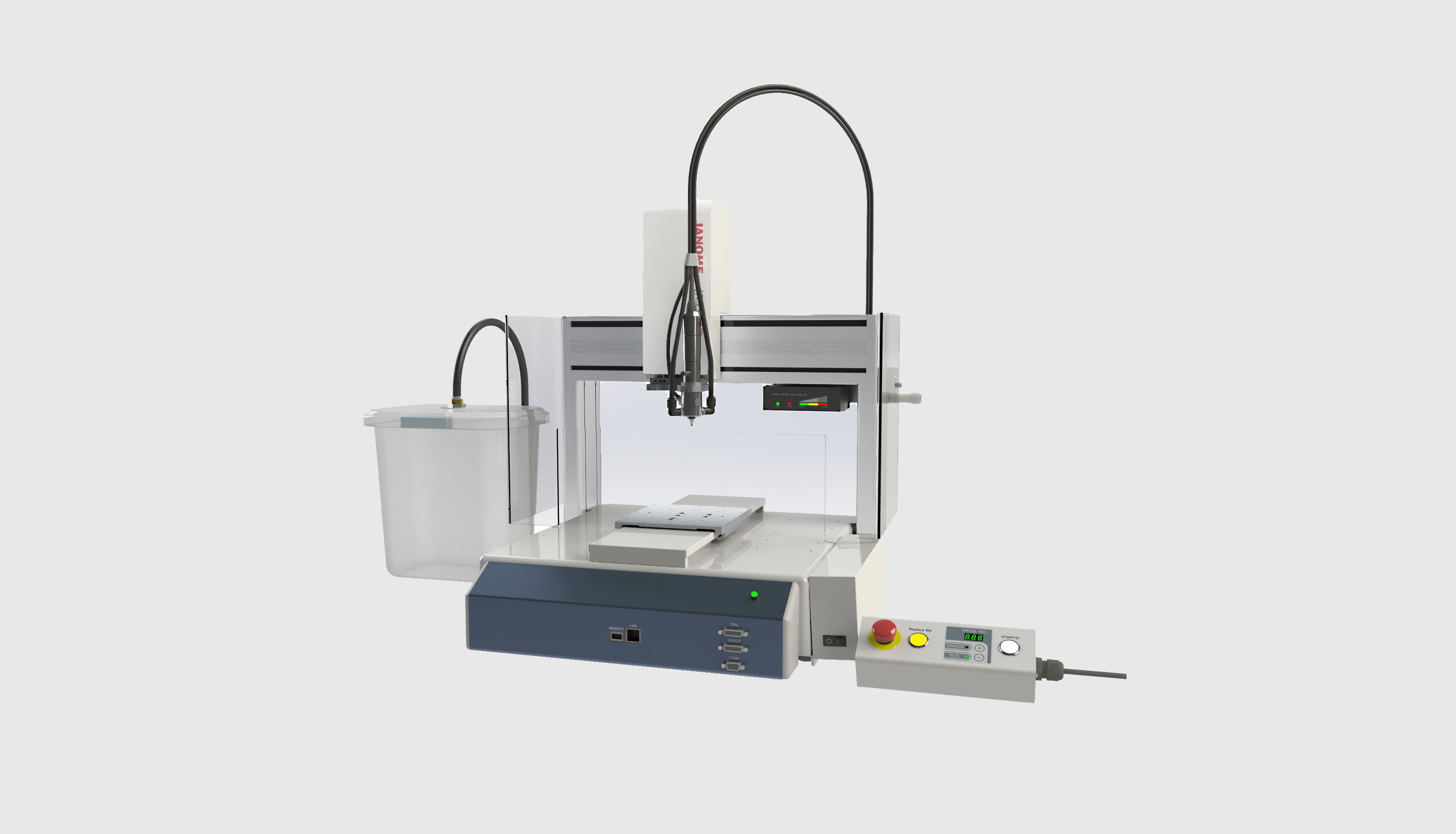

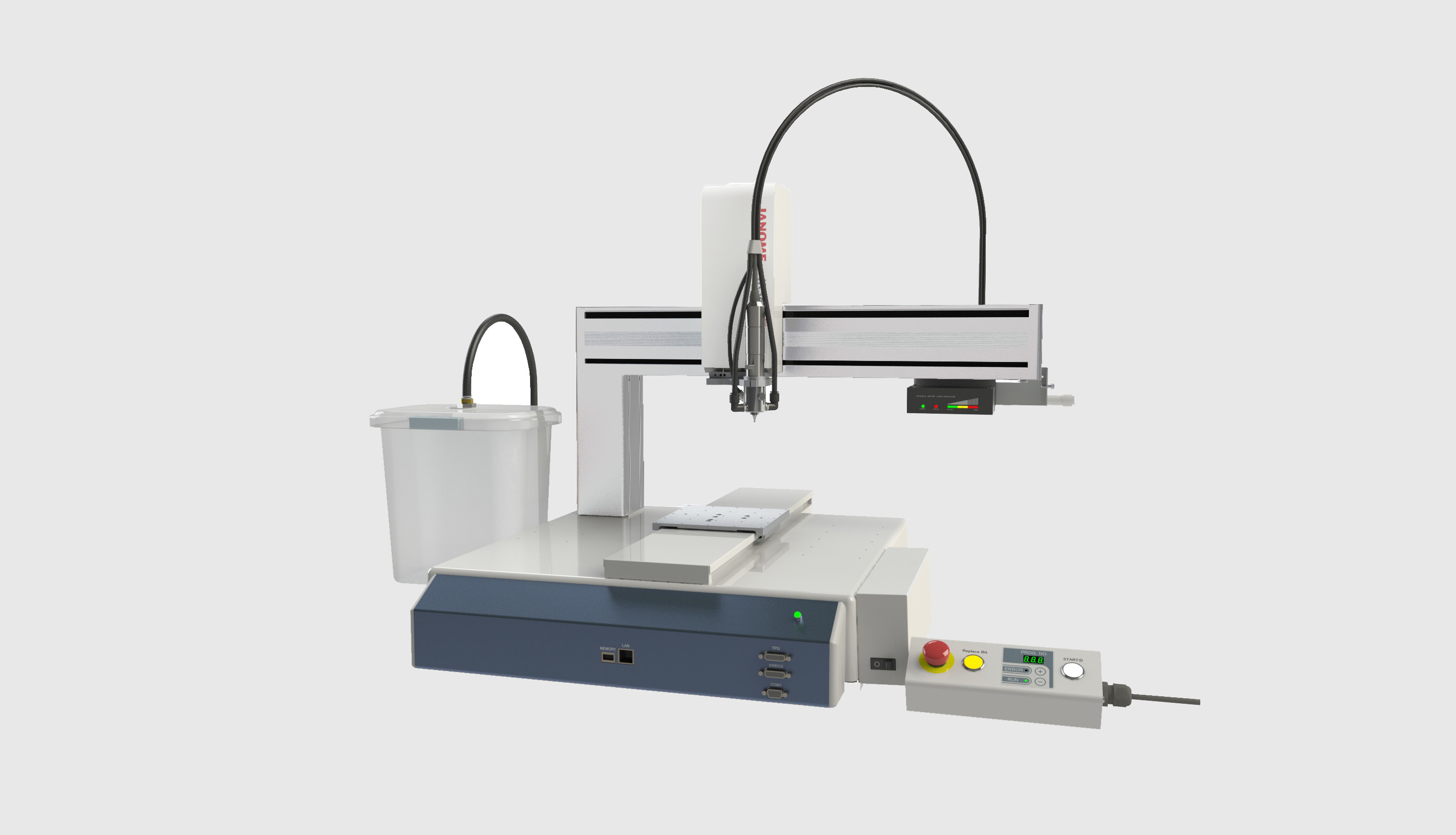

Model: JR3203ERT, JR3303ERT, JR3303EBV, JR3403ERT, JR3503ERT, JR3603ERT
Model | JR3203ERT | JR3303ERT (JR3303EBV) |
JR3403ERT | JR3503ERT *5 |
JR3603ERT *5 |
|
Depaneling Range Limit | X & Y Axes | 195×190mm | 295×315mm | 395×395mm | 505×505mm | 505×615mm |
Z Axis | 35mm | 90mm*6 | 82mm | 95mm | 95mm | |
Max. PTP Speed*1 | X & Y Axes | 700mm/sec | 900mm/sec (800mm/sec) |
900mm/sec | ||
Z Axis | 250mm/sec | 400mm/sec | ||||
Max. CP Speed*1 | XYZ Combined | 600mm/sec | 850mm/sec | |||
Cutting Trajectory Precision | 0.2mm(nominal standard) | |||||
Repeatability*2 | X Axis | ±0.006mm | ±0.007mm | ±0.008mm | ±0.008mm | |
Y Axis | ±0.01mm | |||||
Z Axis | ±0.008mm | |||||
Applicable Board Materials | Glass Epoxy, Paper Phenol, etc. (maximum board thickness 1.6mm) | |||||
Power Source | AC100~120V±10% / AC200~240V±10% (single phase) | |||||
Power Consumption | 250W | |||||
Supplied Air Pressure*3 | 0.5~1.0Mpa (5~10kgf/cm²) *Dry Air | |||||
Air Consumption Volume*4 | 200Nℓ/min or more | |||||
Spindle Motor | Rated Rotating Speed:40,000r/min |
*1 Maximum speed can vary depending upon conditions.
*2 Repeatability was measured at a constant temperature for the robot unit only and does not represent a guarantee of absolute precision.
*3 Be sure to use dry air. Supplying air containing moisture or oil can damage the device.
*4 If the air volume is low, the vacuum will lose pressure, thereby reducing its dust collection efficiency.
*5 The safety cover is optional for the JR3503ERT . Also, the JR3603 does not come with a safety cover. Please prepare a safety cover at the user side.
*6 The workpiece mounting height is fixed with the JR3303EBV, therefore the Z-Axis moving range is not set.
