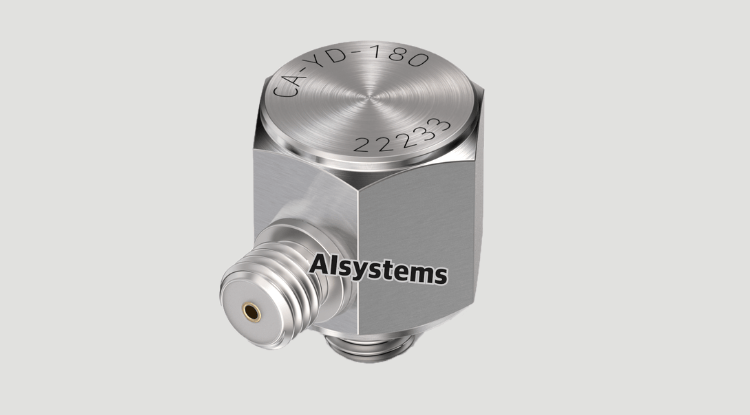

AI-CA-YD-180 ACCELERATION SENSOR AI SYSTEM

Industrial acceleration sensor used for noise and vibration inspection

Model: AI-CA-YD-180

Technical Information

  AI-CA-YD-180
Type Accelerometer IEPE type
Sensitivity 1 ~ 5 mV/g
Measurement range 1,000 ~ 10,000 g
Max Transverse Sensitivity ≤ 5%
Freq. Resonance (Freq. Response) 1 ~ 12 kHz
Mounting Resonant Freq. 45 kHz
Operating Temp. Range -40℃ ~ +120 ℃
Transient Temp. Response 10 mg/ ℃
Magnetic Sensitivity 1.5 g/T
Case Isolation < 100 ohm
Mounting Resonance Freq. M5
Material Stainless steel
Output 10-32 UNF Top
Weight 8 g
